SOL 12V CONT | Series: Plastic Body Continuous Duty SPST

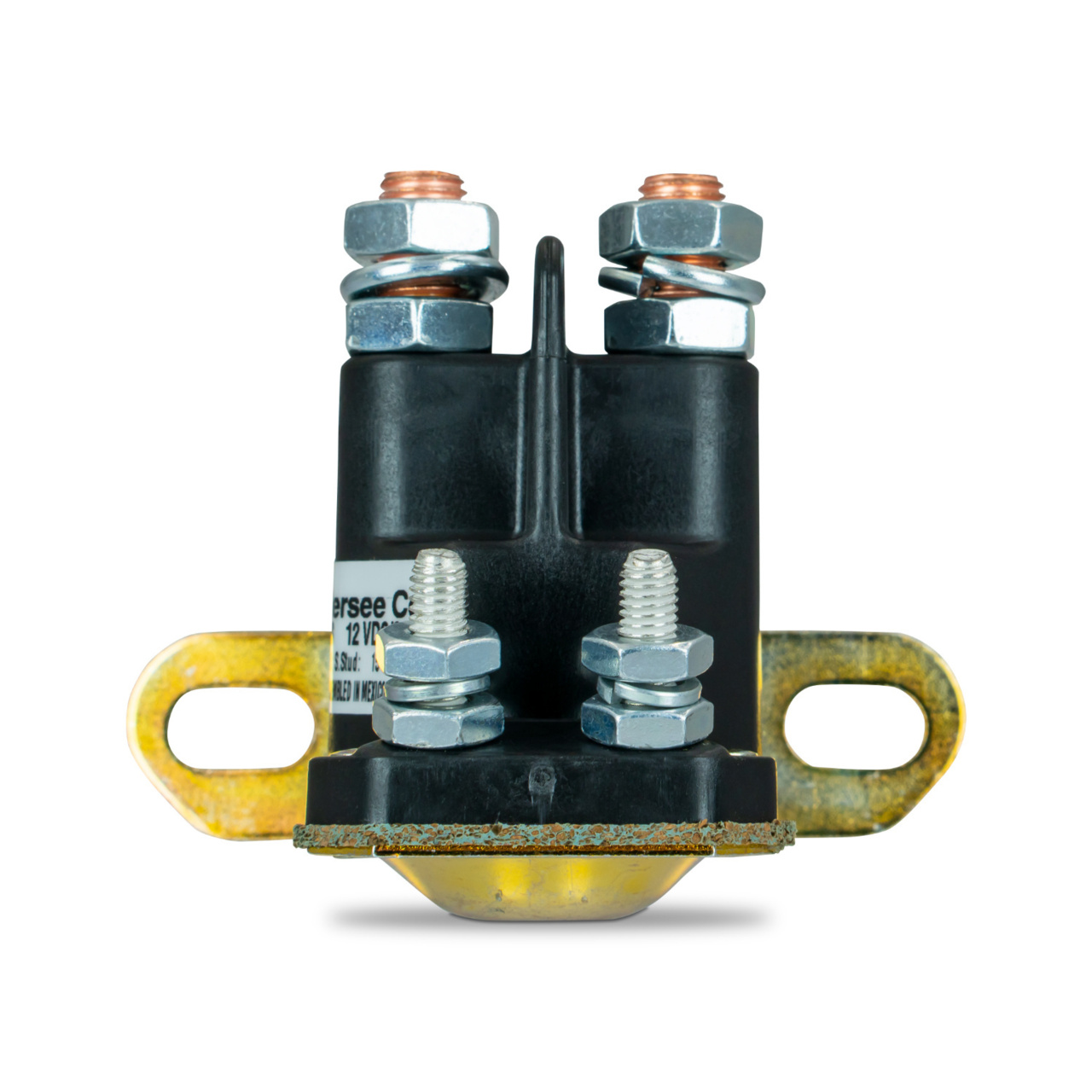

Ideal for starting small engines in vehicles like lawn tractors, golf carts, and sweepers, this Plastic-Body Continuous-Duty SPST Series Starter Solenoid Relay (24612) features a 12 V insulated coil and two 10-32 stud coil terminals.
The Cole Hersee solenoid relay has a 100 A continuous current rating, silver contacts, and an L-style metal bracket.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 100 |
Circuitry | SPST |
Contacts | Silver |
Normal Position | Normally Open |
Housing | Plastic |
Coil Type | Solenoid |
Intermittent Time | 5 sec On - 5 min Off |
- Continuous current rating of 100 A and an inrush rating of 400 A @ 5 seconds ON, 5 minutes OFF, maximum of 20 seconds ON
- 12 V coil rating and 14 V maximum operating voltage
- Coil impedance of 18.6 ohms
- Silver contacts
- Insulated coil with two 10-32 stud terminals
- L-style metal bracket
24612 Applications
- Small Engines
- Lawn Tractors
- Golf Carts
- Sweepers
