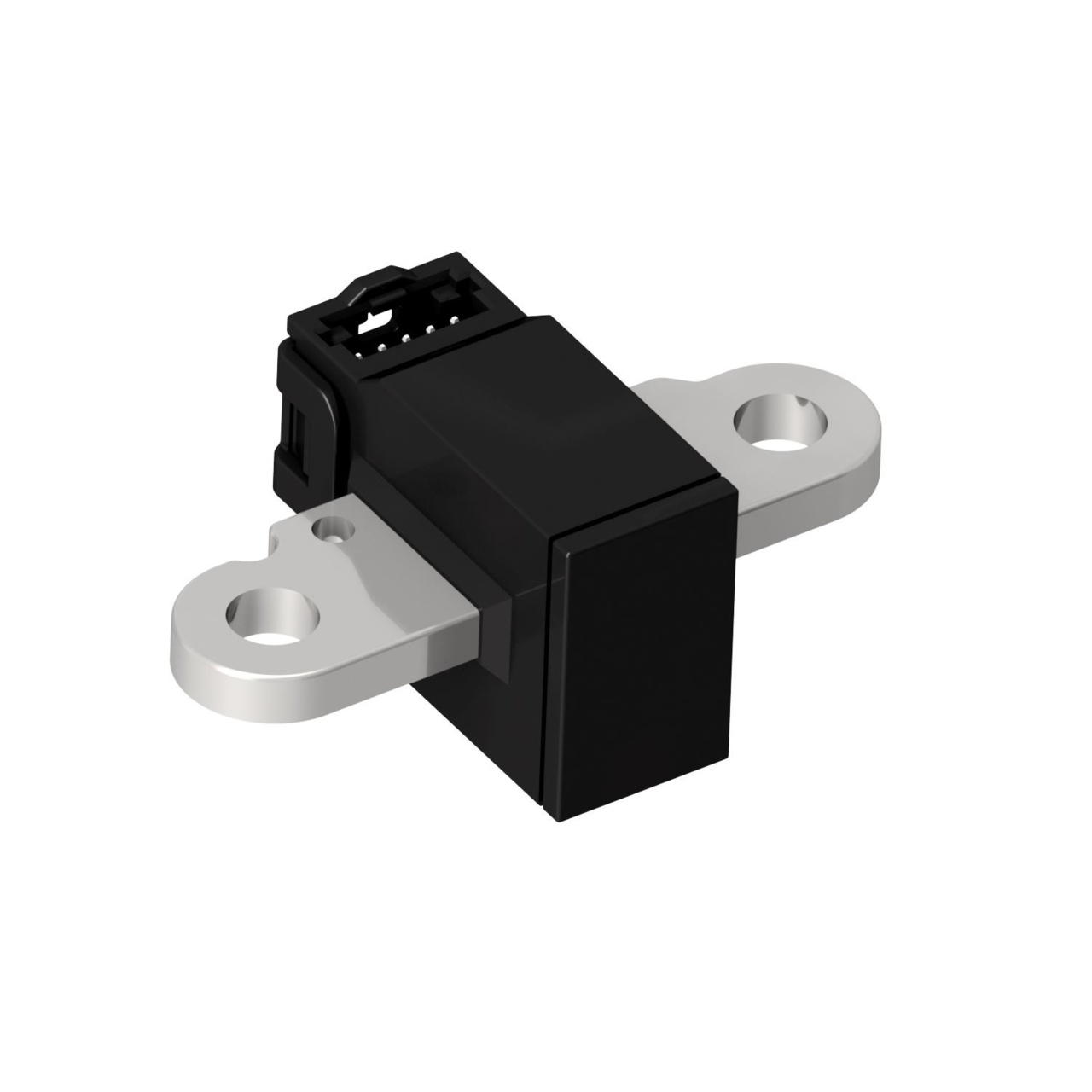

Littelfuse CH1B02xB current sensor is an open-loop Hall Effect device which provides a ratio metric output signal proportional to the magnetic flux density generated by a C-core concentrator. The sensor is offered in three configurations: standard connector, standard connector with cable retainer, and with CPA equipped connector.
- Analog ratiometric output
- +5V DC unipolar power supply
- Operating temp. range: -40°C ... +125°C
- Open-loop Hall effect
- Single or dual channel output
- ASIL-QM
- Current measurement: up to ±1500A
- Single or dual channel output
- Current measurement up to ±1500 A
- Low thermal offset drift
- Low thermal sensitivity drift
- Non-intrusive solution
CH1B02xB Applications
- Battery Management System
- DC/DC Converter
- Power distribution unit
- DC Link
