24942-00-05

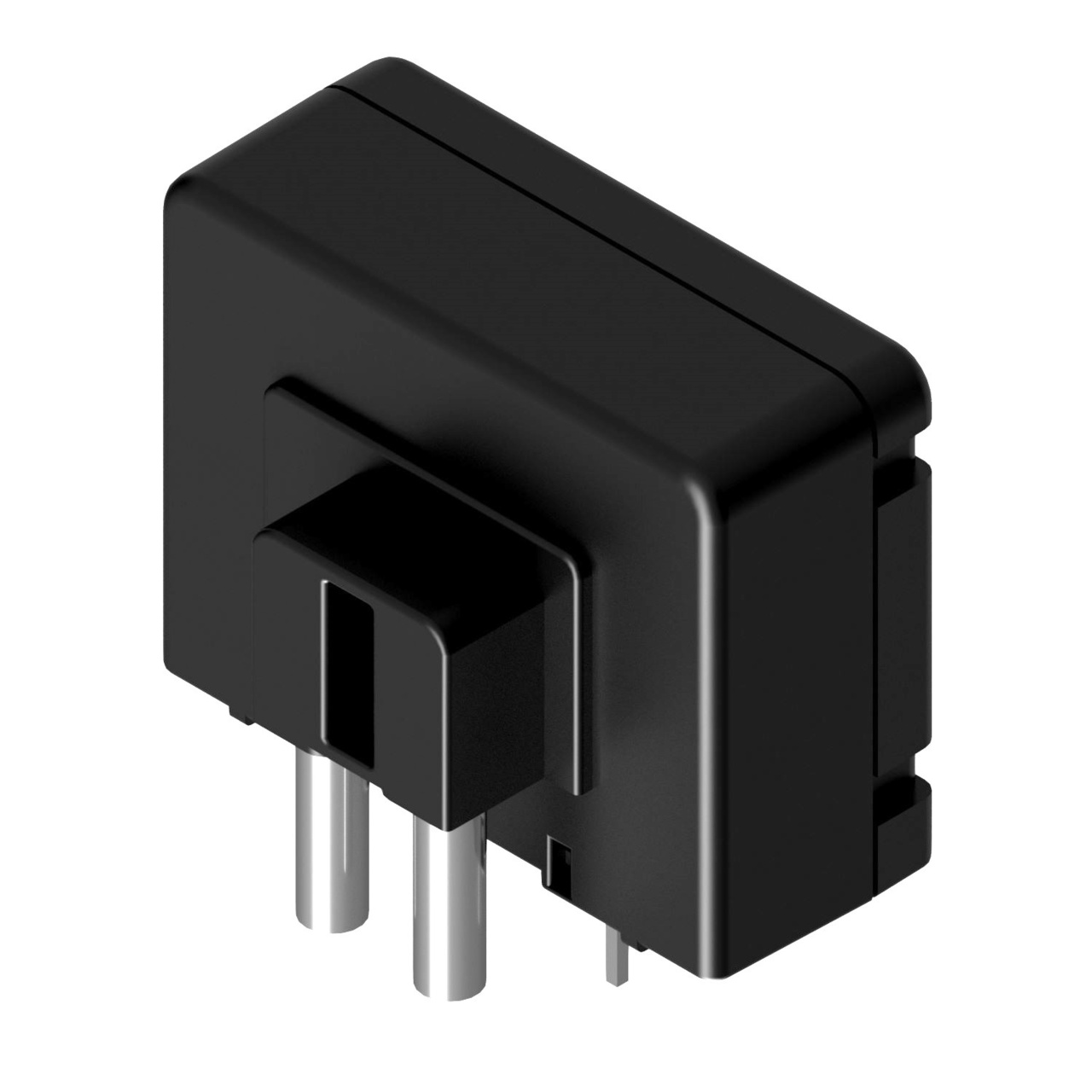

CC1P031N-S0300A | Series: CC1P031NThe Littelfuse CC1P03xN family are high-performance current sensors based on Closed Loop technology. The high linear output characteristics and high accuracy across the operating temperature range plus the small package size and PCB mounting capability make it an excellent solution for a wide range of applications. Open aperture or integrated current jumper versions are available.
| Property | Value |
|---|---|
Measurement Range (max.) | 300 |
Power Supply Voltage | +5V |
Output Signal Type | Analog |
Output Channels | Single |
Temperature Range | -40°C…+85°C |
Accuracy (over T° range) | ±0.8 |
ASIL | QM |
Mounting | PCB |
Mass (kg) | 70 |
- Closed-loop multi-range sensor
- Integrated primary conductors
- Wide measuring range
- Voltage Output
- Single power supply
- Excellent accuracy
- Very low offset current
- Short response time
- Wide frequency bandwidth
24942-00-05 Applications
- Solar inverters
- AC variable speed drives
- Servo motor drives
- Uninterruptable power supplies
- Switched mode power supplies
- Battery supplied applications
