24947-00-02

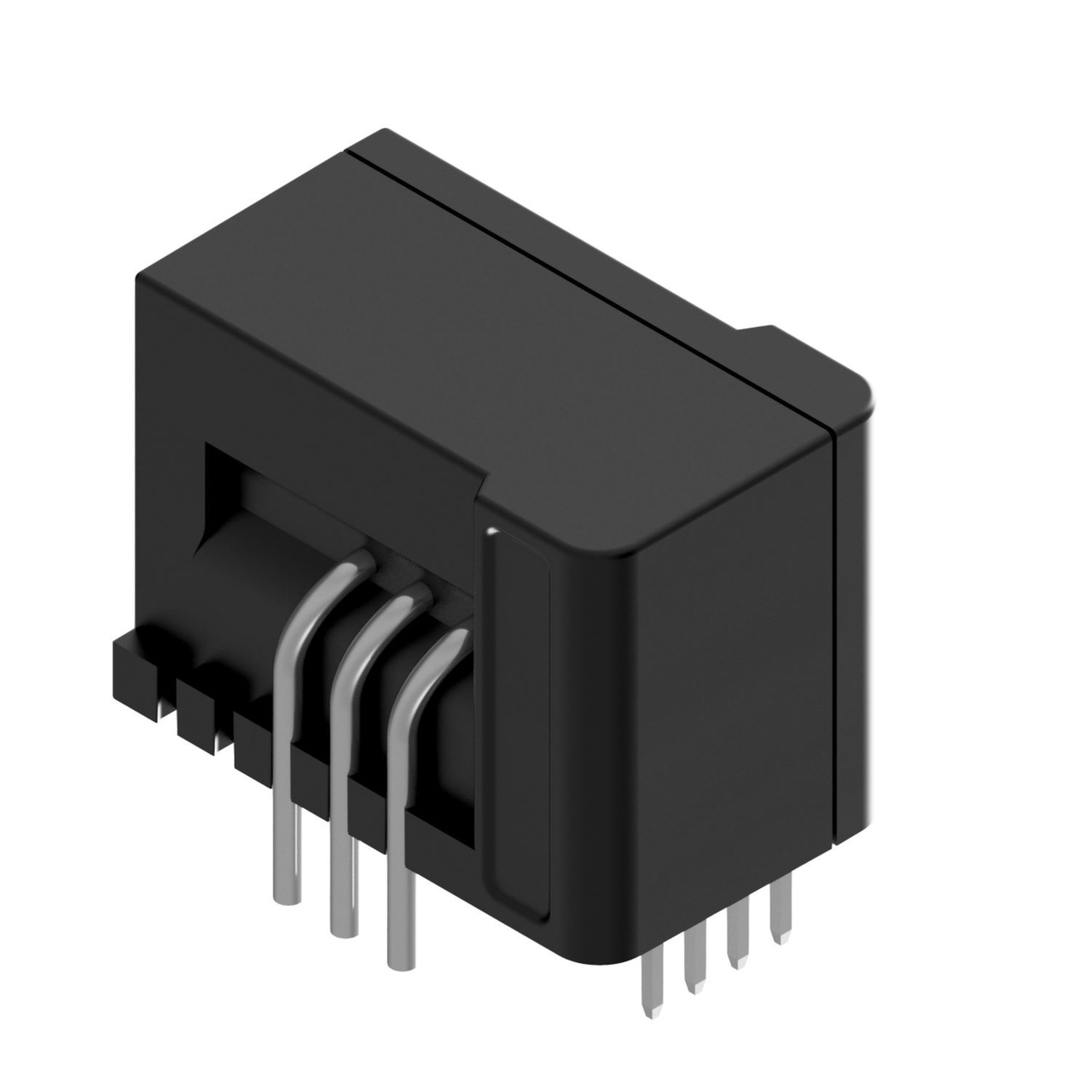

Current sensor CF1P021N-S0050A | Series: CF1P021NThe Littelfuse CF1P02xN family of high-performance current sensors are based on Closed Loop Fluxgate technology. The high linear output characteristics and high accuracy across the operating temperature range plus the small package size and PCB mounting capability make them an excellent solution for a wide range of applications.
| Property | Value |
|---|---|
Measurement Range (max.) | 50 |
Power Supply Voltage | +5V |
Output Signal Type | Analog |
Output Channels | Single |
Temperature Range | -40°C…+105°C |
Accuracy (over T° range) | ±0.8, ±1.1, ±1.3 |
ASIL | QM |
Mounting | PCB |
Mass (kg) | 7.8 |
- Integrated primary conductors
- Wide measuring range
- Voltage Output
- Single power supply
- Excellent accuracy
- Very low offset current
- Wide frequency bandwidth
24947-00-02 Applications
- Solar inverters
- Static converters - DC motor drives
- AC variable speed drives
- Servo motor drives
- Uninterruptable power supplies (UPS)
- Switched mode power supplies (SMPS)
- Battery supplied applications
24947-00-02 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 24947-00-02 | Current sensor CF1P021N-S0050A | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
