24948-00-01

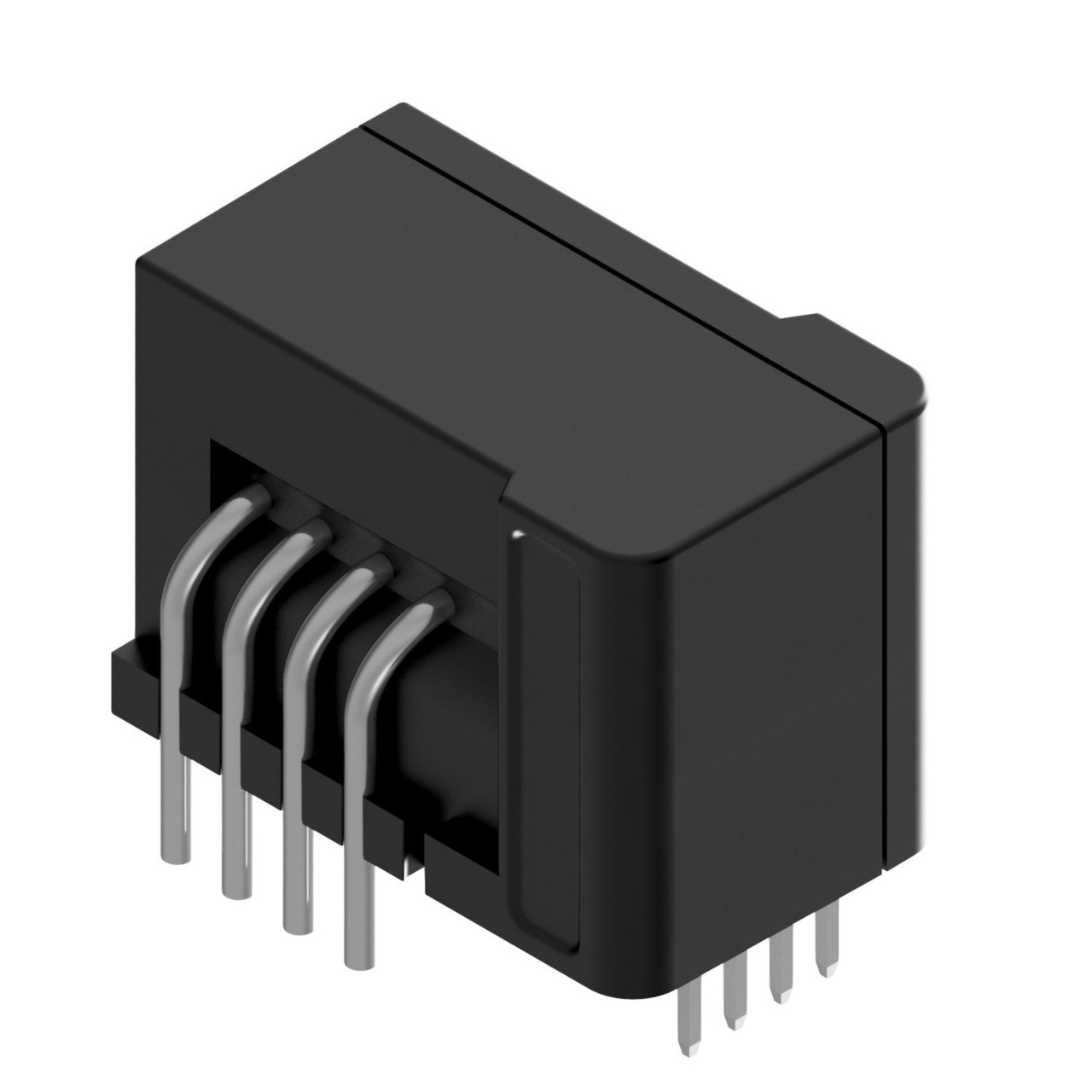

Current sensor CF1P022N-S0025A | Series: CF1P022NThe Littelfuse CF1P02xN family of high-performance current
sensors are based on Closed Loop Fluxgate technology.
The high linear output characteristics and high accuracy
across the operating temperature range plus the small
package size and PCB mounting capability make them an
excellent solution for a wide range of applications.
| Property | Value |
|---|---|
Measurement Range (max.) | 25 |
Power Supply Voltage | +5V |
Output Signal Type | Analog |
Output Channels | Single |
Temperature Range | -40°C…+105°C |
Accuracy (over T° range) | ±0.8, ±1.15, ±1.25 |
ASIL | QM |
Mounting | PCB |
Mass (kg) | 8.16 |
- Integrated primary conductors
- Wide measuring range
- Voltage Output
- Single power supply
- Excellent accuracy
- Very low offset current
- Wide frequency bandwidth
24948-00-01 Applications
- Solar inverters
- Static converters - DC motor drives
- AC variable speed drives
- Servo motor drives
- Uninterruptable power supplies (UPS)
- Switched mode power supplies (SMPS)
- Battery supplied applications
24948-00-01 Resources
