24940-00-02

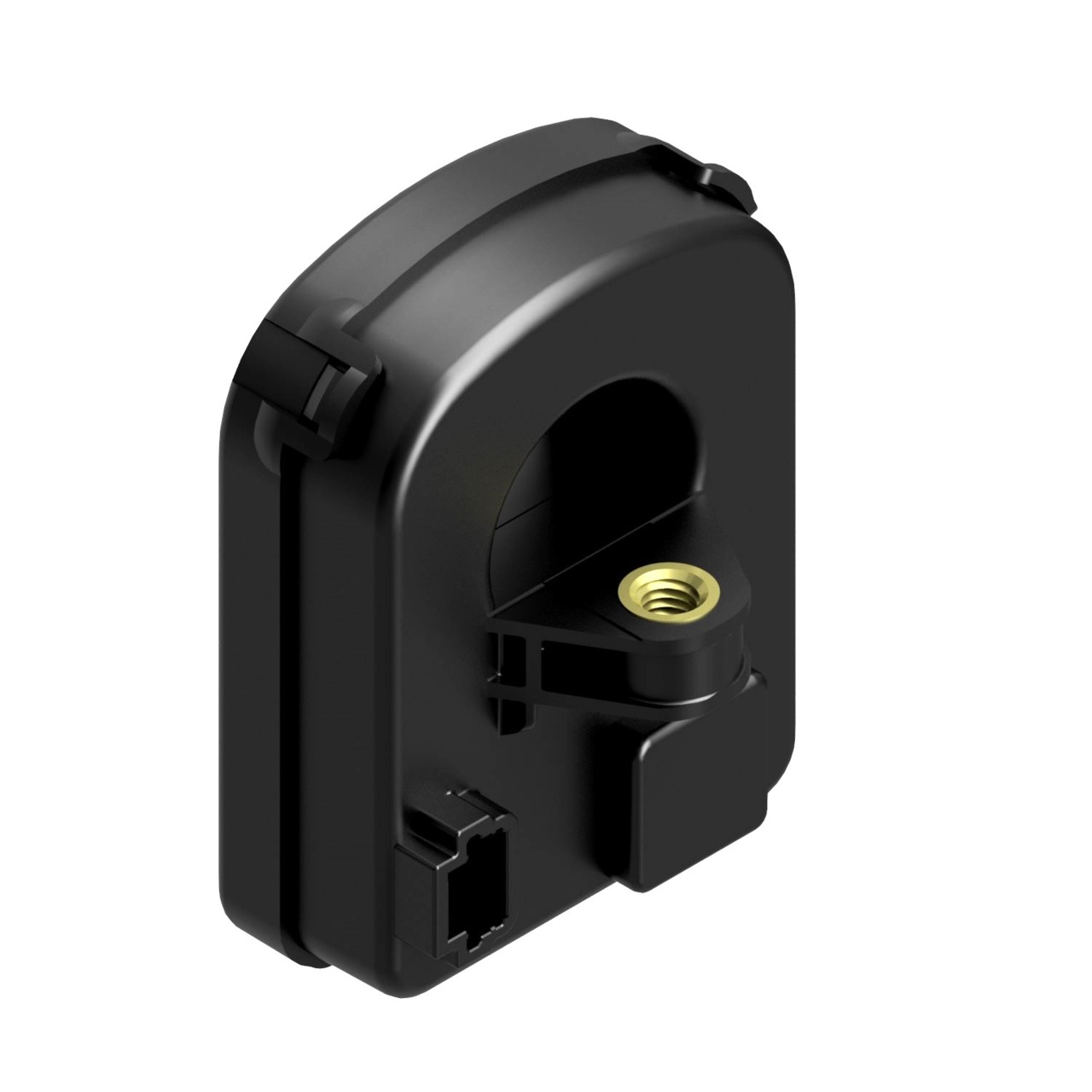

Current sensor CF1S011N-S1500C | Series: CF1S011NThe Littelfuse CF1S01xN current sensors are Fluxgate technology-based devices offering a high accuracy, very low offset current measurement via CAN communication interface. The construction provides galvanic separation between the primary circuit (HV) and the secondary circuit. Available as 12V or 24V power supply versions.
| Property | Value |
|---|---|
Measurement Range (max.) | 1500 |
Power Supply Voltage | 24 |
Output Signal Type | CAN |
Output Channels | Single |
Temperature Range | -40°C…+85°C |
Accuracy (over T° range) | ±0.5 |
ASIL | QM |
Mounting | Standalone |
Mass (kg) | 90 |
- Closed-loop Fluxgate
- CAN output
- Configurable CAN ID
- Single unipolar power supply
- Excellent accuracy
- Very low offset current
- Full galvanic isolation
- Busbar mounting (M6)
24940-00-02 Applications
- Battery Management Systems
- HV battery pack
- SoC / SoF / SoH calculation
- Lead-acid batteries
24940-00-02 Resources
