24944-00-03

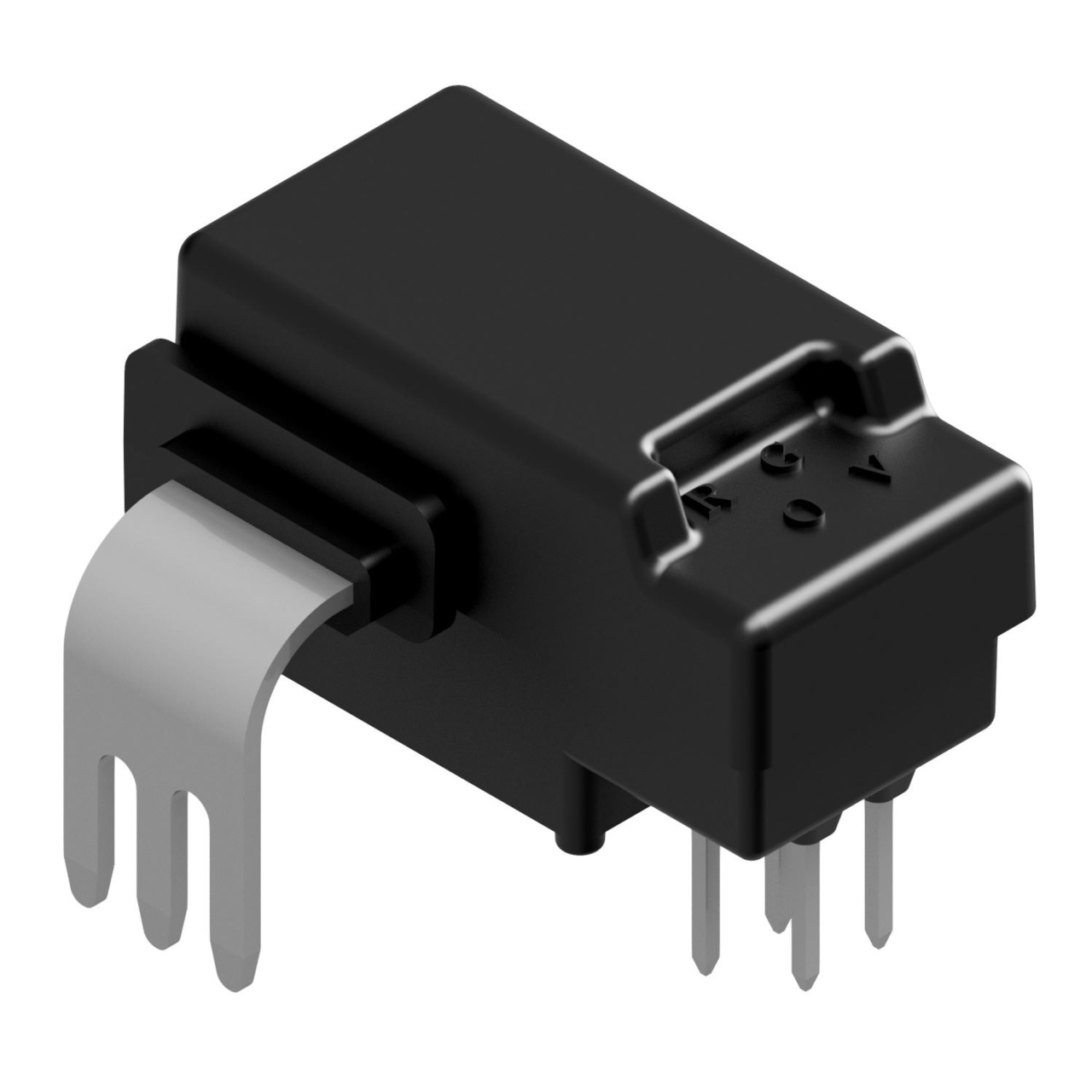

Current sensor CH1P050N-S0040A | Series: CH1P050NThe Littelfuse CH1P050N current sensor is an Open-loop Hall effect current sensor which can measure AC, DC, or pulsed currents with galvanic separation between primary and secondary circuits. Multiple primary current ranges make it suitable for a wide range of applications.
| Property | Value |
|---|---|
Measurement Range (max.) | 40 |
Power Supply Voltage | +5V |
Output Signal Type | Analog |
Output Channels | Single |
Temperature Range | -40°C…+105°C |
Accuracy (over T° range) | ±1, ±2.7, ±3 |
ASIL | QM |
Mounting | PCB |
Mass (kg) | 5 |
- Ultra-small packaging
- Single unipolar power supply
- Reference Voltage pin
- PCB mounting
- Low temperature coefficient
- High external field immunity
- Low insertion losses
- Programmable analog output
- Integration frequency filter
- Three measuring range versions
24944-00-03 Applications
- Solar inverters
- Static converters-DC motor drives
- Uninterruptable power supplies
- Switched mode power supplies
- Battery supplied applications
- Shunt replacement solution
24944-00-03 Resources
