90148

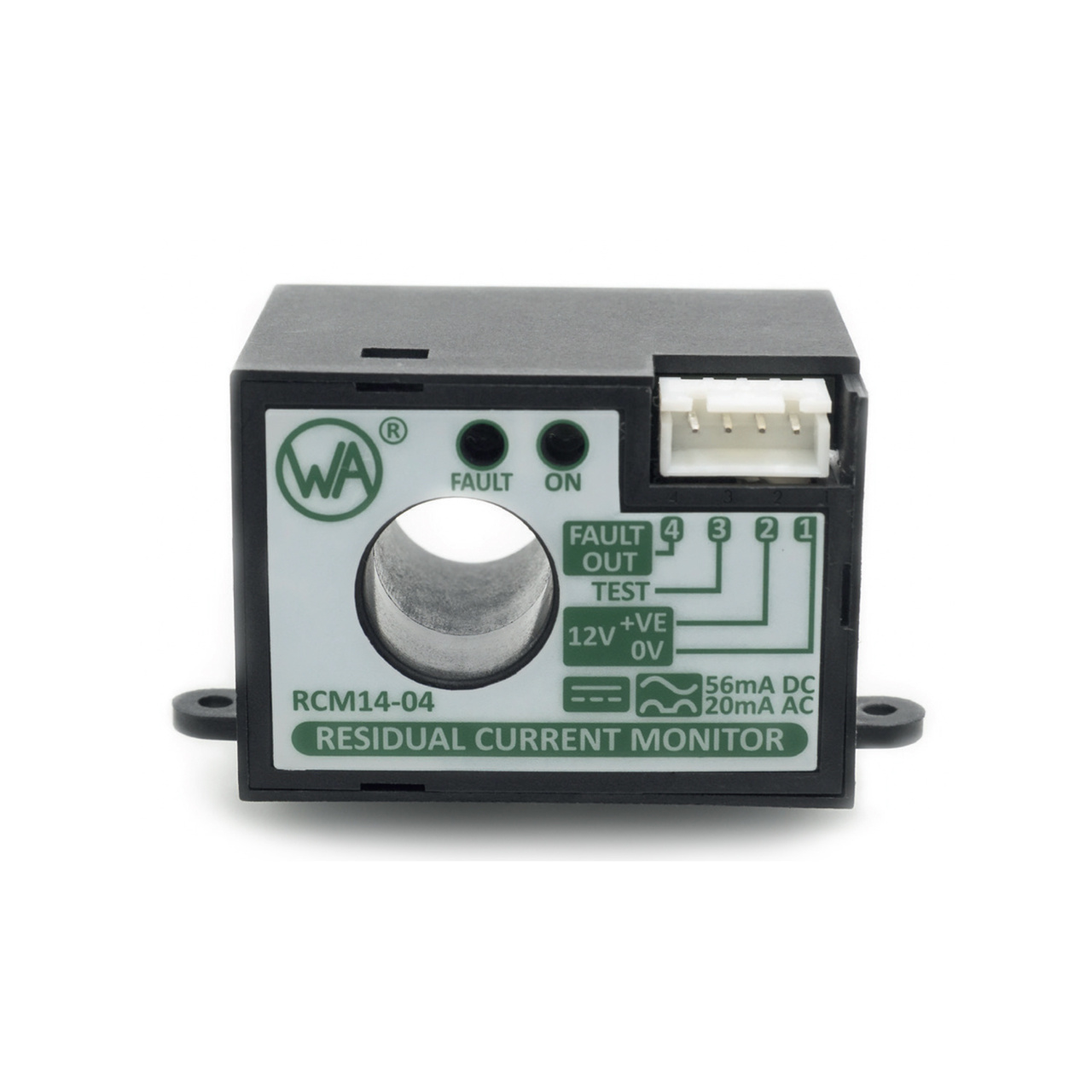

Residual Current Monitor, 56mA DC/20mA AC Fault Current Detection, UL2231, 14mm CT Aperture | Series: RCM14-04
The RCM14-04 is a compact residual current monitor designed to detect AC and DC residual currents in 60 Hz AC installations.
It is primarily intended for use in CCID20-compliant Electric Vehicle charging stations, where it disconnects power to the EV in the event of an AC and/or DC residual current fault.
The device supports detection in DC, single-phase, and multiphase systems. It features a panel-mountable design and a JST connector for easy integration.
Fully compliant with the detection requirements of UL 2231-2.
| Property | Value |
|---|---|
Aperture | 14mm (0.551 Inch) |
Supply Voltage | 24 |
Type | Stand-alone |
Conductors | None (Open Aperture) |
Relevant Product Standard | UL2231-2 (CCID20) |
EV Charger Type | Level1/2 |
Rated Residual Operating Current | 6 mA dc / 30 mA ac |
Rated Non-operating Residual Current | 15 mA ac |
Max Power Consumption (mW) | 174 |
Environmental Operating Conditions Absolute Temperature | -40°C to +85°C |
DC Supply Voltage / Power Consumption | 12V DC ± 10%, 3.5 mA Maximum, 40 mA Maximum |
Surge Current Withstand | 3000 A |
Pull up Voltage | 24V DC Maximum |
Weight (kg) | 45g |
Fault Signal Output | Active High Open Drain |
ID (µA) | 100mA Maximum |
- JST XH 2.5 mm Pitch Connector JST:B4B-XH-A (LF)(SN)
- LED Indication for "On" and "Fault"
- Large 14mm ID aperture
- Provides easy installation
- At-a-glance function and fault indication
- Flexibility to support single or 3-phase supply cables
90148 Applications
- Level 1 & 2 EV Charging Stations
90148 Resources
