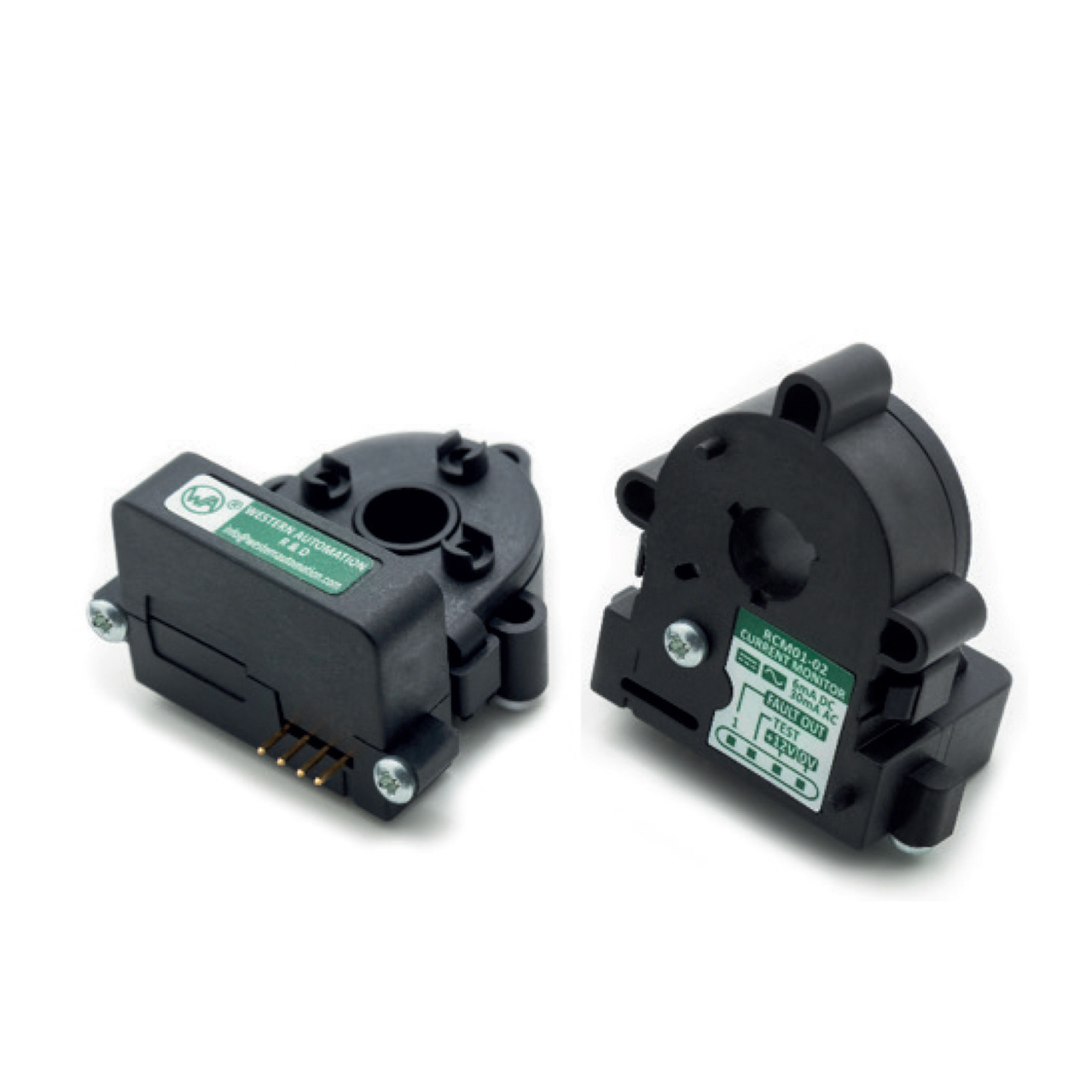

Residual Current Monitor, 6mA DC/30mA AC Fault Current Detection, IEC62752, 9mm CT Aperture | Series: RCM01-02
The RCM01-02 detects AC and DC residual currents in 50Hz/60Hz AC installations. It is primarily designed for Mode 2 Electric Vehicle In-Cable Control and Protection Devices (IC-CPDs), disconnecting power in the event of a residual current fault.
It also supports DC, single-phase, and multiphase installations. Compact and PCB-mountable, the RCM01-02 complies fully with IEC 62752.
It also supports DC, single-phase, and multiphase installations. Compact and PCB-mountable, the RCM01-02 complies fully with IEC 62752.
| Property | Value |
|---|---|
Aperture | 9mm (0.354 Inch) |
Supply Voltage | 12 |
Type | PCB-mounted vertical |
Conductors | None (Open Aperture) |
Relevant Product Standard | IEC 62752 |
EV Charger Type | Mode 2 |
Rated Residual Operating Current | 6 mA dc / 30 mA ac |
Rated Non-operating Residual Current | 3 mA dc / 15 mA ac |
Max Power Consumption (mW) | 60 |
Environmental Operating Conditions Absolute Temperature | -40°C to +85°C |
DC Supply Voltage / Power Consumption | 12V DC ± 10%60 mW Maximum |
Surge Current Withstand | 3000 A |
Pull up Voltage | +12V DC Maximum |
Weight (kg) | 22g |
Fault Signal Output | Active High Open Drain |
ID (µA) | 100mA Maximum |
- External Test Facility
- "Fault" Signal Output
- 9 mm ID Aperature
- Ability to verify to correct operation of the device
- Offloads fault detection from the main control system, simplifying and reducing development time
- Flexibility to support single or 3-phase supply cables
90103 Applications
- Mode 2 EV Charging Stations
