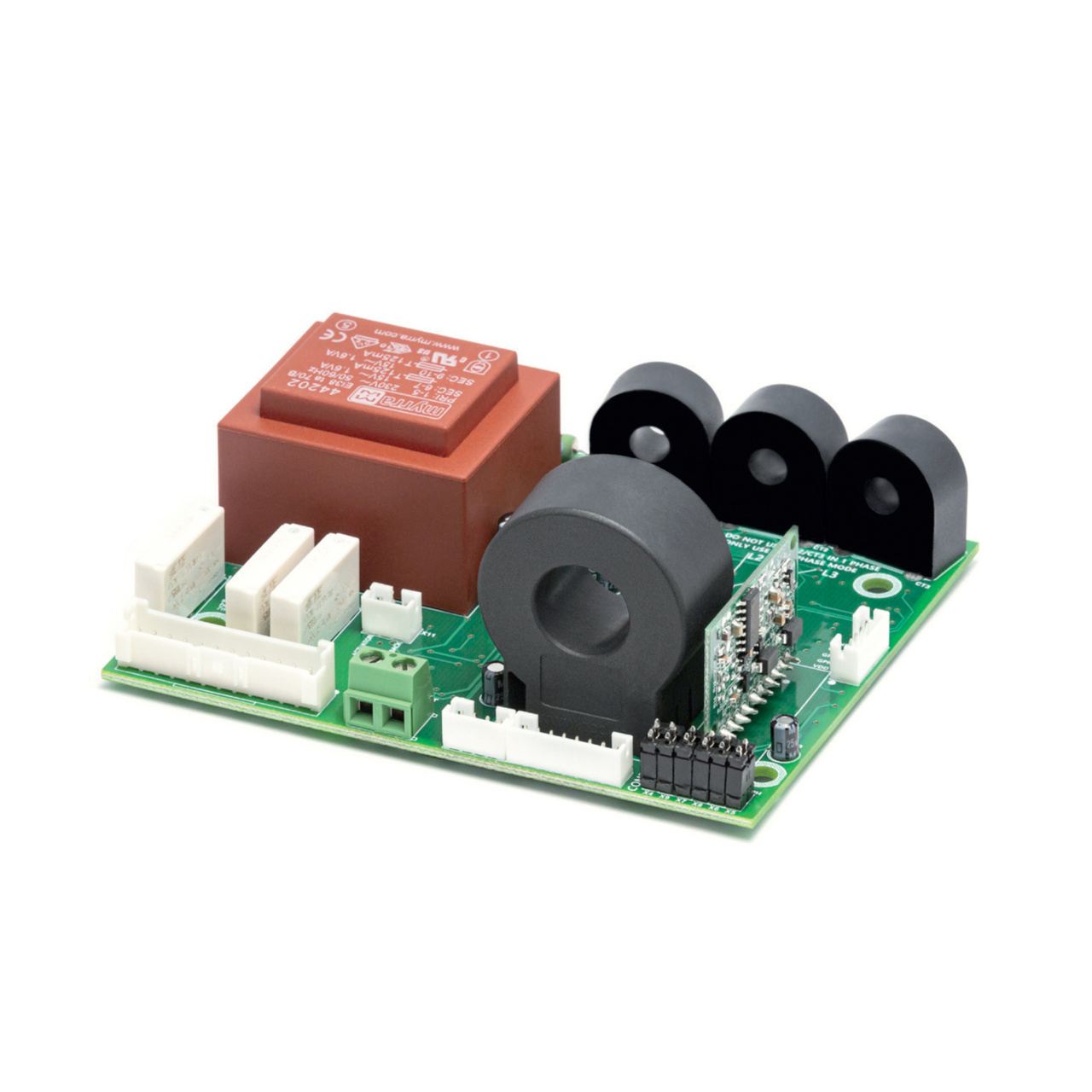

The RCM14-03 is a compact residual current monitor designed to detect both AC and DC residual currents in 50 Hz/60 Hz AC installations.
It is primarily used in Mode 2 Electric Vehicle In-Cable Control and Protection Devices (IC-CPDs) to disconnect power to the EV in the event of a residual current fault.
The RCM14-03 supports detection in DC, single-phase, and multiphase systems. It features a panel-mountable design with a JST connector for straightforward integration.
Fully compliant with IEC 62752 detection requirements.
- JST XH 2.5 mm Pitch Connector JST:B4B-XH-A (LF)(SN)
- LED Indication for "On" and "Fault"
- Large 14mm ID
- Provides easy installation
- At-a-glance function and fault indication
- Flexibility to support single or 3-phase supply cables
RCM14-03 Parts
Link has been copied to clipboard
Filters
RCM14-03 Applications
- Mode 2 EV Charging Stations
