90167

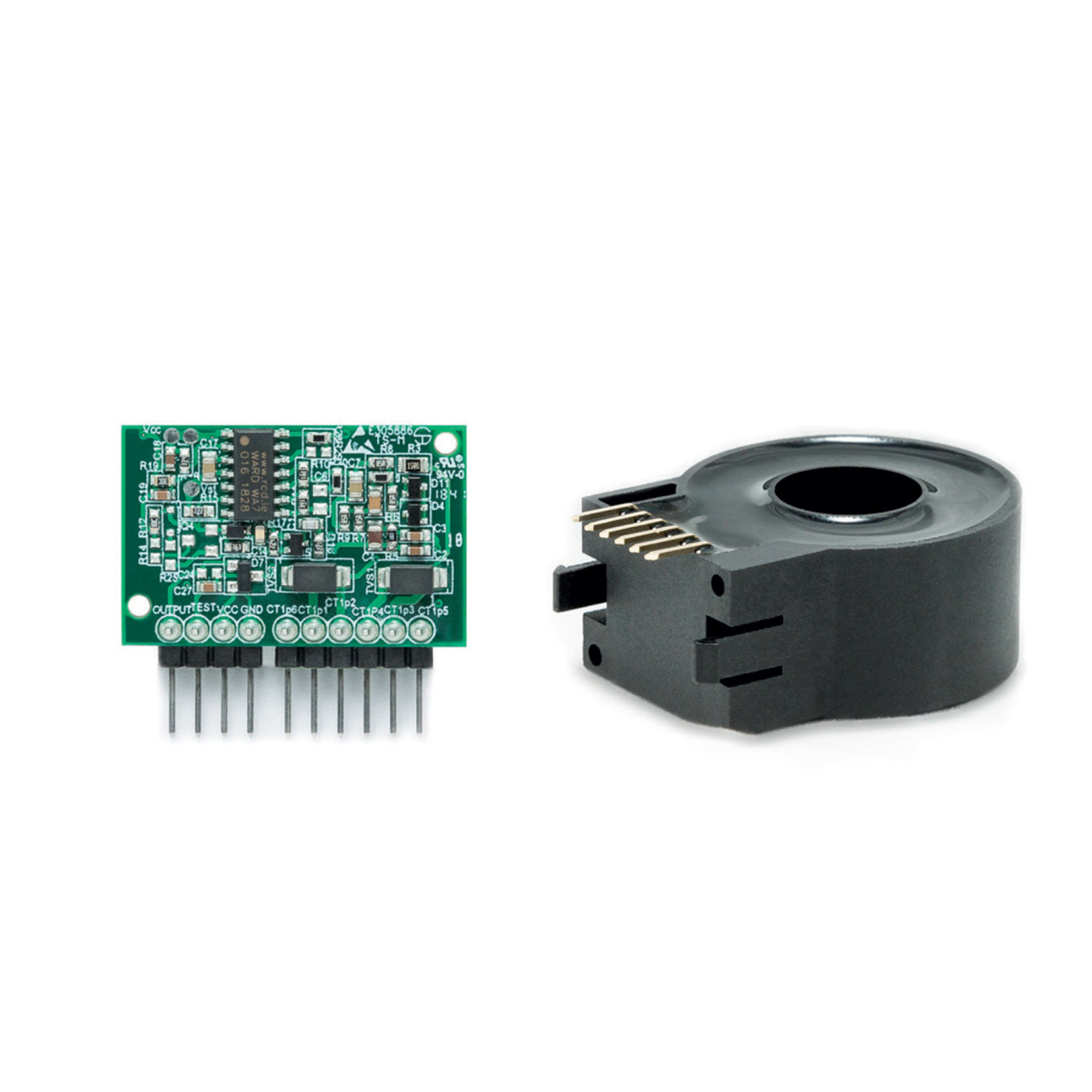

Consists of 90134 pcb assembly and 90150 horizontal mount current transformer | Series: RCM14-03 System
The RCM14-03 is a compact residual current monitor designed to detect both AC and DC residual currents in 50 Hz/60 Hz AC installations.
It is primarily used in Mode 2 Electric Vehicle In-Cable Control and Protection Devices (IC-CPDs) to disconnect power to the EV in the event of a residual current fault.
The RCM14-03 supports detection in DC, single-phase, and multiphase systems. It features a panel-mountable design with a JST connector for straightforward integration.
Fully compliant with IEC 62752 detection requirements.
| Property | Value |
|---|---|
Aperture | 14mm (0.551 Inch) |
Type | Stand-alone |
Conductors | None (Open Aperture) |
Relevant Product Standard | IEC62955 |
Rated Residual Operating Current | 6 mA dc |
Rated Non-operating Residual Current | 3 mA dc |
Max Power Consumption (mW) | 165 |
Environmental Operating Conditions Absolute Temperature | -40 °C to +85 °C |
Surge Current Withstand | 3000 A |
Pull up Voltage | +26.4V DC Maximum |
Weight (kg) | 35g |
Fault Signal Output | Active High Open Drain |
ID (µA) | 100mA Maximum |
Rated Load Current | 125A Maximum (the absolute maximum temperature of theconductors through the CT must not exceed 105°C) |
Size (Width x Length x Height) | 14mm (0.551 Inch) |
- Operates from a 12-24 V dc supply
- External Test Facility
