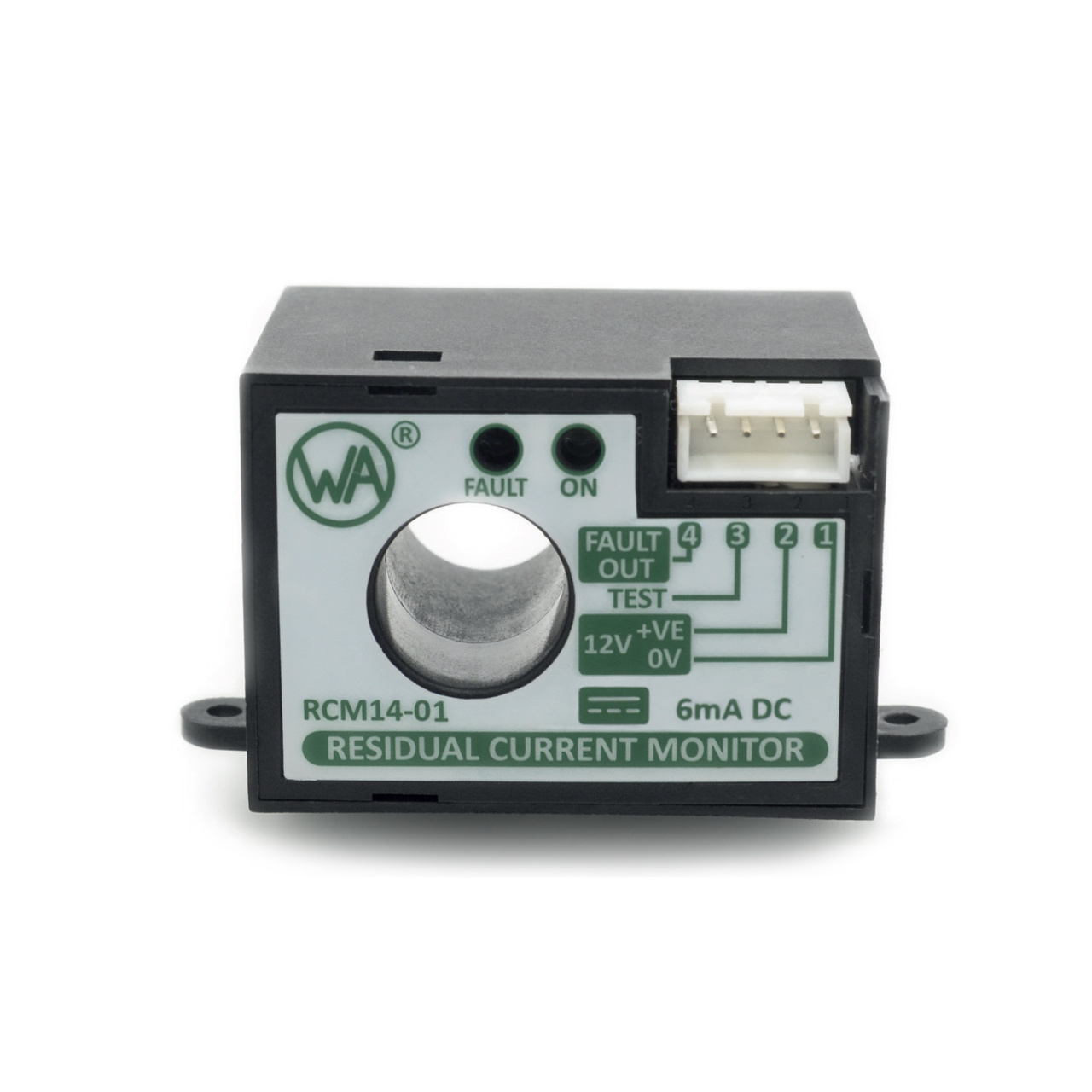

The RCM14-01 residual current monitor is designed to detect dc residual currents in 50 Hz/60 Hz ac installations. It is primarily used in Mode 3 electric vehicle charging stations to disconnect the power supply in the event of a dc residual fault current, enhancing safety and compliance. It can also be applied in dc, single-phase, or multi-phase installations for broader monitoring needs. This compact, panel-mounted device features a JST connector for easy installation and is fully compliant with the detection requirements of IEC 62955.
- JST XH 2.5 mm Pitch Connector JST:B4B-XH-A (LF)(SN)
- LED Indication for "On" and "Fault"
- Large 14mm ID
- Provides easy installation
- At-a-glance function and fault indication
- Flexibility to support single or 3-phase supply cables
RCM14-01 Parts
Link has been copied to clipboard
Filters
RCM14-01 Applications
- Mode 3 EV Charging Stations
