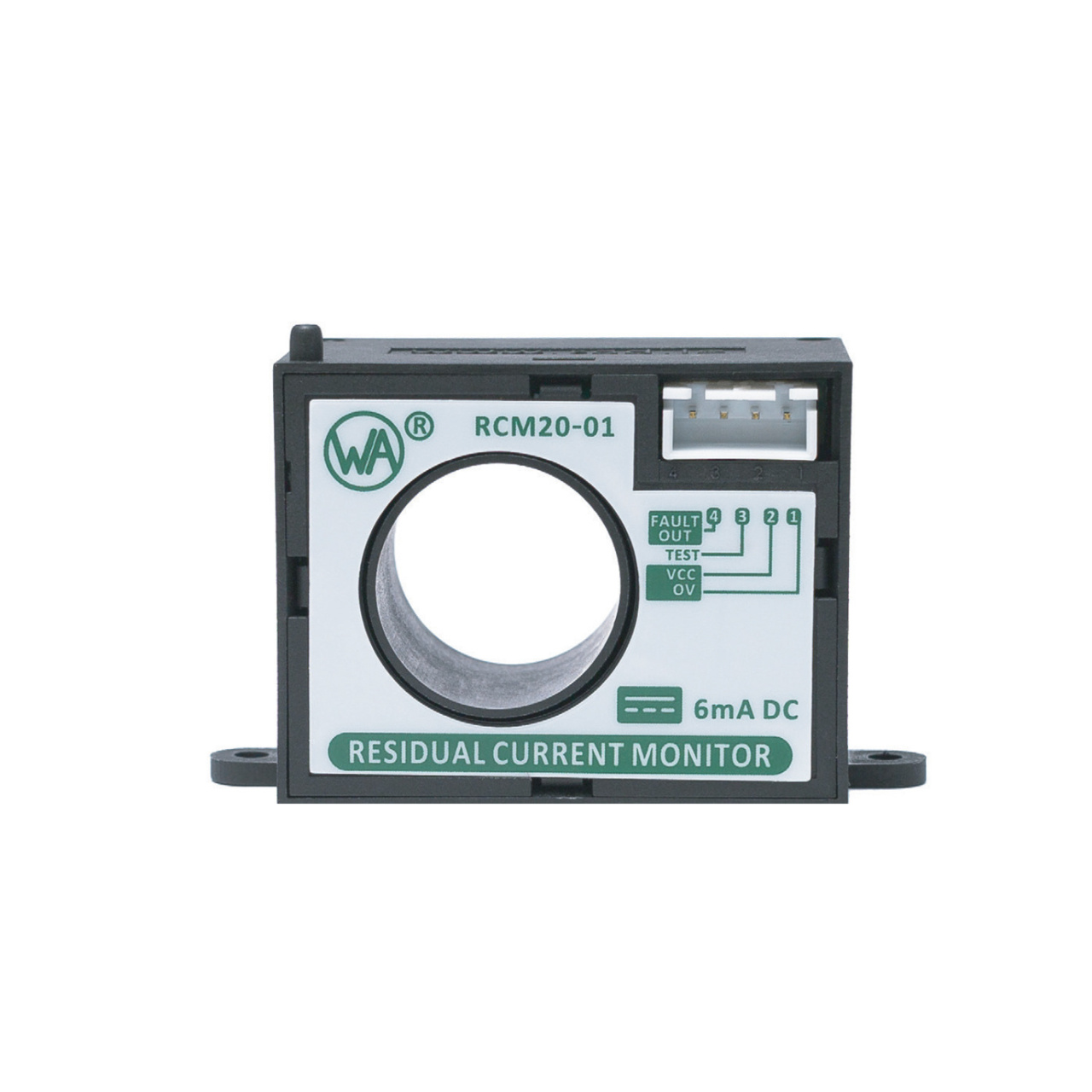

Residual Current Monitor, 6mA DC Fault Current Detection, IEC62955, 20mm CT Aperture | Series: RCM20-01
The RCM20-01 detects DC residual currents in 50Hz/60Hz AC installations. It is primarily designed for Mode 3 EV charging stations to disconnect power during a DC fault condition.
It also supports DC, single-phase, and multiphase installations. Compact and panel-mounted, the RCM20-01 features a JST connector for easy integration and complies with IEC 62955 detection requirements.
| Property | Value |
|---|---|
Aperture | 20mm (0.757 Inch) |
Supply Voltage | 24 |
Type | Stand-alone |
Conductors | None (Open Aperture) |
Relevant Product Standard | IEC 62955 |
EV Charger Type | Mode 3 |
Rated Residual Operating Current | 6 mA dc / 30 mA ac |
Rated Non-operating Residual Current | 3 mA dc / 15 mA ac |
Max Power Consumption (mW) | 300 |
Environmental Operating Conditions Absolute Temperature | -40°C to +85°C |
Surge Current Withstand | 3000 A |
Pull up Voltage | +26.4V DC Maximum |
Fault Signal Output | Active High Open Drain |
ID (µA) | 100mA Maximum |
Conditional Residual Short-Circuit Current | 10 kA |
- JST XH 2.5 mm Pitch Connector JST:B4B-XH-A (LF)(SN)
- Fault Signal Output
- Large 20mm ID Aperture
- Provides easy installation
- Offloads fault detection from the main control system, simplifying and reducing development time
- Flexibility to support single or multi-phase supply cables
