LF53464-08TMR
LF53464-08TMR Angle Sensor | Series: TMR Angle Sensors
LF53464 Omni-polar Magnetic Angle Sensor is High precision magnetic 0 to 360 degree angle measurement sensor in X and Y axis sensing direction with compensation of thermal drift ensuring the high performance in harsh environment and conditions.

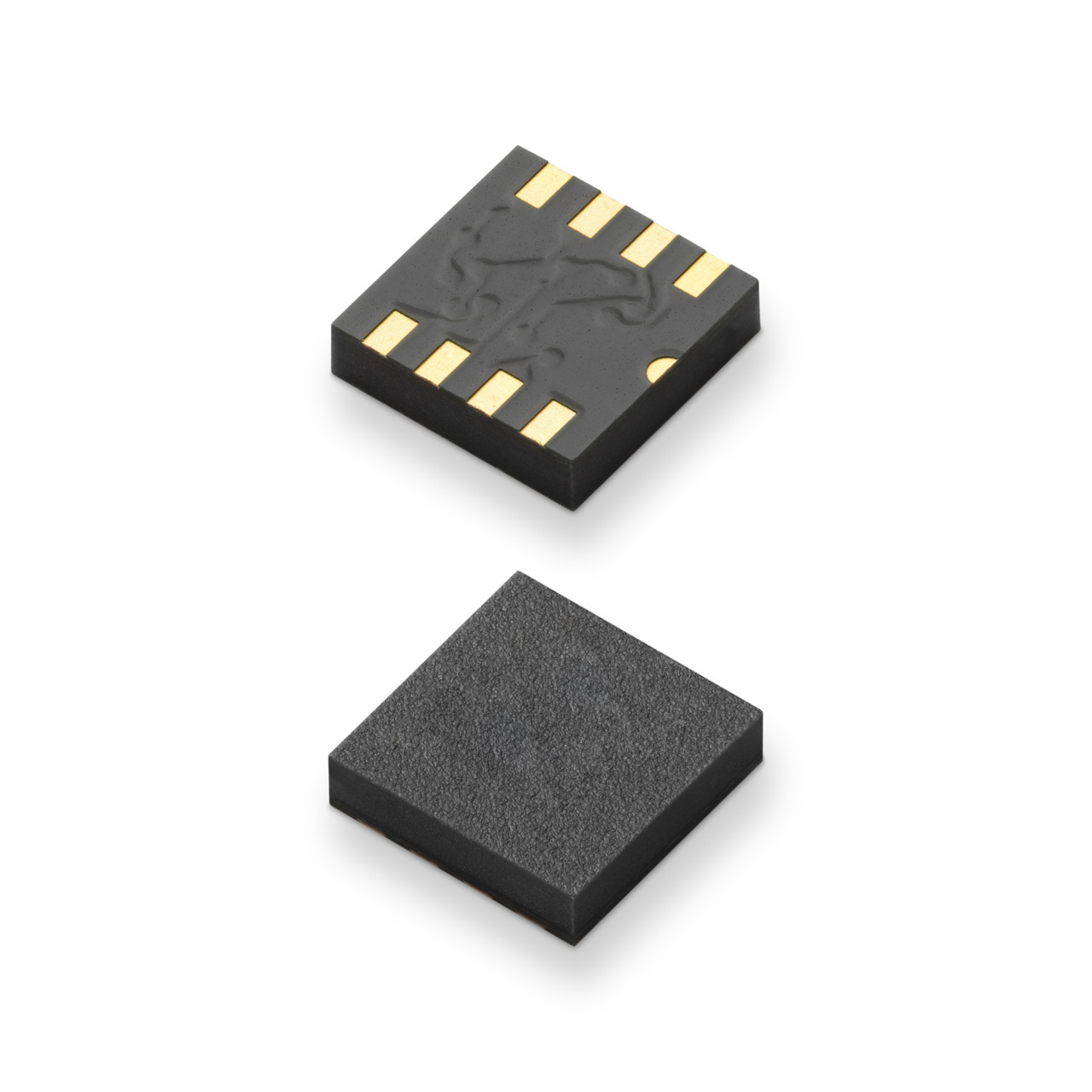

The LF53464 achieves low angle error under 0.6 degree for applied magnetic field between 200 Gs and 800 Gs. The LF53464 is available in LGA8L package.
| Property | Value |
|---|---|
Angular Range | 0-360 |
Angular Error | 0.6 |
Peak Voltage | 340 |
Operating Temperature Max (°C) | 85 |
Maximum Supply Voltage (V) | 7 |
Operating Temperature Min (°C) | -40 |
Minimum Supply Voltage (V) | 1 |
Output Type | Analog Differential |
Sensing Axis | X & Y |
Bridge Resistance | 140 |
Switch Type | Analog |
- Tunneling Magnetoresistance technology (TMR)
- X-Y axis sensing direction
- Up to 7V operating range
- Differential output
- LGA Package
LF53464-08TMR Applications
- Rotary position sensor
- Steering wheel angle sensor
- Contactless potentiometer
- Valve position sensors
- Knob position sensors
