LF21173TMR

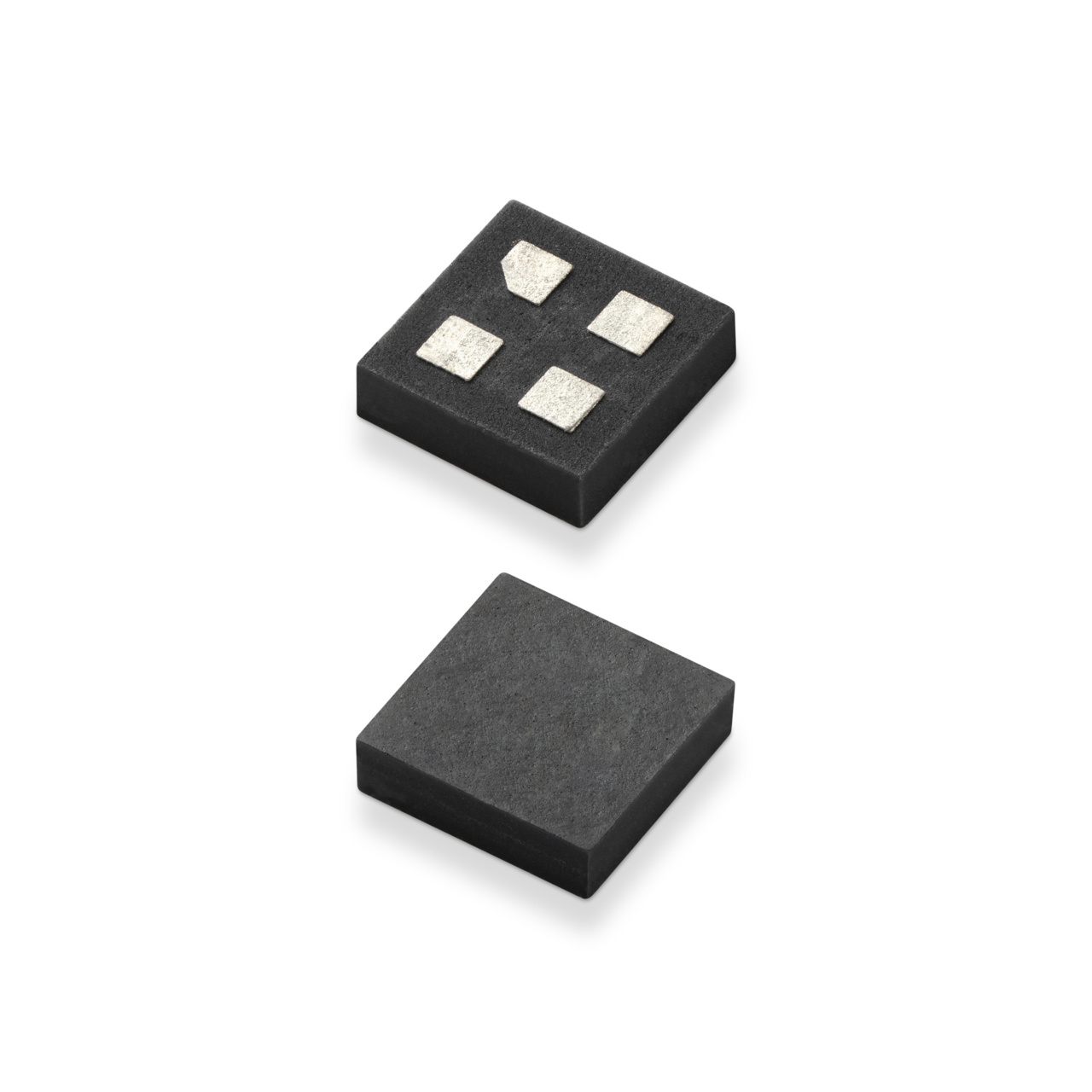

LF21173TMR switch LGA | Series: TMR Switch
LF21173TMR is a digital omnipolar magnetic switch that integrates TMR and CMOS technology in order to provide high precision, low current consumption at 160nA and 10 Gauss typical operational sensitivity. It contains a voltage generator, a comparator, a digital logic control module, a threshold trimming module and a CMOS output circuit which operates within a supply voltage range from 1.8V to 5.5V and is available in an LGA4 package.
| Property | Value |
|---|---|
Switch Type | Omnipolar |
B operate Threshold | 9 |
B release Threshold | 6 |
Vsupply Current | 160 |
Frequency Response | 50 |
Minimum Supply Voltage (V) | 1.8 |
Maximum Supply Voltage (V) | 5.5 |
Output Type | Push Pull |
Sensing Axis | X |
Operating Temperature | -40° to 85°C |
- Tunneling Magnetoresistance technology (TMR)
- X axis sensing direction
- Supply voltage range 1.8V to 5.5V
- Digital output
- LGA Package
LF21173TMR Applications
- Rotary position sensor
- Steering wheel angle sensor
- Contactless potentiometer
- Absolute angle sensor
- Pedal position sensor
LF21173TMR Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| LF21173TMR | LF21173TMR switch LGA | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
TMR LGA4 Switch Sensors - EN
TMR LGA4 Switch Sensors - EN
TMR LGA4 Switch Sensors - JP
TMR LGA4 Switch Sensors - JP
TMR LGA4 Switch Sensors - CN
