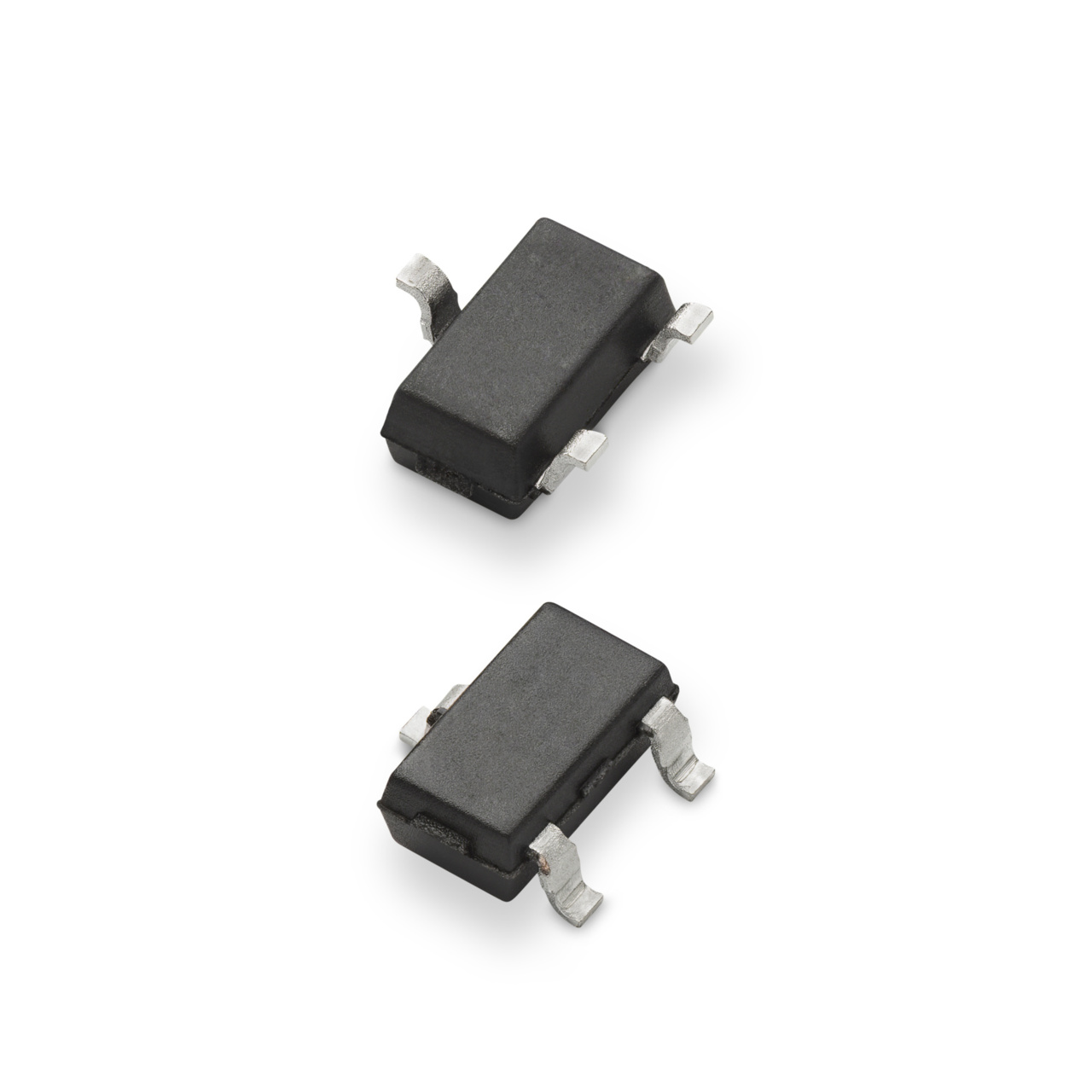

TX00AS314TRA TMR switch SOT23 | Series: TMR Switch
The TX00AS314TRA TMR Switch is a digital omnipolar magnetic switches that integrate TMR and CMOS technology in order to provide a magnetically triggered digital switch with high sensitivity, high speed, and low power consumption. It contains a TMR magnetic sensor and CMOS signal processing circuitry within the same package, including an on-chip TMR voltage generator for precise magnetic sensing, a TMR voltage amplifier and comparator plus a Schmitt trigger to provide switching hysteresis for noise rejection, CMOS push-pull output and X axis sensing direction.
| Property | Value |
|---|---|
Switch Type | Omnipolar |
B operate Threshold | 14 |
B release Threshold | 11 |
Vsupply Current | 1.5 |
Frequency Response | 1000 |
Minimum Supply Voltage (V) | 2.8 |
Maximum Supply Voltage (V) | 5.5 |
Output Type | Push Pull |
Sensing Axis | X |
Operating Temperature | -44° to 125°C |
- Tunneling Magnetoresistance technology (TMR)
- X-axis sensing direction
- Low power consumption at 1.5 uA
- High frequency up to 1000 Hz
- SOT23-3 package
TX00AS314TRA Applications
- Proximity switches
- Speed sensing
- Utility meters (gas, water and heat)
- Low power applications
- Position sensing
TX00AS314TRA Resources
