USUG1000-303G
THERMISTOR, U.S. SENSOR | Series: DO-35 UL Recognized-USUG1000

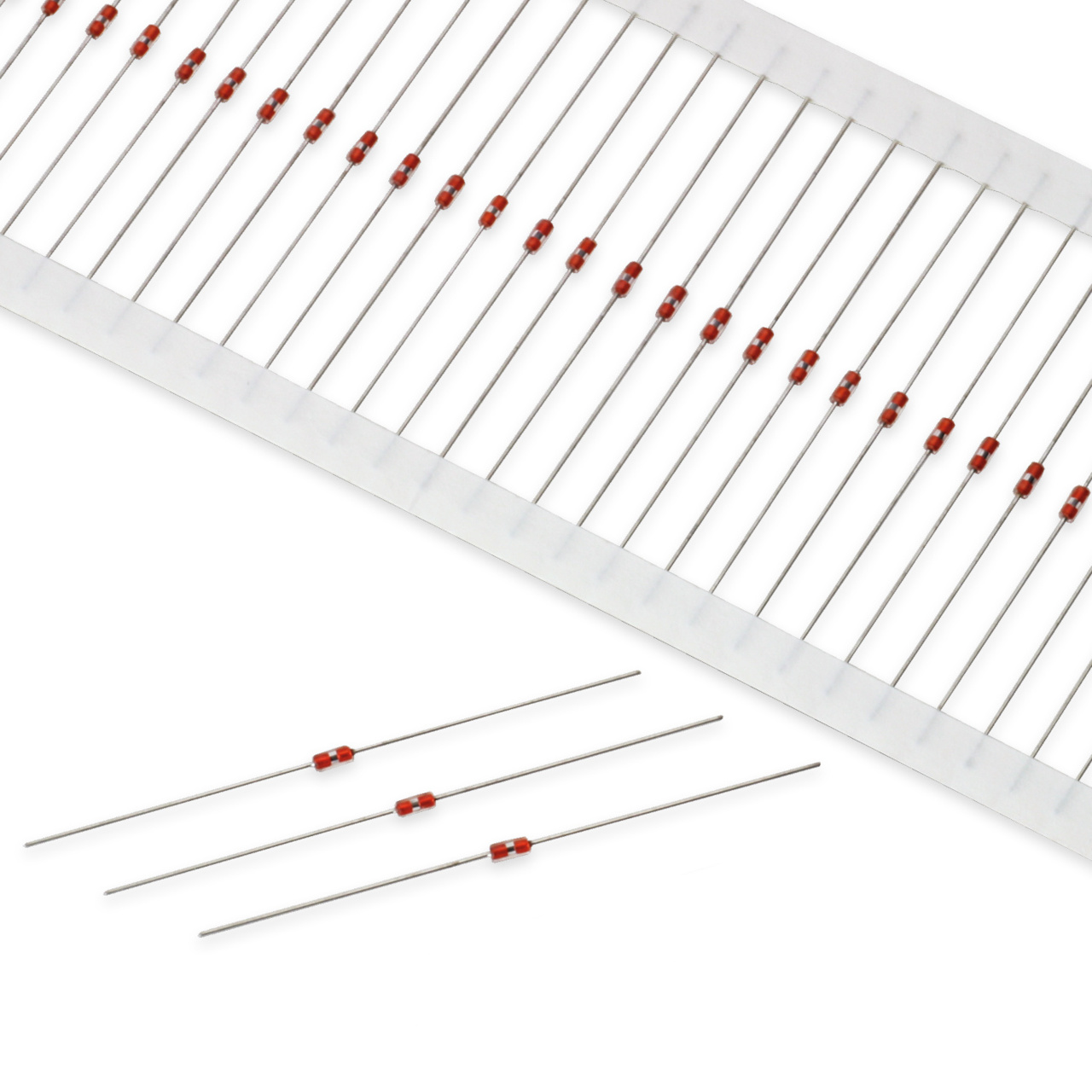

Littelfuse UL Recognized glass encapsulated thermistors are manufactured using super stable NTC chips which are hermetically sealed in a glass (DO-35 diode style) package. The result is a device which exhibits excellent long-term reliability and stability even when subjected to severe environmental or thermal conditions. Their uniform dimensions and axial lead configuration make them especially suitable for use with automatic insertion equipment.
| Property | Value |
|---|---|
Resistance Ω @ 25°C | 30000 |
Resistance Tol ± % @25°C | 2 |
R-T Curve | J |
Max Power Rating | 20mW |
Operating Temperature | -40° to 150°C |
Beta | 3892 |
R-T Curve | J |
- Temperature rating = -40 to +150°C
- Hermetically sealed glass package
- Excellent long-term stability
- Tinned CCS lead wires are solderable or weldable
USUG1000-303G Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| USUG1000-303G | THERMISTOR, U.S. SENSOR |  2/20/2019 | No |  CoC_RoHS9_USUG1000-303G | REACH_SVHC Declaration_USUG1000-303G | Does Not Contain | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
