KC104R2K
NTC THERMISTOR 100K ± 10% "R" | Series: KC

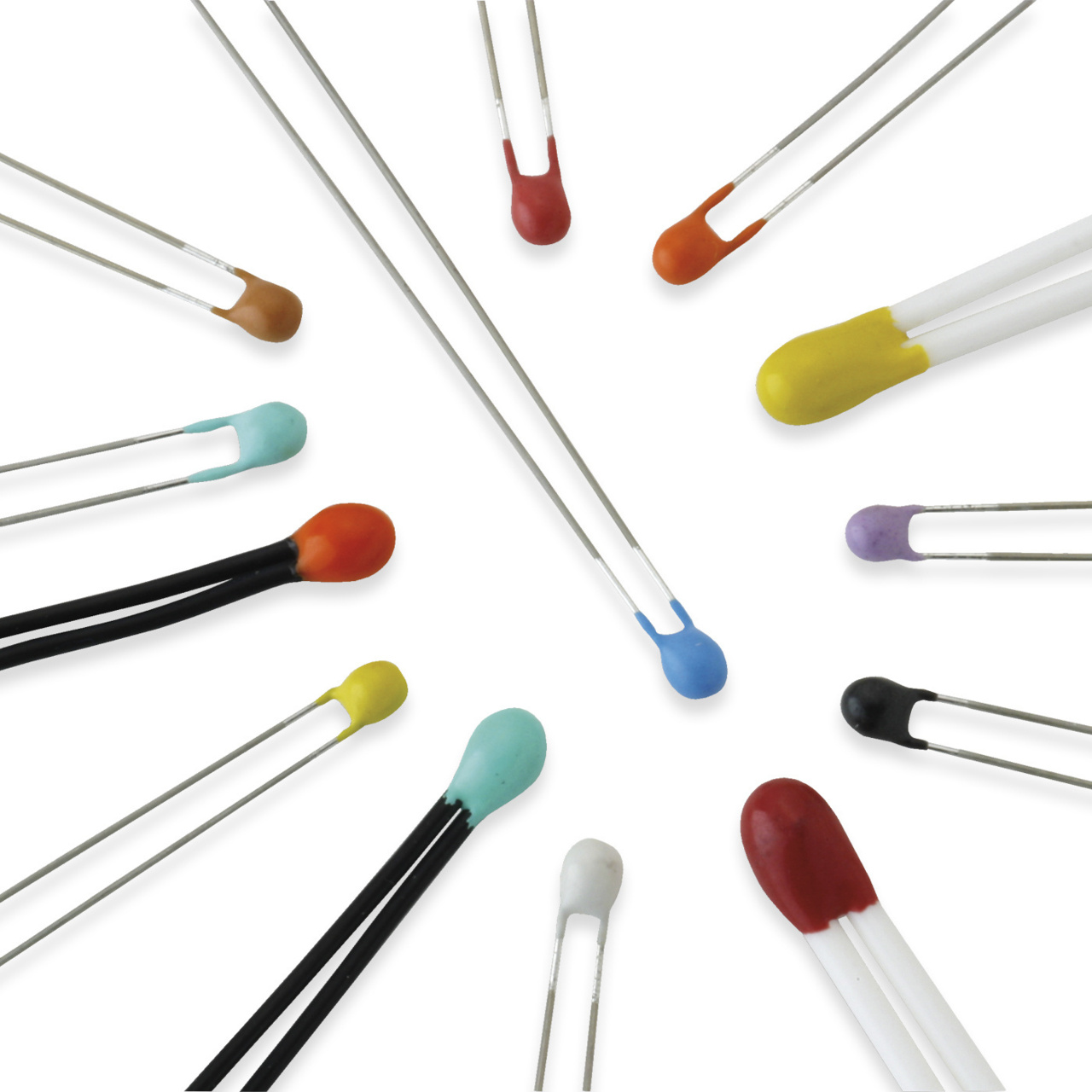

Littelfuse miniature leaded epoxy coated thermistors are manufactured using the same state of the art manufacturing techniques as those used to produce Littelfuse precision interchangeable devices. This results in devices with superior long term reliability characteristics especially suitable for temperature measurement, temperature control and temperature compensation applications.
Options:
- Special lead materials and lengths
- Special encapsulants or probe housings
- Non-standard resistance values and tolerances
- Point matched at specified temperatures
| Property | Value |
|---|---|
Resistance Ω @ 25°C | 100000 |
Resistance Tol ± % @25°C | 10 |
R-T Curve | R |
Operating Temperature | -55° to 135°C |
Beta | 4140 |
R-T Curve | R |
- Kynar insulated lead wires
- Low cost
- High reliability
- Epoxy encapsulated
- Small size
- Fast thermal response time
KC104R2K Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| KC104R2K | NTC THERMISTOR 100K ± 10% "R" |  3/11/2021 |  3/11/2021 |  CoC_RoHS10_KC104R2K | REACH211_Declaration_KC104R2K | Does Not Contain | Yes3/11/2021 | View More |
