NXUF103J3T1NFC001
LC103J2J THERMISTOR | Series: NXU

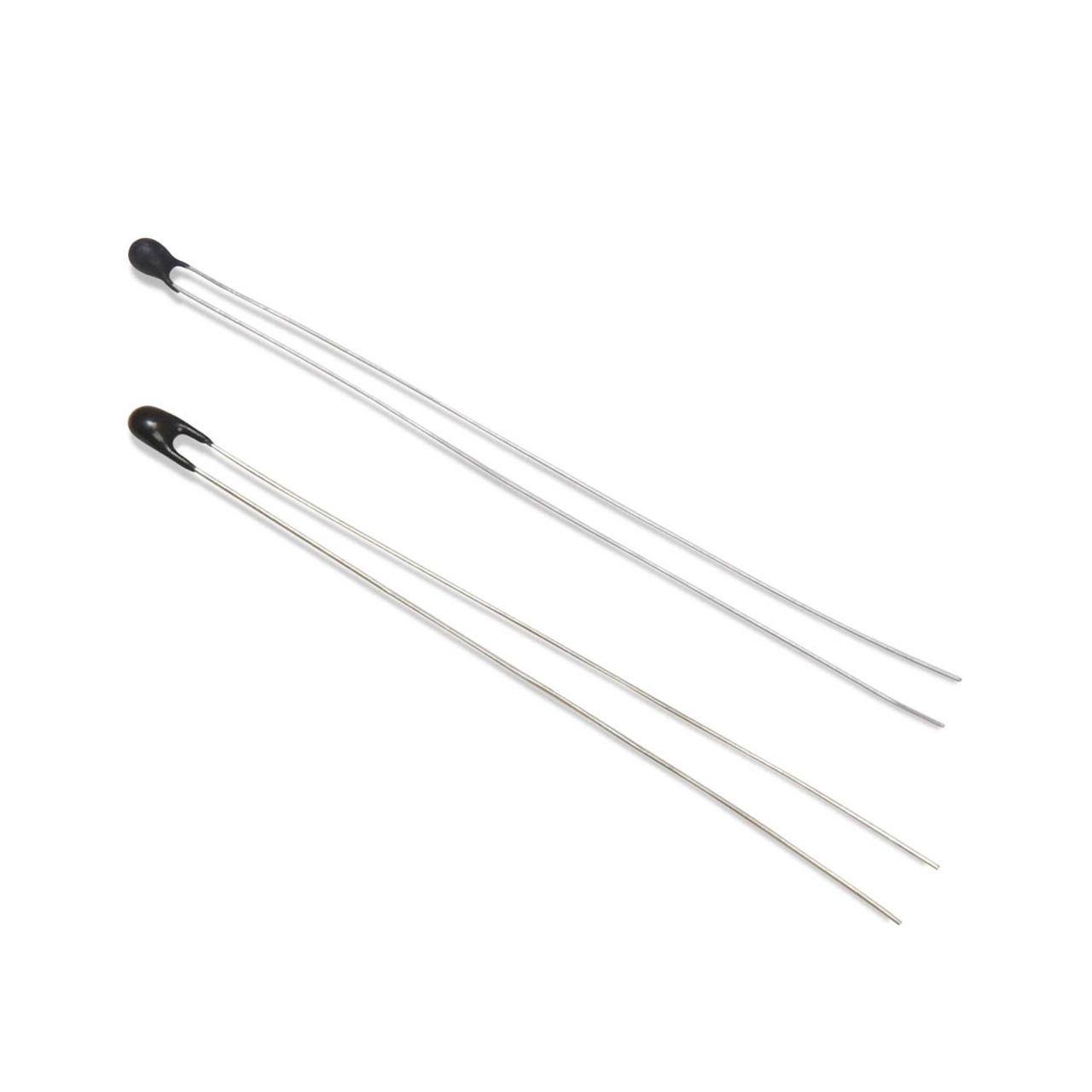

NXUF103J3T1NFC001 is an NXU series epoxy-coated NTC thermistor with uninsulated leads and the following specifications: Resistance Ohms @25 °C = 10,000 (nominal resistance at the stated temperature) Resistance Tolerance @25 °C = ± 5% (maximum deviation from the nominal resistance value) Notes: Resistance tolerances of ± 1%, 2%, 3%, and 10% are available upon request. For more specifications, refer to the technical datasheet and the engineering drawing.
| Property | Value |
|---|---|
Resistance Ω @ 25°C | 10000 |
Resistance Tol ± % @25°C | 5 |
R-T Curve | J |
Operating Temperature | -55° to 150°C |
Wire, Cable Type | Tinned Copper |
Beta | 3892 |
Lead Gauge | 28 |
Dissipation Factor, mW/°C | 1 |
Beta K 25-50 Degrees Celsius | 3935 |
R-T Curve | J |
Thermal Time Constant | 10 |
Temperature Coefficient @25°C | -4.4%/°C |
Beta K 25-85 Degress | 3977 |
