KW503R2

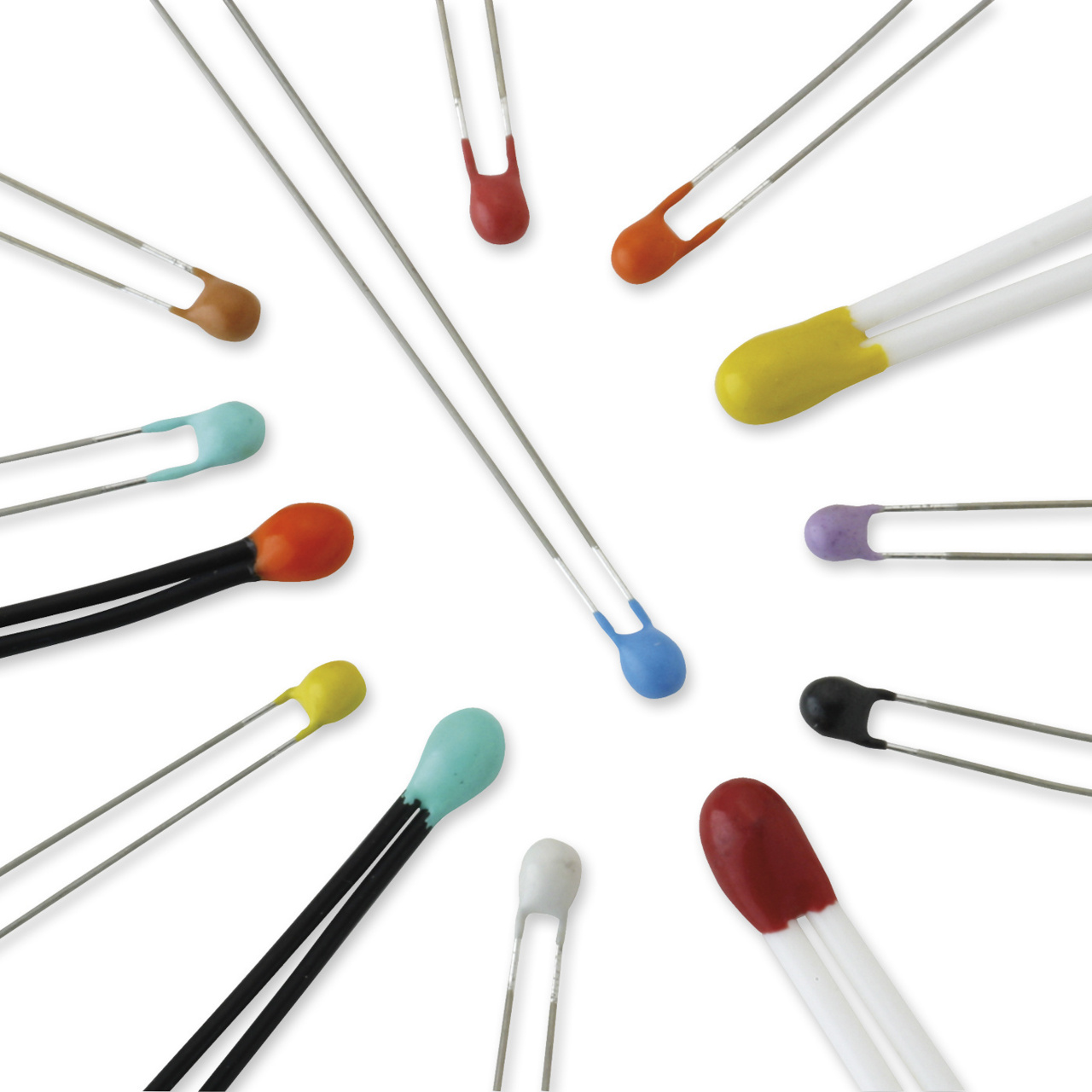

NTC THERMISTOR 50K OHM 0.5C EPOXY BEAD | Series: Precision-KW
Littelfuse precision interchangeable thermistors are low cost, highly accurate, stable devices designed specifically for temperature sensing and control applications. They are particularly suited for uses where their precision interchangeability eliminates the necessity for costly individual circuit calibration.
Options:
- Special lead materials and lengths
- Special encapsulants or probe housings
- Non-standard resistance values and tolerances
| Property | Value |
|---|---|
Resistance Ω @ 25°C | 50000 |
Accuracy | ±0.5 |
Beta | 4140 |
R-T Curve | R |
Operating Temperature | -80° to 135°C |
R-T Curve | R |
- Kynar insulated lead wires
- High accuracy
- Fast thermal response time
- Low cost
- Small size
- Epoxy encapsulated
- Excellent long-term stability
- R/T Curve-matched
KW503R2 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| KW503R2 | NTC THERMISTOR 50K OHM 0.5C EPOXY BEAD | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
