AC103E2F

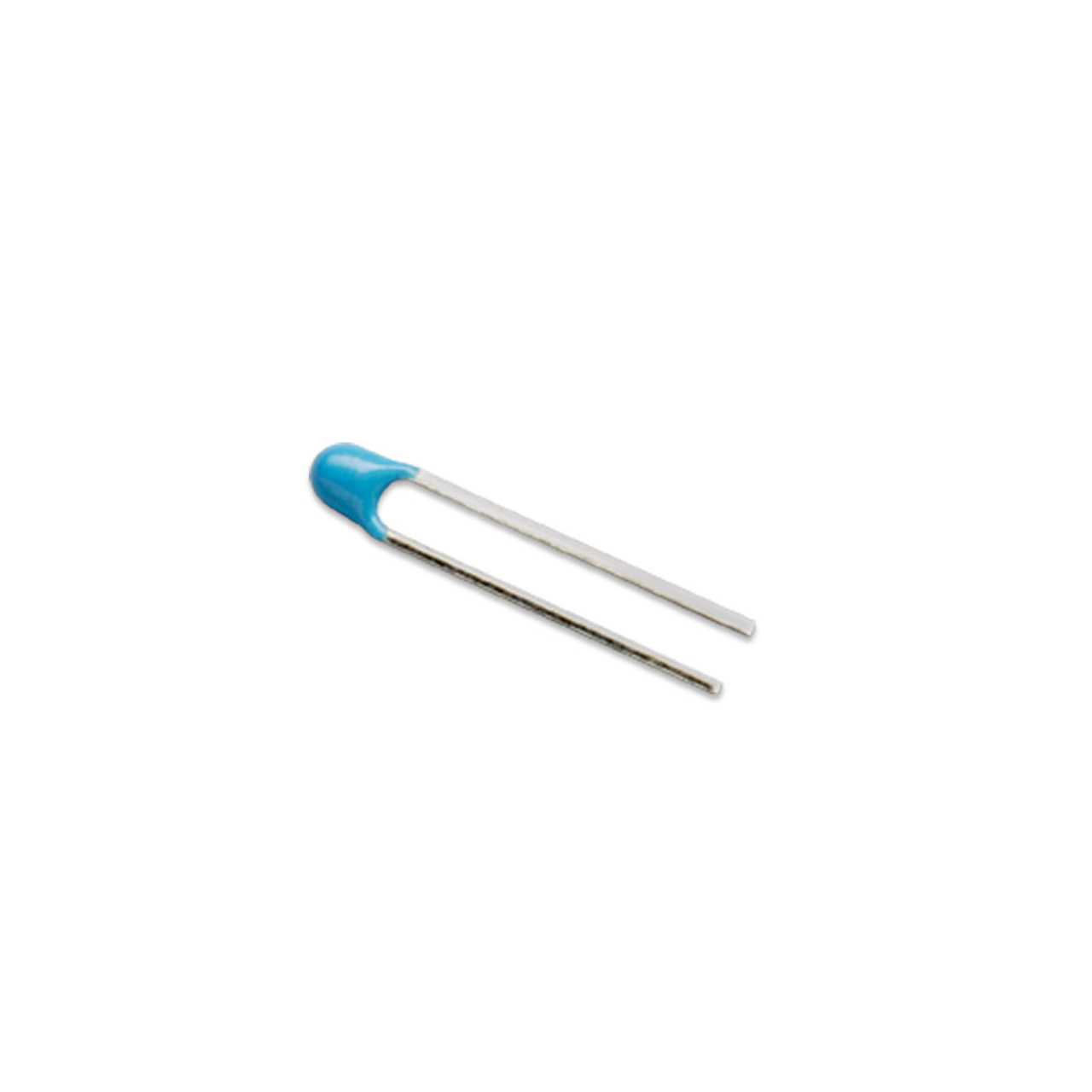

THERMISTOR, US SENSOR P/ | Series: Standard Leaded-AC Series
Littelfuse standard leaded epoxy coated thermistors are manufactured using the same state of the art manufacturing techniques as those used to produce Littelfuse’s precision interchangeable devices. This results in devices with superior long-term reliability characteristics, making them especially suitable for temperature measurement, temperature control and temperature compensation applications.
Options:
- Special lead materials and lengths
- Special encapsulants or probe housings
- Non-standard resistance values and tolerances
- Point matched at specified temperatures
| Property | Value |
|---|---|
Resistance Ω @ 25°C | 10000 |
Resistance Tol ± % @25°C | 1 |
R-T Curve | E1 |
Operating Temperature | -55° to 125°C |
R-T Curve | E1 |
Beta K 25-85 Degress | 3435 |
- Low cost
- Excellent stability
- Small size
- Epoxy encapsulated
- Fast thermal response time
AC103E2F Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| AC103E2F | THERMISTOR, US SENSOR P/ |  6/20/2002 |  6/20/2002 |  CoC_RoHS10_AC103E2F | REACH201_Declaration_AC103E2F | Does Not Contain | No | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
