DC103J2K

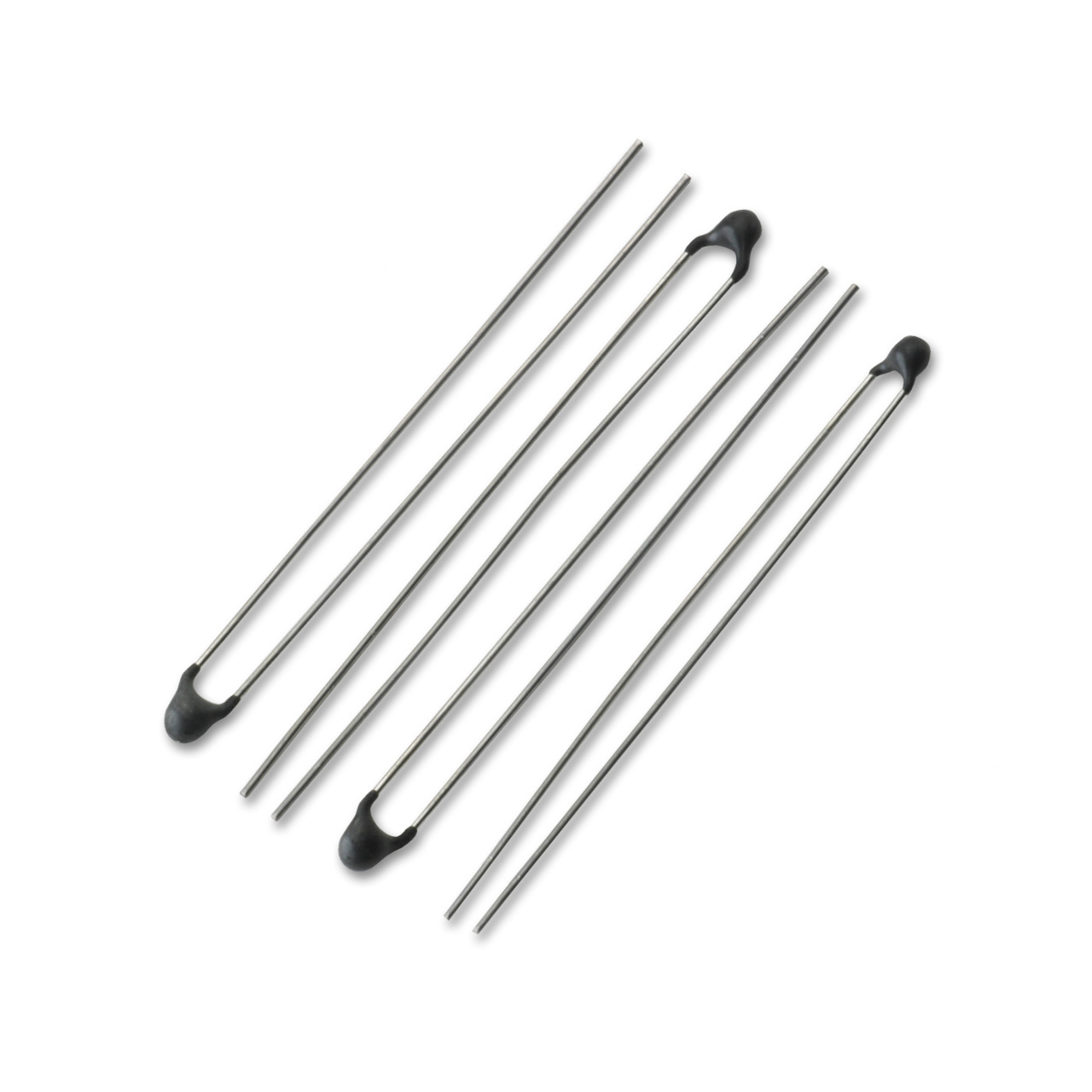

THERMISTOR, US SENSOR | Series: Standard Leaded-DC Series
Littelfuse standard leaded epoxy coated thermistors are manufactured using the same state of the art manufacturing techniques as those used to produce Littelfuse’s precision interchangeable devices. This results in devices with superior long-term reliability characteristics, making them especially suitable for temperature measurement, temperature control and temperature compensation applications.
Options:
- Special lead materials and lengths
- Special encapsulants or probe housings
- Non-standard resistance values and tolerances
- Point matched at specified temperatures
| Property | Value |
|---|---|
Resistance Ω @ 25°C | 10000 |
Resistance Tol ± % @25°C | 10 |
R-T Curve | J |
Operating Temperature | -55° to 150°C |
Beta | 3892 |
R-T Curve | J |
- Low cost
- High stability
- Small size
- Epoxy encapsulated
- Fast thermal response time
