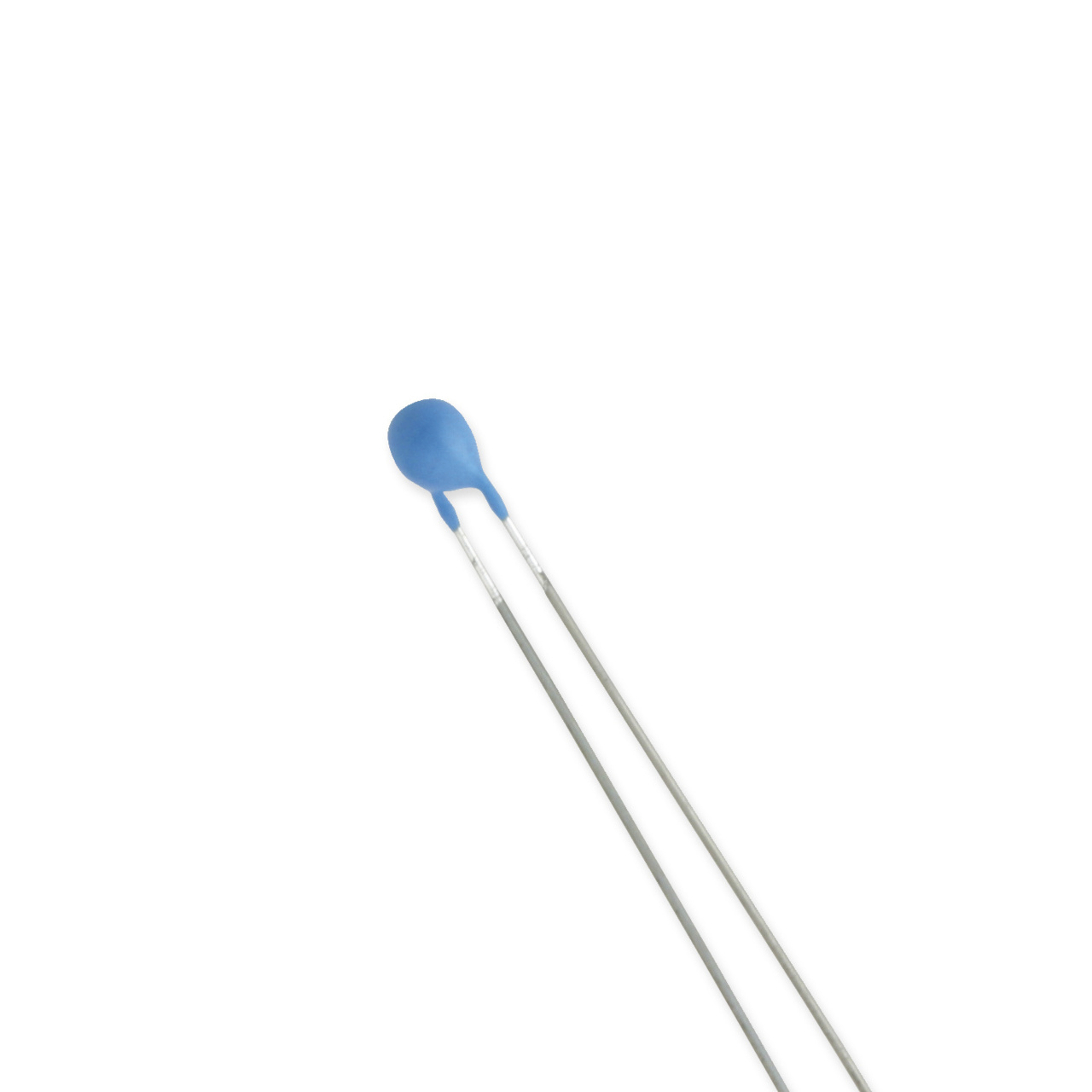

PT222J2
THERMISTOR, US SENSOR | Series: Standard Precision-PT
Littelfuse standard precision interchangeable thermistors are low cost, highly accurate, stable devices designed specifically for temperature sensing and control applications. They are particularly suited for uses where their precision interchangeability eliminates the necessity for costly individual circuit calibration.
Options:
- Special lead materials and lengths
- Special encapsulants or probe housings
- Non-standard resistance values and tolerances
| Property | Value |
|---|---|
Resistance Ω @ 25°C | 2252 |
Accuracy | ±0.2 |
Beta | 3892 |
R-T Curve | J |
Operating Temperature | -80° to 150°C |
Max Power Rating | 30mW |
R-T Curve | J |
- High accuracy
- Fast thermal response time
- Low cost
- Small size
- Epoxy encapsulated
- Excellent long-term stability
- R/T Curve-matched
PT222J2 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| PT222J2 | THERMISTOR, US SENSOR |  12/6/2021 |  12/6/2021 |  CoC_RoHS10_PT222J2 | REACH219_Declaration_PT222J2 | Does Not Contain | Yes12/6/2021 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
