PPG501B1

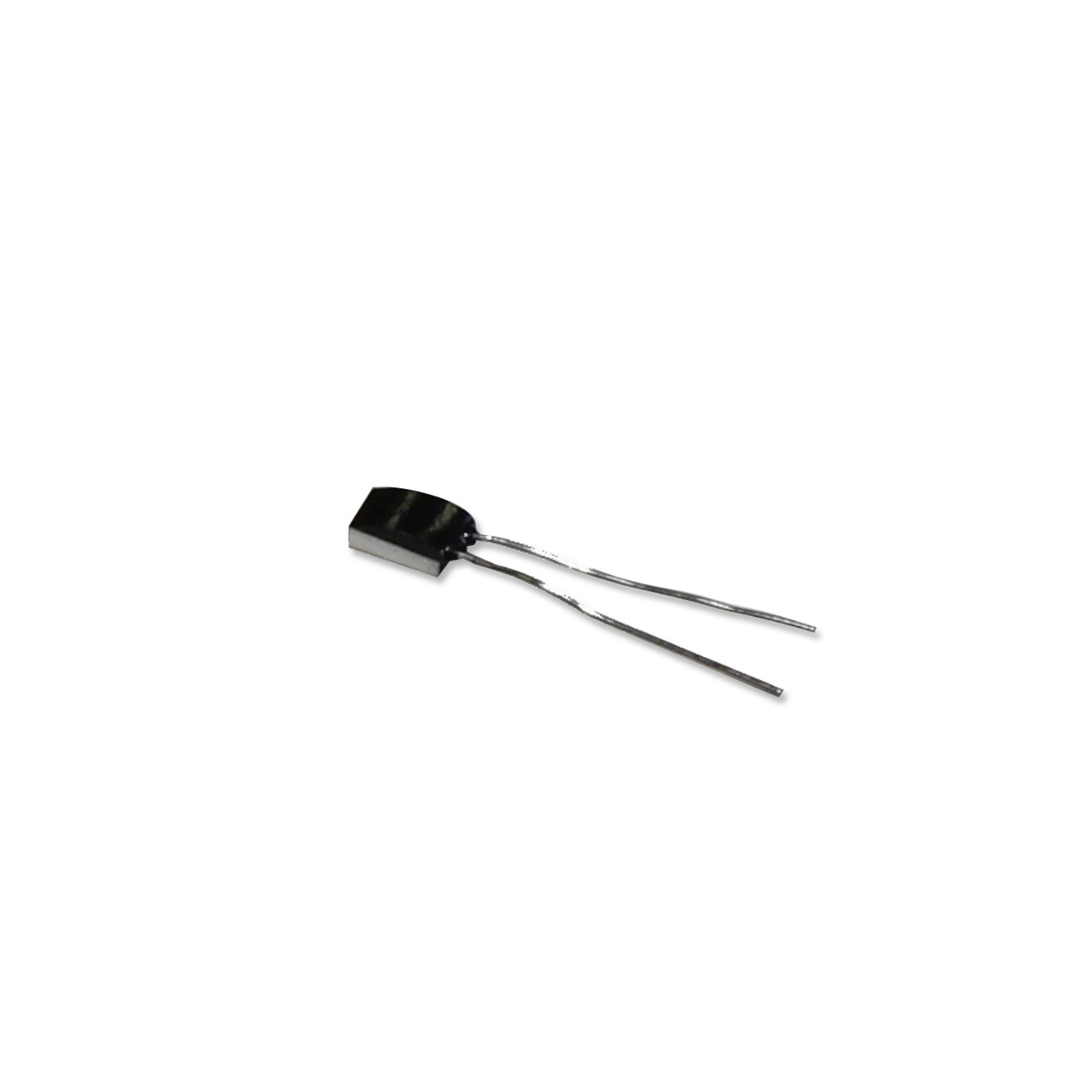

RTD ELEMENT, U.S. SENSOR | Series: PPG
Littelfuse thin film platinum RTDs (Pt-RTD) consist of a passivated thin film platinum element deposited on a ceramic substrate. Thin film Pt-RTDs provide cost advantages when compared to wirewound platinum resistance temperature detectors.
Options:
- Available in various configurations for specific applications
- Non-Standard Resistance Values and Tolerances
| Property | Value |
|---|---|
Resistance Ω @ 0°C | 500 |
Resistance Tol ±% @ 0°C | 0.12 |
DIN 43760 Class | B |
Temp. Dev. ±°C @ 0°C | 0.3 |
Temperature Coefficient Resistance ppm/°C | 3850 |
Operating Temperature Max (°C) | 500 |
- Glass coated platinum element
- Virtually linear relationship between temperature and resistance
- Capable of withstanding temperatures ranging from -50°C to +500°C. Higher temperature ratings are available by special order
- IEC 751 Class A accuracy, meaning resistance and temperature deviation can be controlled to within ±0.06 % and ±0.15°C, respectively
- High Reliability: Capable of withstanding extreme environmental conditions
- Excellent stability even at high temperatures
