57007-11

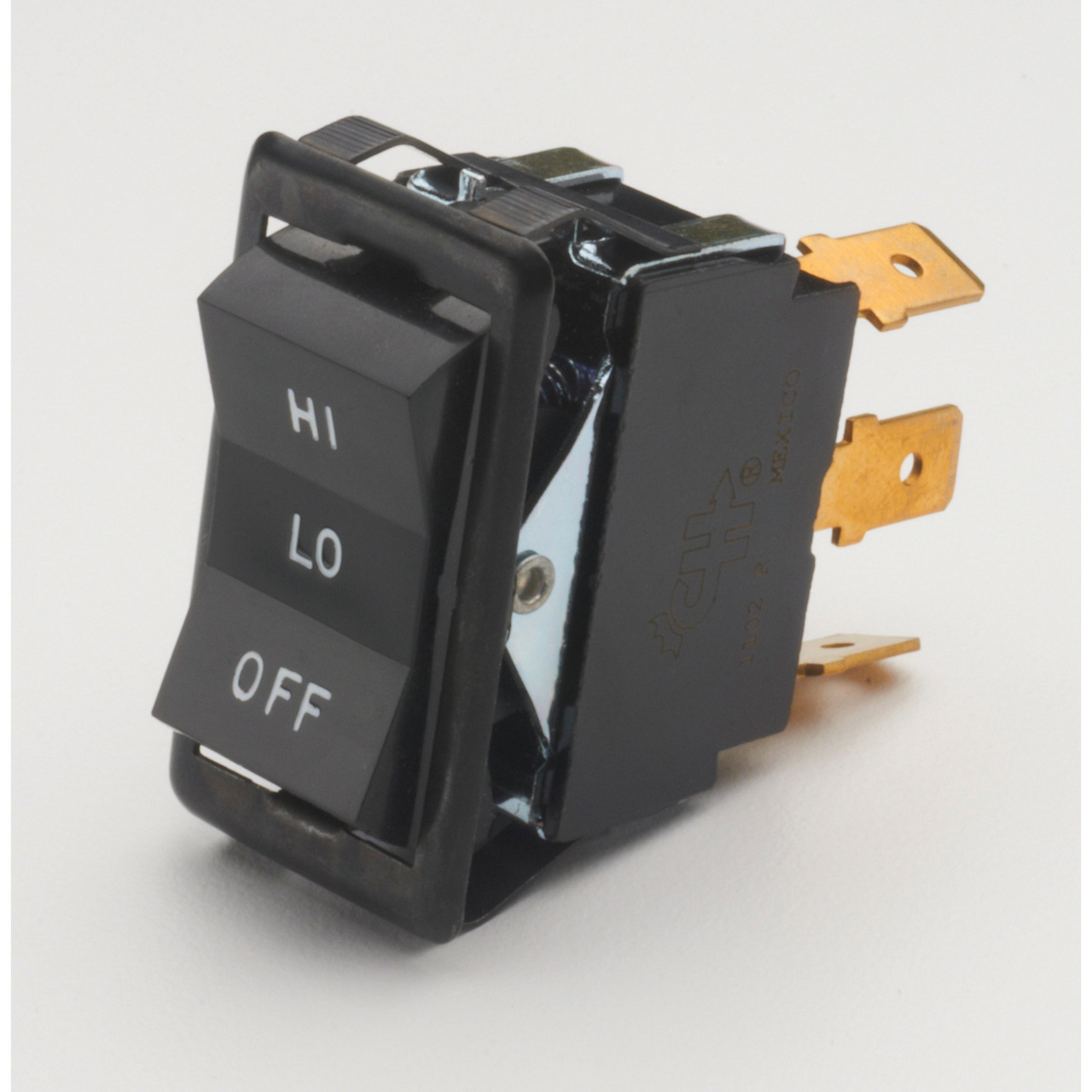

SW RKR HEATER | Series: 56000 and 57000 StandardThis product is not recommended for new designs
SPDT On-On-Off.Bright nickel plate or black bezel, narrow or wide. Plastic housing and actuator. Snap-in to fit panels 040"" through .100: (1.0 to 2.5mm). Screw or blade terminals. 25A at 12V DC. Black actuator, black bezel. Up: On, Center: On, Down: Off, three blade terminals. Imprinted “Off, Lo, High.”"
| Property | Value |
|---|---|
Actuator | Rocker Button |
Mounting Method | Panel Snap–In |
Actuator Details | Gray Plastic |
Mounting Hole Dimensions (mm)
| 36.83mm x 21.08mm |
57007-11 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 57007-11 | SW RKR HEATER |  2/19/2019 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
