CTVS009-BP
20A ROCKER SWITCH, (ON)-OFF, SPST | Series: Carling Retail Rocker Switches

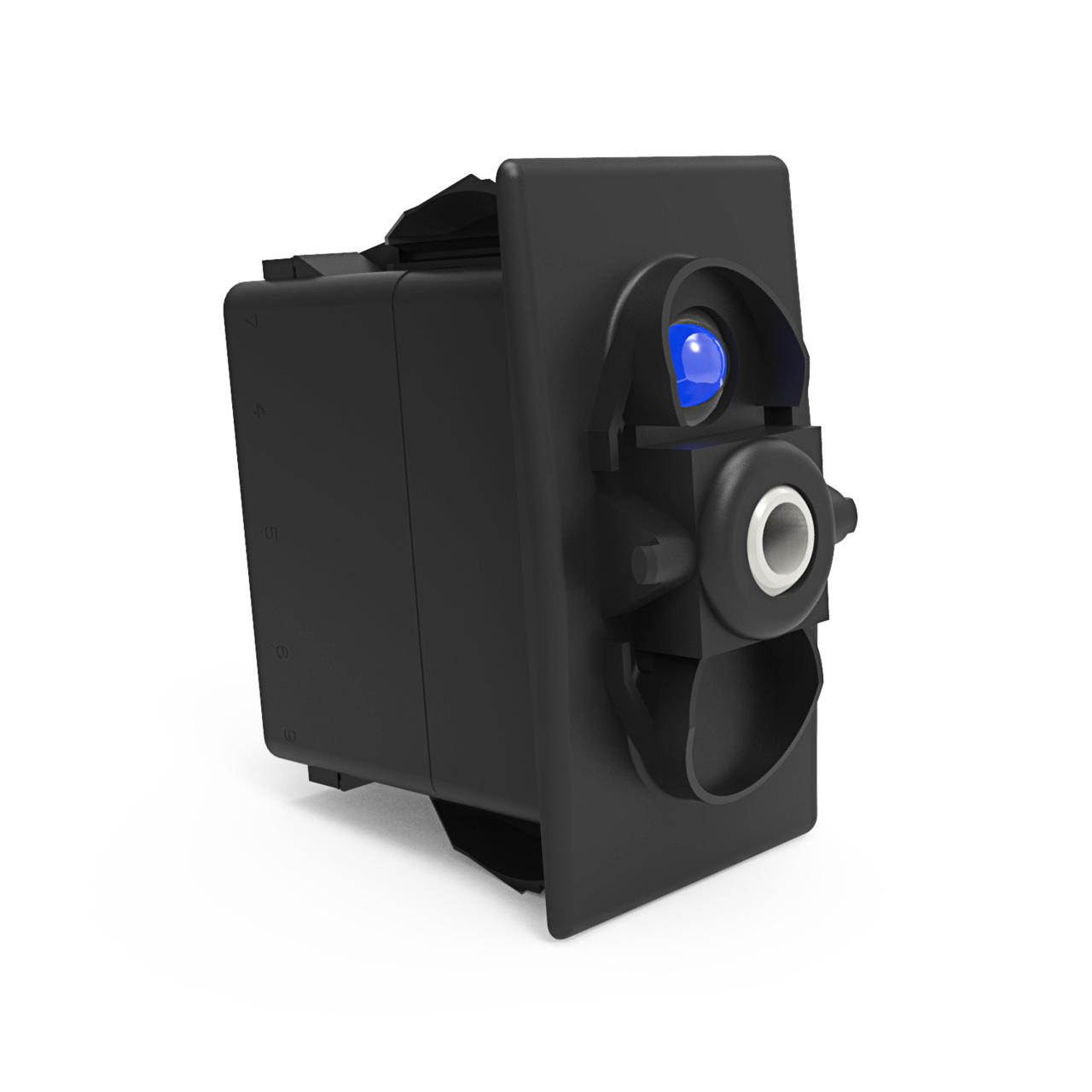

The V-Series Contura® IP66/68 Snap-In Mounted switches are renowned for their cutting-edge design, exceptional quality, and maximum reliability. With customizable options for ratings, circuits, colors, illuminations, and symbols, these single or double pole switches boast versatility. Removable actuators in various styles and colors, along with an optional plug-in terminal connector for pre-wiring, make them ideal for applications ranging from On/Off-Highway and Marine to Armored Vehicles, and Industrial Automation.
| Property | Value |
|---|---|
Mounting Method | Panel Mount |
Circuitry | SPST |
Actuator | Rocker |
Current Rating Max in Amps | 20 |
Voltage Rating (V) | 12 |
Positions | (On) - Off |
Panel Thickness | 0.03 - 0.25 (0.76 - 6.35mm) |
Input Terminals | 1/4 Tab |
Contacts | Silver |

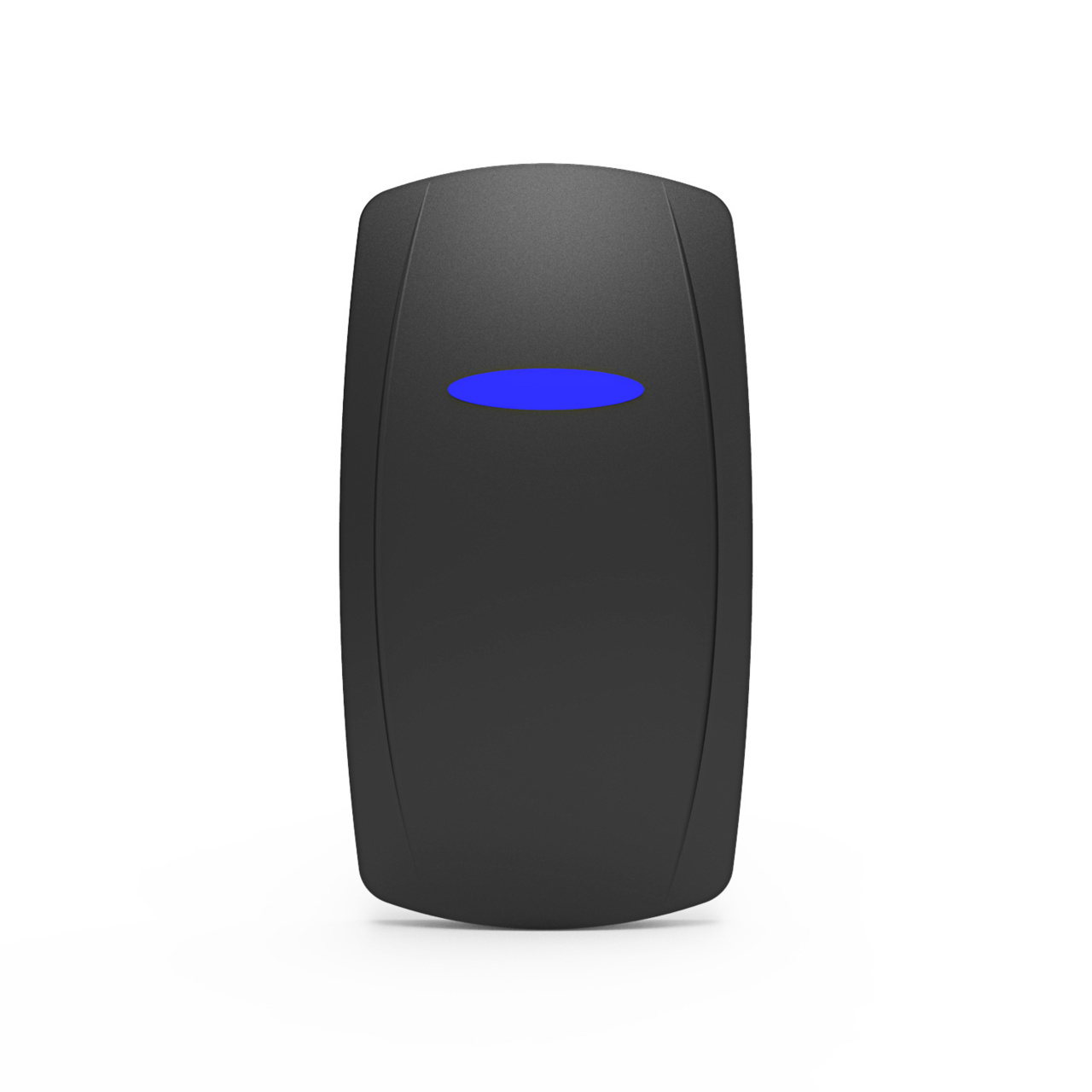

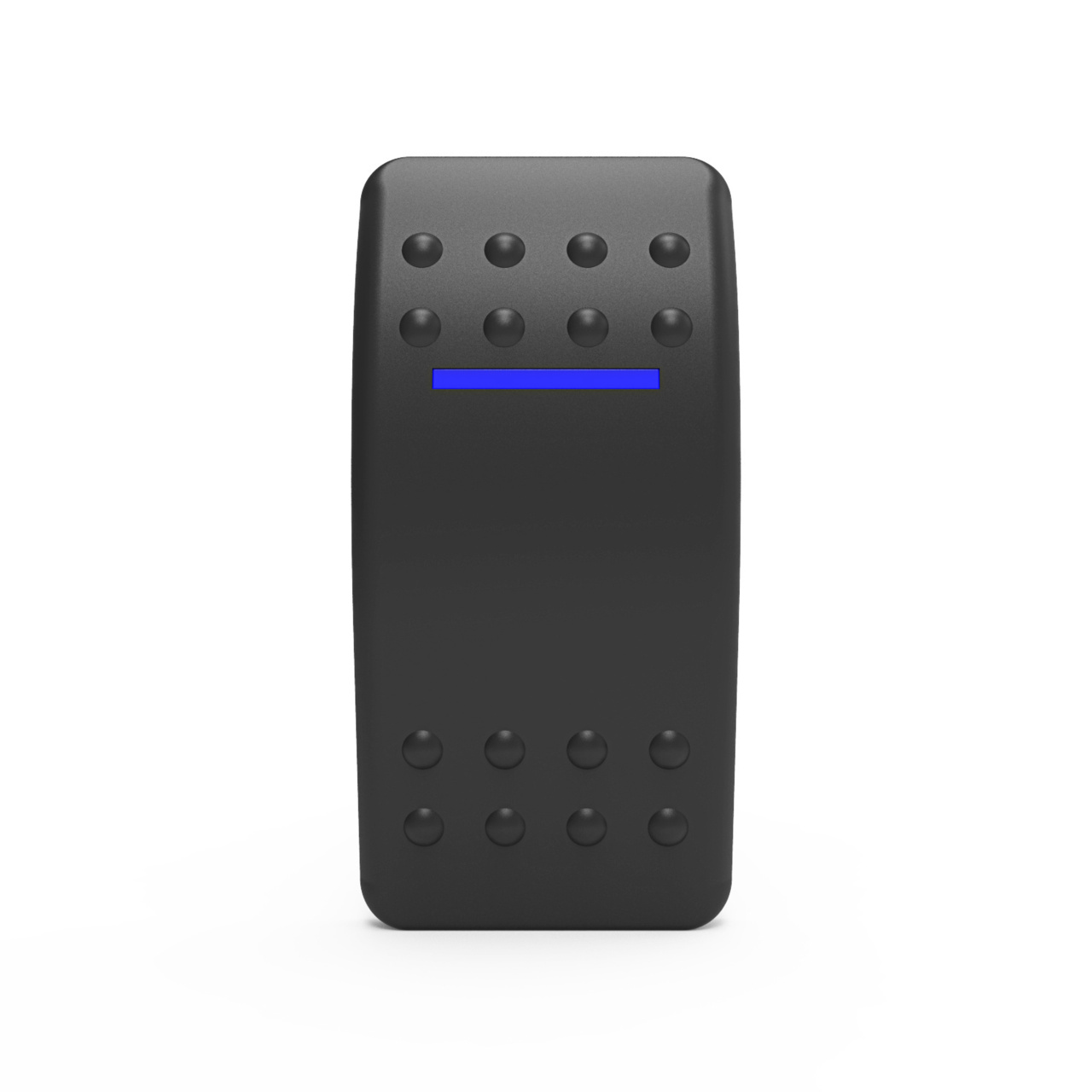

Actuator Details | Black with Blue Lens, Black with White Lens |
Housing | Nylon UL 94-V0 |
- Offering single or double pole configurations and customizable options for ratings, circuits, colors, illuminations, and symbols
- Available in sealed or unsealed versions, providing users with the option for environmental protection

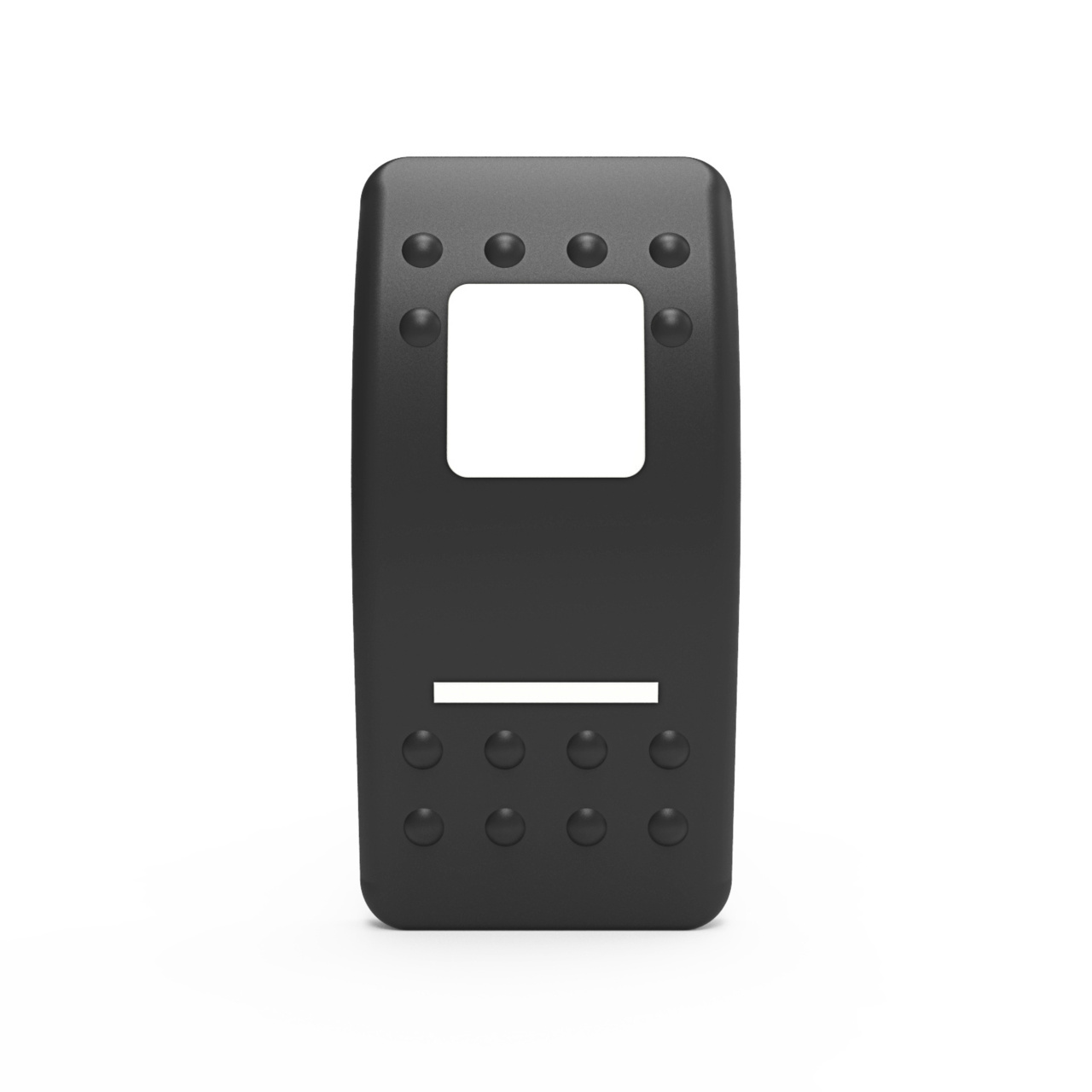

- Many switches featuring removable actuators in various styles and colors, allowing for easy customization
- An optional plug-in terminal connector facilitates prewiring of wire harnesses, streamlining the installation process
- The V-Series Contura® switches offer reliable power handling with 1-2 poles and 0.4-20 amps at 12-24V DC and 125-250V AC
CTVS009-BP Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| CTVS009-BP | 20A ROCKER SWITCH, (ON)-OFF, SPST | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
