74601-12

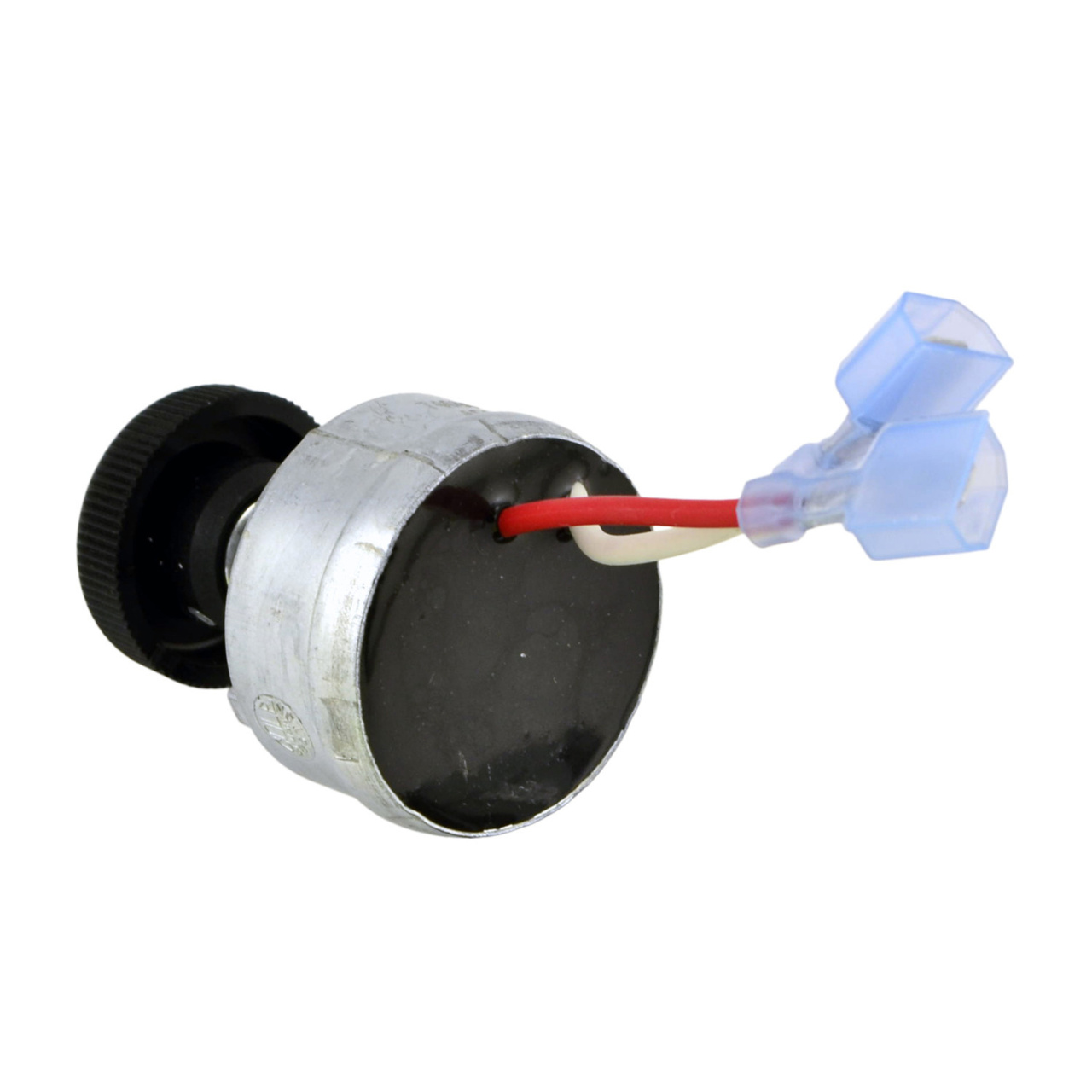

ROT SW DIMMER 7A/14.7VDC SLD | Series: Electronic Dimmer SwitchesLittelfuse Dimmer Switches are designed for universal applications within interior environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The Electronic Dimmer Switch series is designed for variable signal intensity for interior vehicle lighting.
| Property | Value |
|---|---|
Voltage Rating (V) | 12 |
Positions | Variable: Dim - Bright |
Actuator | Knob |
Actuator Details | Dimmer Symbol |
Input Terminals | TYCO Terminal #3-520106-2 |
Housing | Plated Steel |
Mounting Method | 7/16 in-28 |
- Weatherproof sealed body through sealed body through rear Hencol Seal
- Protected for Reverse Polarity (not load sensitive)
74601-12 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 74601-12 | ROT SW DIMMER 7A/14.7VDC SLD | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
