551802

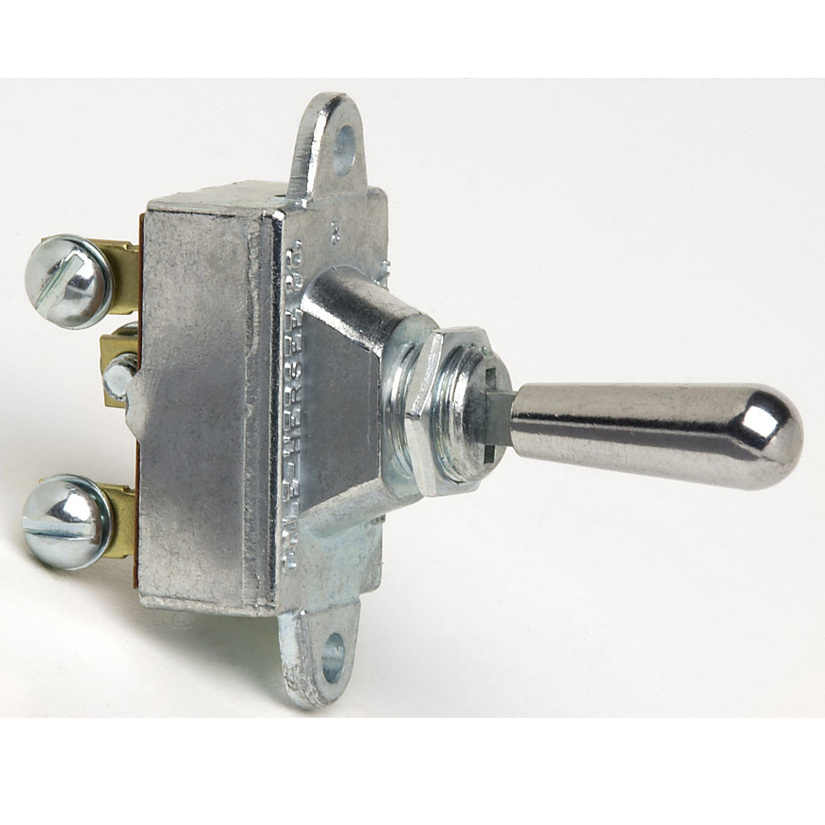

SW TGL SPDT CO | Series: 551 Extra Heavy Duty Series
Universal application. Diecast housing. For stem- or bracket-mounting. 15/32" -32 thread mounting stem. with keyway. Brackets: .170" (4.3mm) diameter holes. 1.72" (43.7mm) on centers. Fits panels up to 3/16" (4.8mm) thick. Chrome plated brass handle. 1 1/16" long (27.0mm). Blade terminals. Plated steel hexnut. 20A at 6-12V DC. Up: Mom On. Center: Off. Two blade terminals.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 20 |
Voltage Rating (V) | 12 |
Circuitry | SPDT |
Positions | On - Off - On |
Input Terminals | 3 Screw |
Housing | Zinc-Plated Diecast |
Actuator | Standard / Long |
Actuator Details | Nickel-Plated Brass - 38.1 |
Mounting Method | Nickel Plated Brass Face and Hex Nut |
Panel Thickness | Up to 3/16 (4.76mm) thick |
Contacts | Copper and Bronze |
