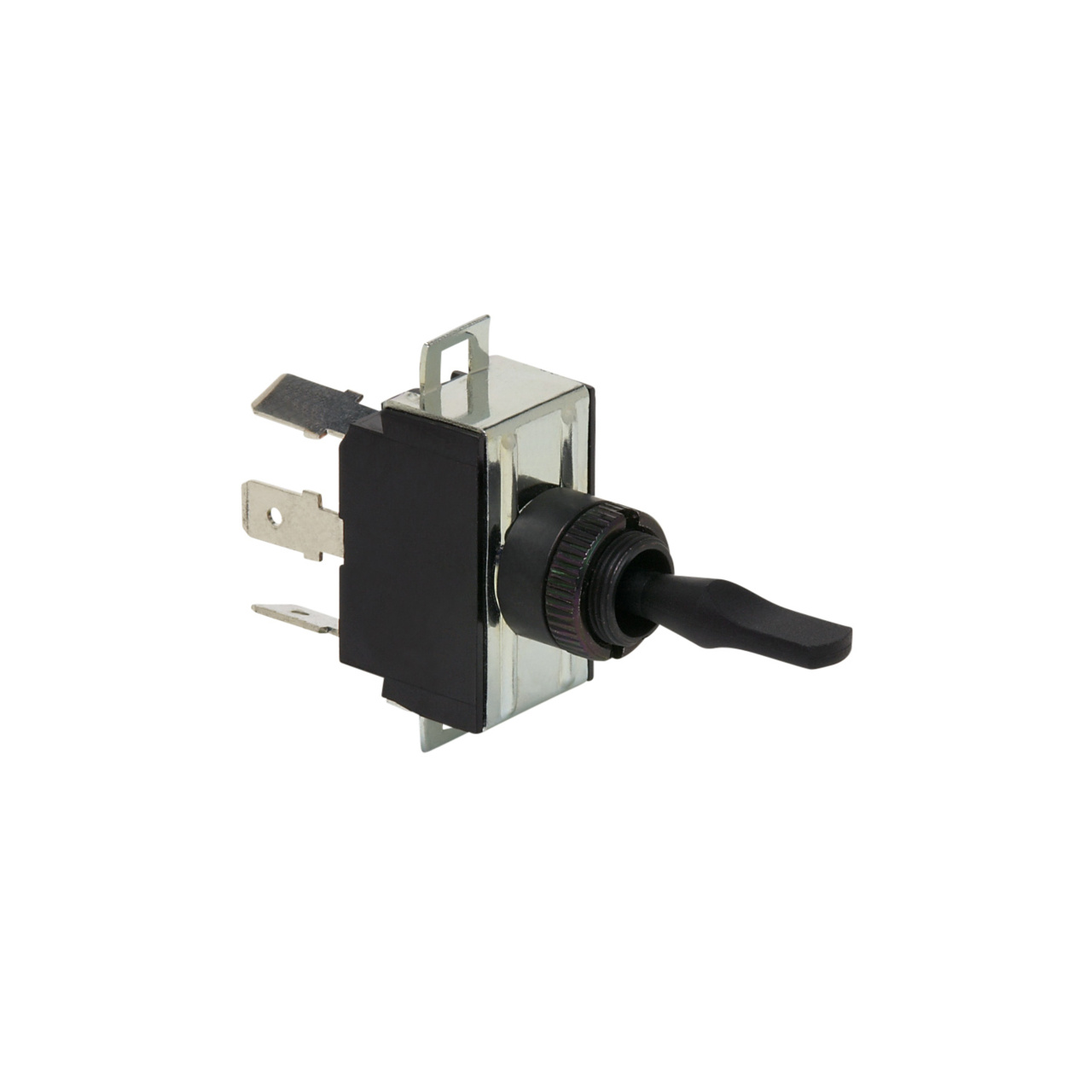

59024-38
SW TGL DP | Series: 59024-00 Freightliner Replacement SeriesTerminals are arranged to match OEM wiring connectors. 59024-00 Series available with or without brackets. Silver contacts. Black phenolic switch housing with metal cap. 15/32" -32 thread mounting stem. Fits panels to .093" (2.4mm) with spacer provided, or to .25" (6.4mm) without spacer. Includes mounting hardware: black metal facenut. Keyway is in the down position. Black plastic 1" (25.4mm) handle, matte finish. Six tin-plated blade terminals. 25A at 12V DC. Up: Mom On, center: On, Down: On.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 25 |
Voltage Rating (V) | 12 |
Circuitry | DPDT |
Positions | Momentary On - On - Momentary On |
Input Terminals | 6 Tin-Plated Blade |
Housing | Black Plastic with Metal Cap |
Actuator | Paddle |
Actuator Details | Black Plastic - 25.4mm |
Mounting Method | Black Finished Face Nut |
Panel Thickness | .093 (2.4mm) to .25 (6.4mm) thick |
Contacts | Silver |
Mounting Hole Dimensions (in) | 0.46875 |
Mounting Hole Dimensions (mm)
| 11.9 |
