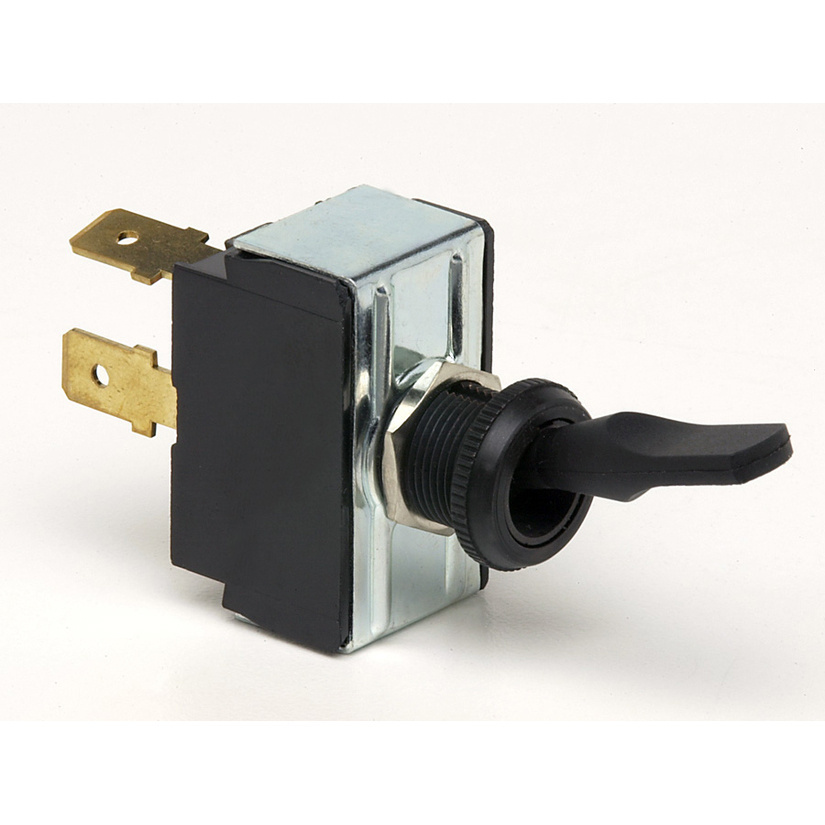

59024-102
SW TGL 2POS SPST MOM | Series: 59024-000 SeriesSilver contacts, 15/32" -32 thread mounting stem. Fits panels up to 1/4" (6.4mm) thick. Includes mounting hardware: black knurled facenut, hexnut. Keyway is in the down position. 1" (25.4mm) handle, black plastic, matte finish. 25A at 12V DC.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 25 |
Voltage Rating (V) | 12 |
Circuitry | SPST |
Positions | Momentary On - None - Off |
Input Terminals | 2 Blade |
Housing | Black Plastic with Metal Cap |
Actuator | Paddle |
Actuator Details | Black Plastic - 25.4mm |
Mounting Method | Plastic Bezel |
Panel Thickness | Up to 1/4 (6.35mm) thick |
Contacts | Silver |
Mounting Hole Dimensions (in) | 0.46875 |
Mounting Hole Dimensions (mm)
| 11.9 |
59024-102 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 59024-102 | SW TGL 2POS SPST MOM |  | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
