08096562

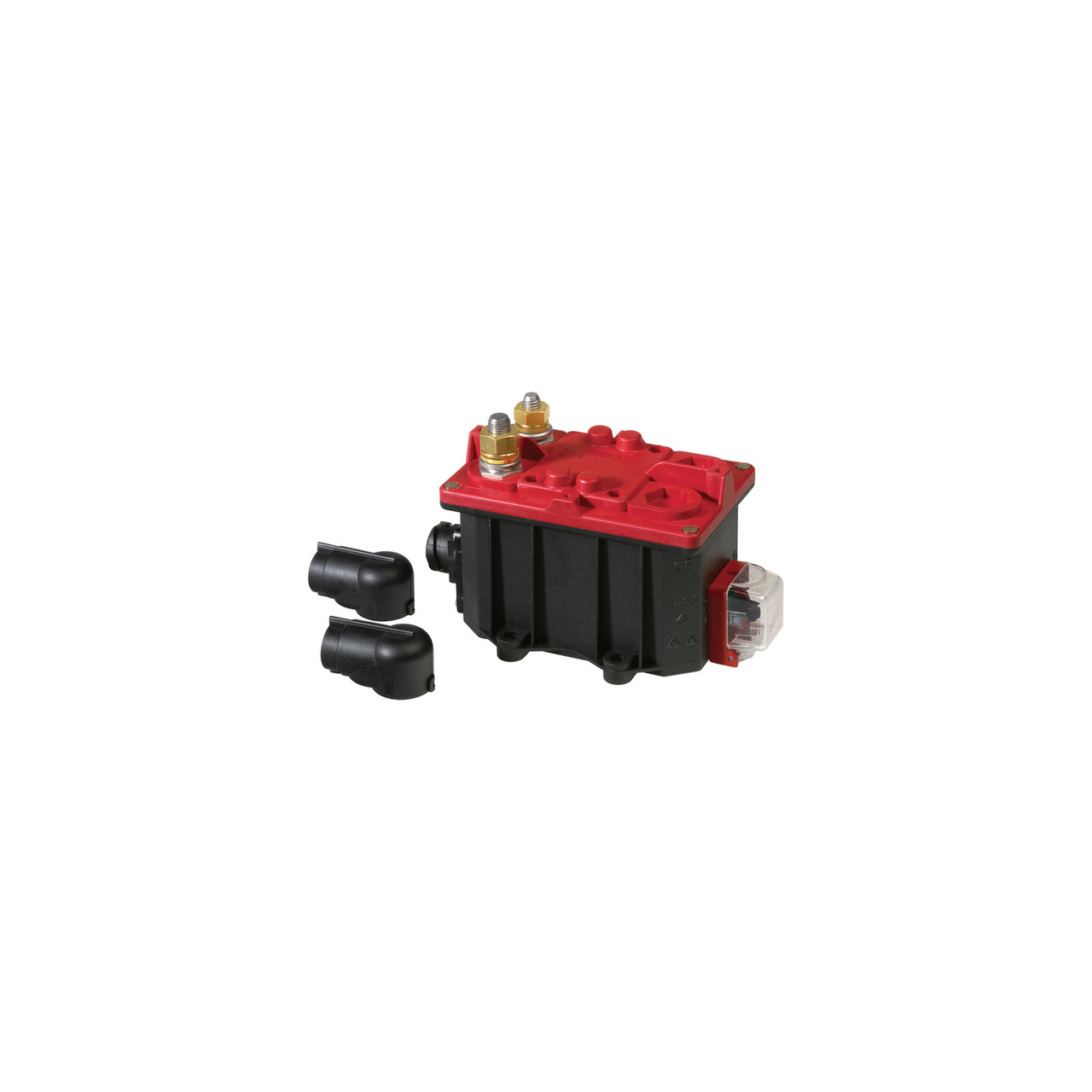

Electrical Bms Tgc/De-I 24V(+) | Series: 08096500
Designed for ADR-equipped vehicles in accordance with ADR regulations on the subject of road transport of dangerous materials, the 08096500 Series 32V 250A Electronic SPST ADR Remote Battery Disconnect Switch is ideal for material handling, emergency vehicles, heavy trucks, and other commercial vehicles.
In the event of a short circuit, the electronic control unit of the battery isolator relay detects the drop of voltage and immediately commands the opening of the contacts and the disconnection of the battery to protect the electric and electronic devices fitted to the vehicle.
This configuration of the electronic battery isolator switch (08096562) comes with an IP65 dust-tight, splash-resistant rating and positive disconnection.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 250 |
Current Rating (inrush) in Amps | 2500 |
Voltage Rating (V) | 24 |
Hardware | 2500 |
Intermittent Time | IP65 |
Mounting Method | 24 |
Temperature Minimum Celsius | 85 |
- Continuous current rating of 250 A, intermittent current rating of 1.5 kA for 60 s, and short circuit rating of 2 kA for 30 s
- Remote-controlled battery disconnect with 8-way circular connector
- Positive disconnection
