08097364
Bms Tgc/Rmcde-L 12V Sep.Feed. (+E-) | Series: 08097360

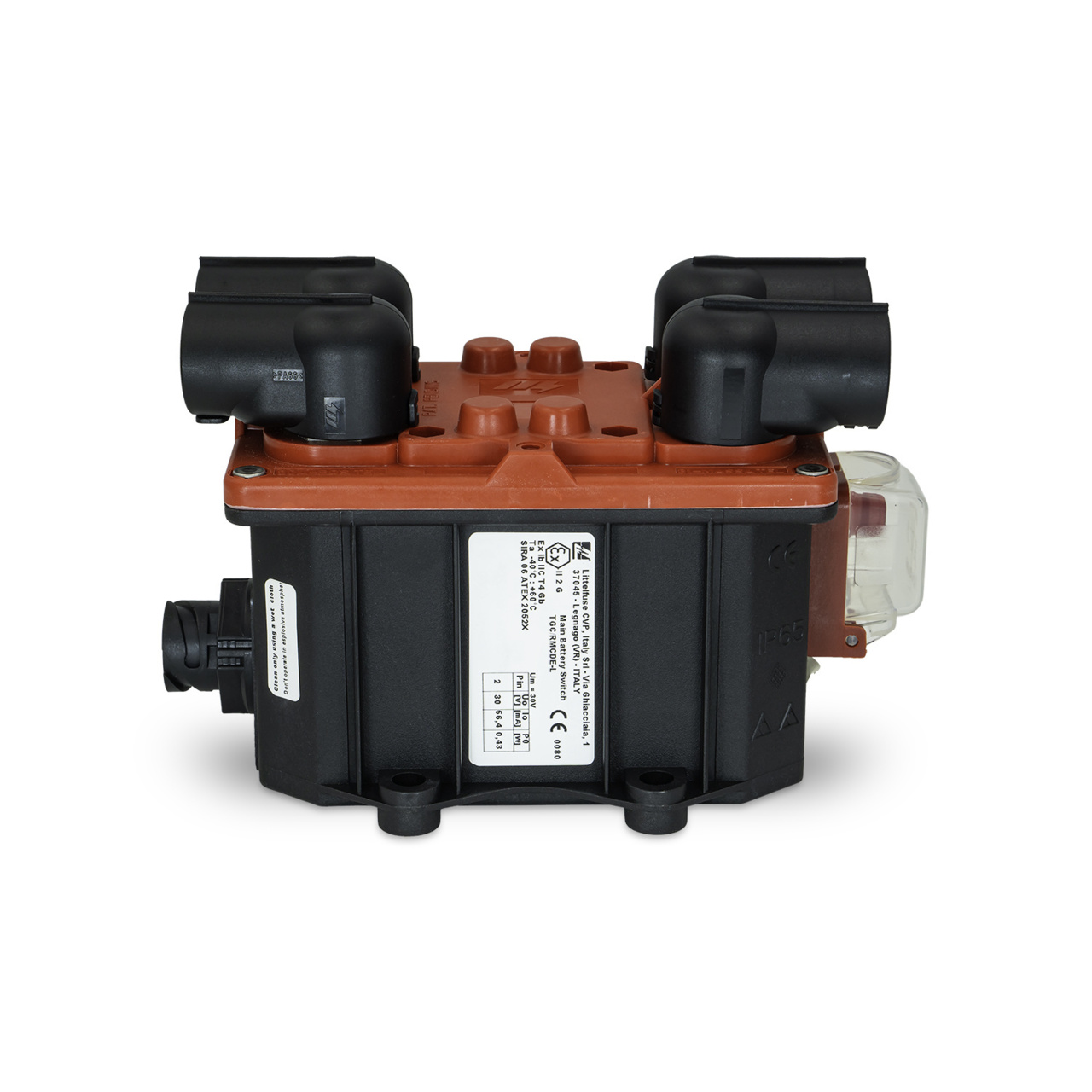

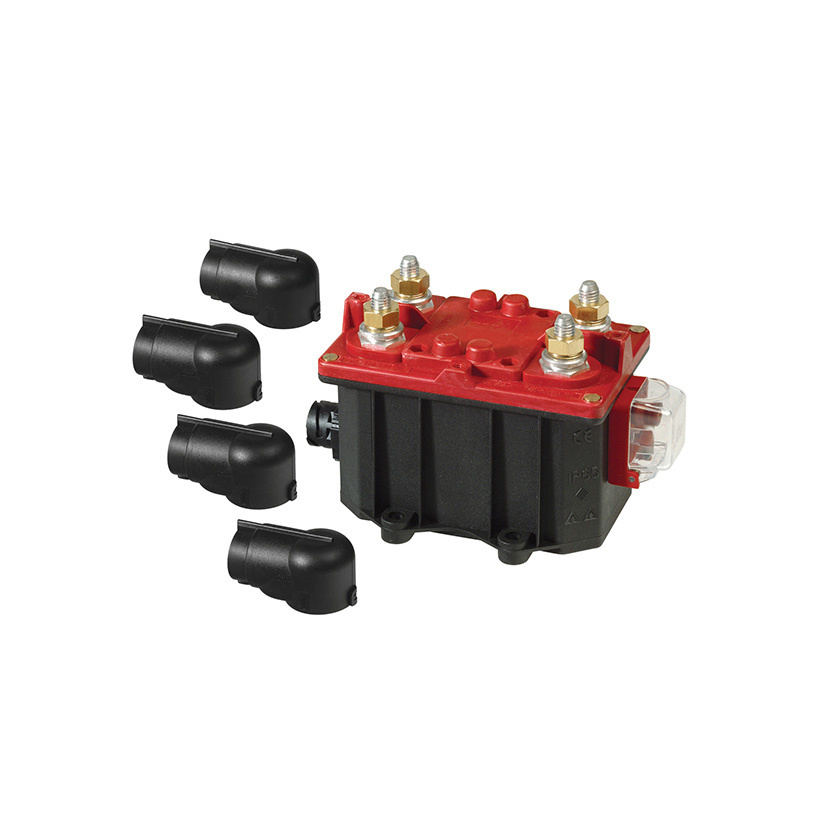

The 08097360 Series 16V 250A Electronic Bi-Stable Double-Pole Remote Battery Disconnect Switch is operated with an emergency ON-Off switch from the vehicle's cab. This is one of the features that allow it to function as an ADR battery switch in vehicles carrying hazardous loads.
The double-pole battery disconnect switch is bi-stable with zero consumption, which means it absorbs current only during the commuting phase when the electrical circuit is switched ON or OFF and there is no further consumption to keep the ON or OFF status.
This configuration of the electronic battery disconnect switch (08097364) features a 12V coil and a 3-second emergency cutoff delay. The double-pole disconnect is dust-tight and protected against water to IP65/IPX4K/IPX9K standards.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 250 |
Current Rating (inrush) in Amps | 2500 |
Voltage Rating (V) | 12 |
Hardware | 2500 |
Intermittent Time | IP65 |
Mounting Method | 12 |
Temperature Minimum Celsius | 60 |
- 16 V maximum battery disconnect switch with a 12 V coil
- Sequentially turns off motors in vehicles equipped with pneumatic or electrical systems that require electrical supply until motors stop completely
- 3 s emergency cutoff delay
- 4-way DIN connector
08097364 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 08097364 | Bms Tgc/Rmcde-L 12V Sep.Feed. (+E-) | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
