08097464

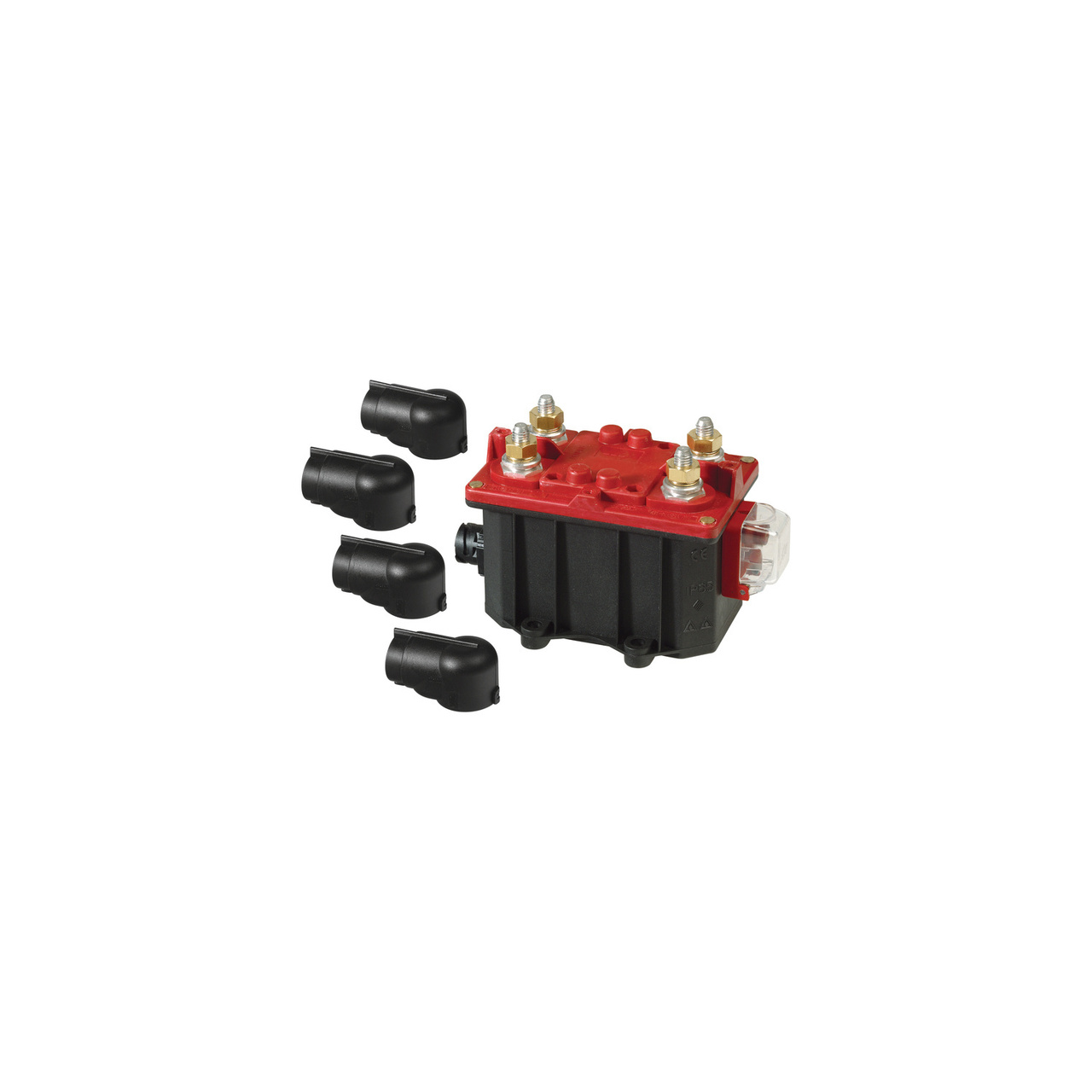

Bms Tgc/Rmcde-L 24V Sep.Feed. (+E-) | Series: 08097360
This series is the dual-pole bi-stable version of the ADR electronic battery disconnect switches.
The switch protects the vehicle in potentially explosive environments in case of emergency according the European Dangerous Goods Transport Regulation and is operated with an emergency ON-OFF switch.
Switches are bi-stable with zero consumption, that is, the device absorbs current only during the commuting phase when the electrical circuit is switched ON or OFF and no further consumption to keep the ON or OFF status.
- 250A continuous current rating
- Waterproof IP65/IPX7
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 250 |
Current Rating (inrush) in Amps | 2500 |
Voltage Rating (V) | 24 |
Hardware | 2500 |
Intermittent Time | IP65 |
Mounting Method | 24 |
Temperature Minimum Celsius | 60 |
08097464 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 08097464 | Bms Tgc/Rmcde-L 24V Sep.Feed. (+E-) | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
