24505-03
KIT LOCK_OUT MAST_DISC YELLOW | Series: 24505The 24505 Series Battery Disconnect Switch Lockout Lever Kit allows you to use a padlock (not included) to securely lock a Cole Hersee brand lever-actuated metal case master battery disconnect switch in the OFF position. Disconnect switch lockout is required for certain applications to comply with lockout/tagout safety regulations.

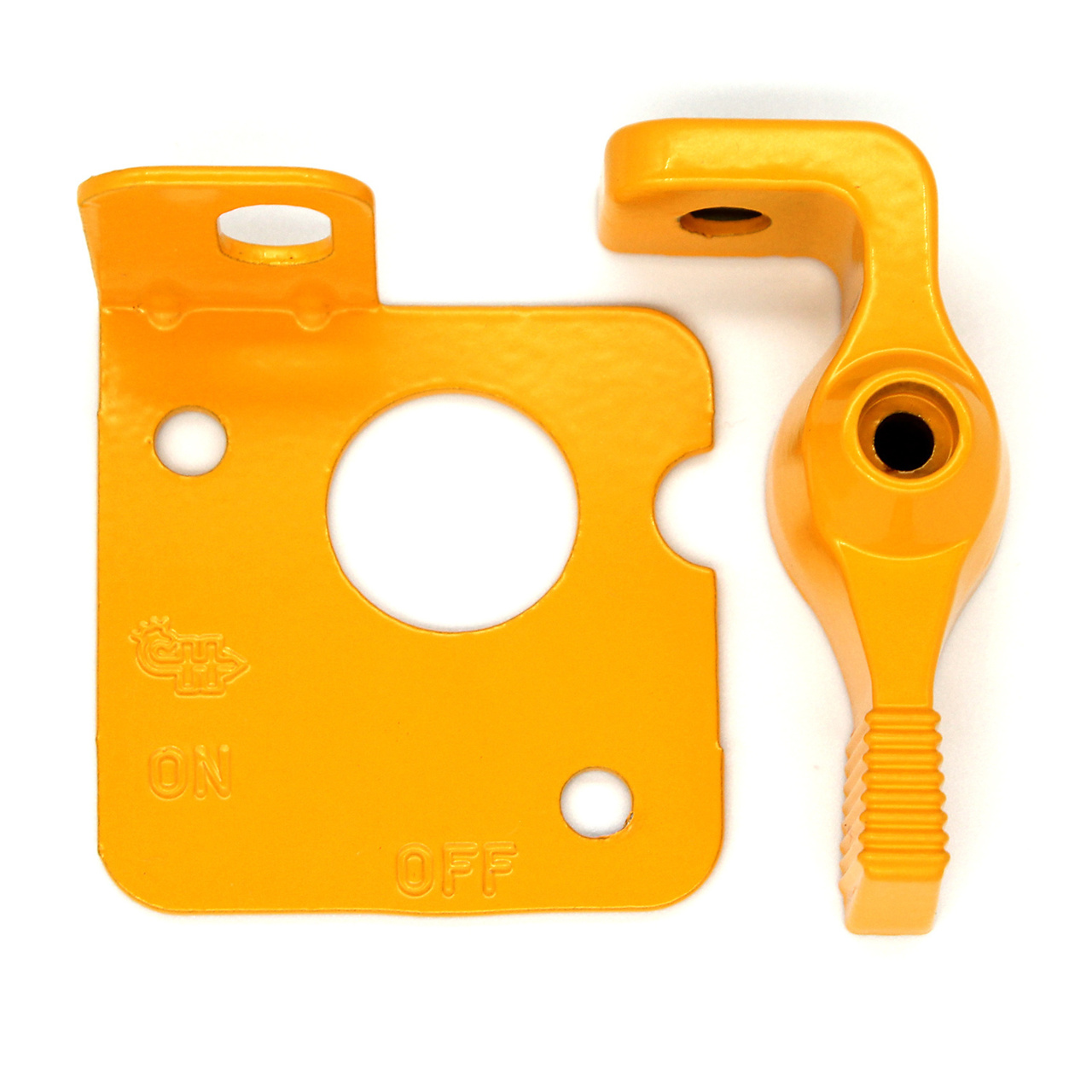

This lockout/tagout kit (24505-03) includes a steel switch lockout bracket and a die-cast lever that are color-matched in a yellow powder-coated finish. In addition, this configuration of the kit accommodates a 7.9 mm lock shackle size.
| Property | Value |
|---|---|
Actuator | Diecast Lever |
Mounting Hole Dimensions (in) | 0.218 |
Mounting Hole Dimensions (mm) | 5.54 |
Mounting Stem | 3/4in dia / 19.1mm dia |
- Yellow powder-coated steel switch lockout bracket and color-matched, powder-coated die-cast lever
- 7.9 mm lock shackle size
