75907

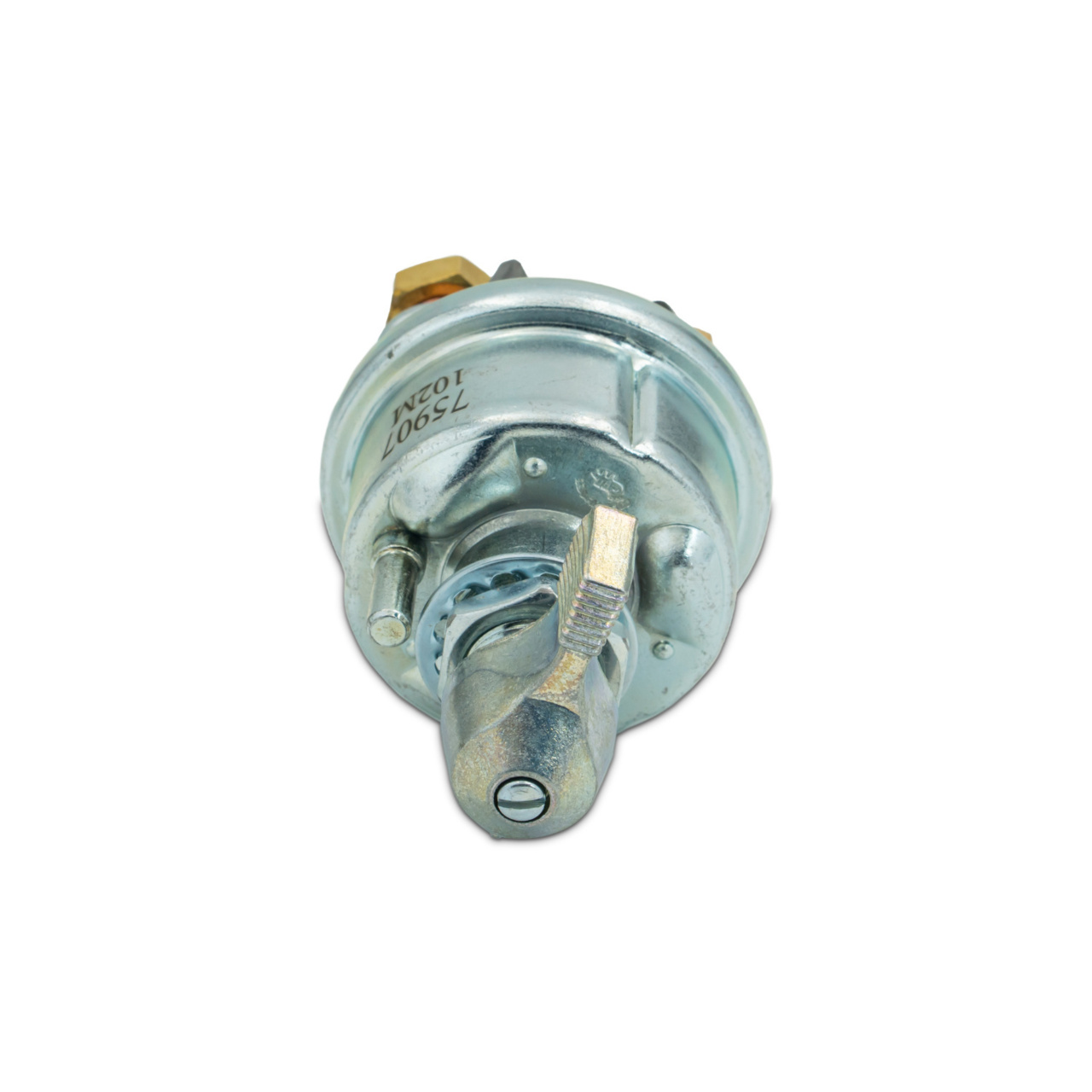

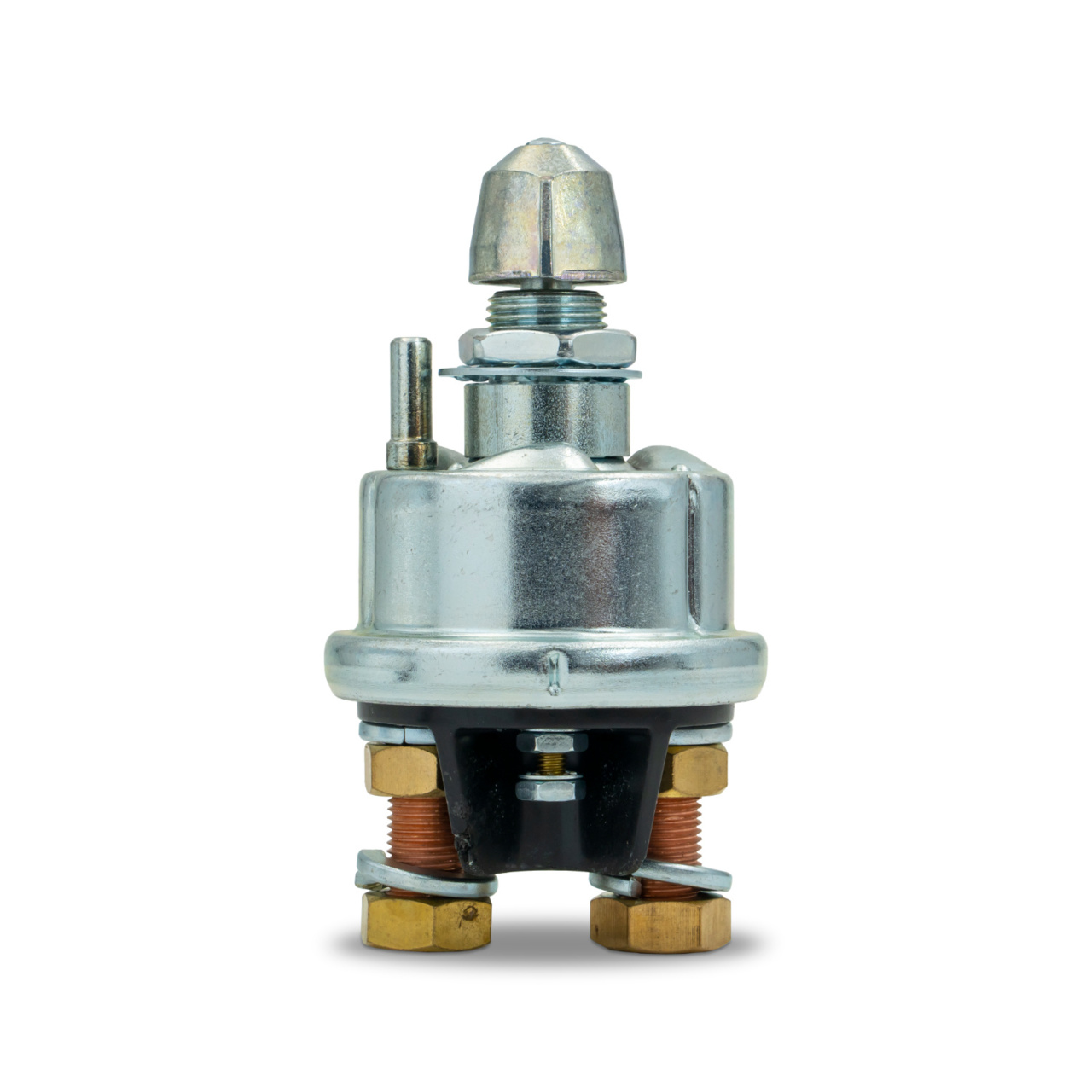

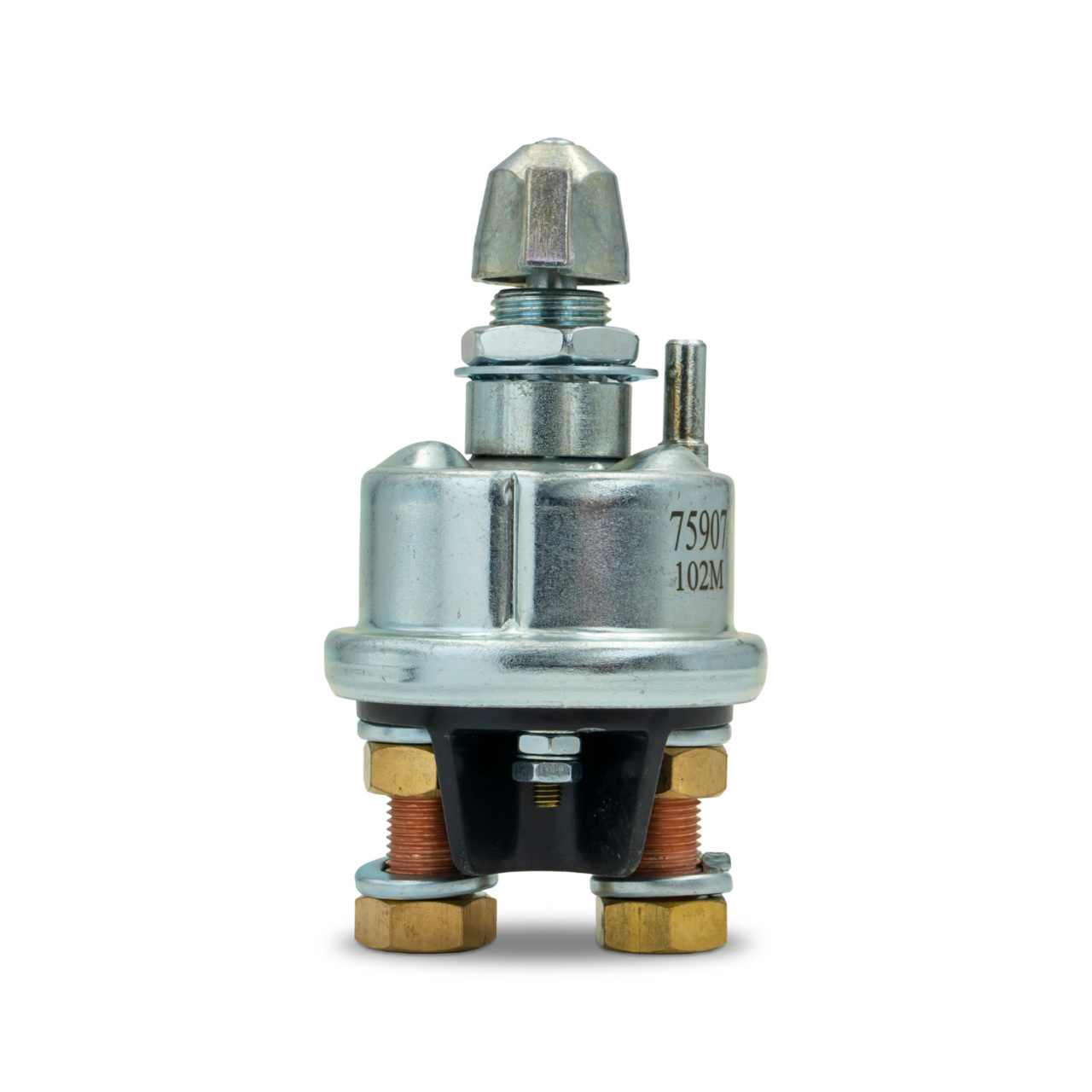

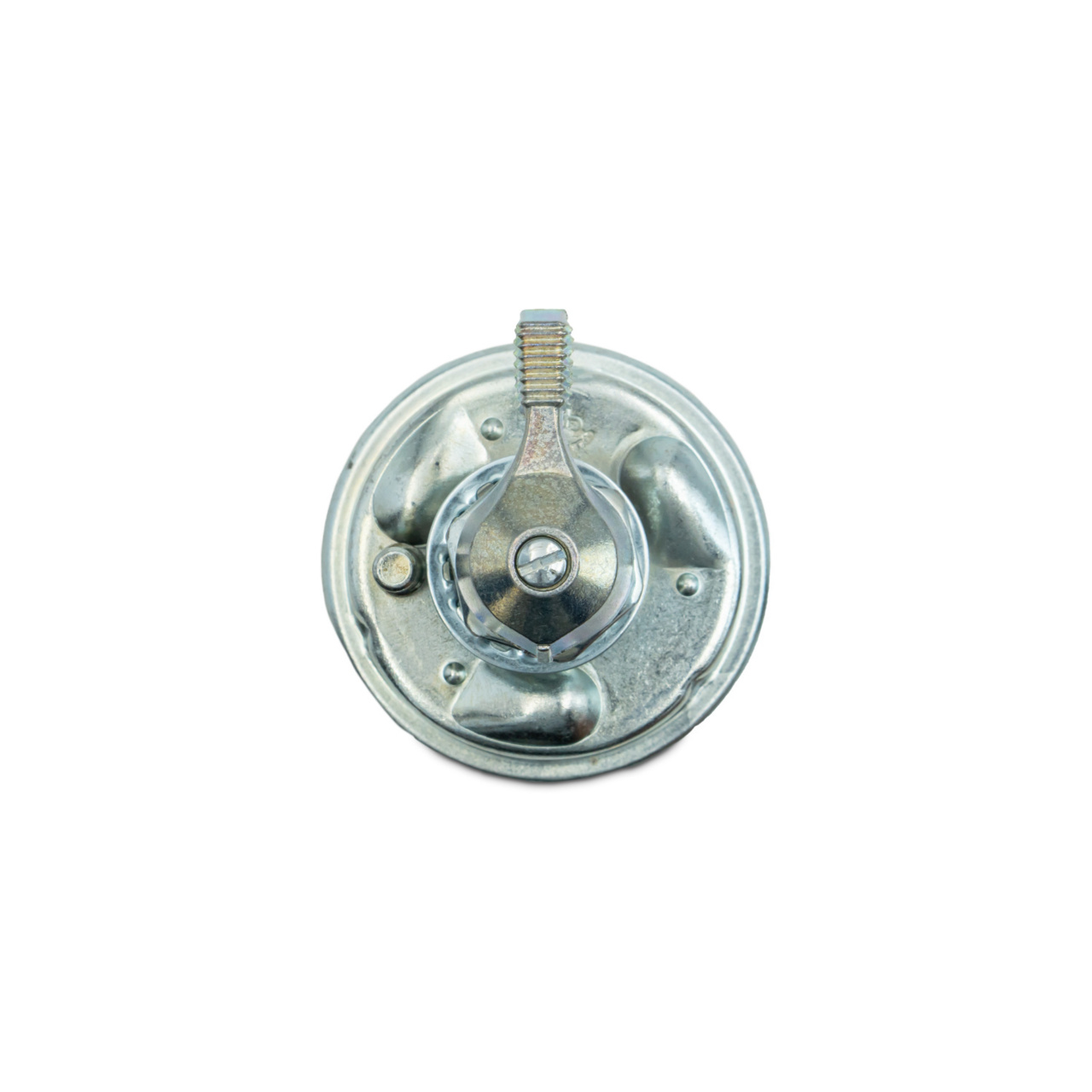

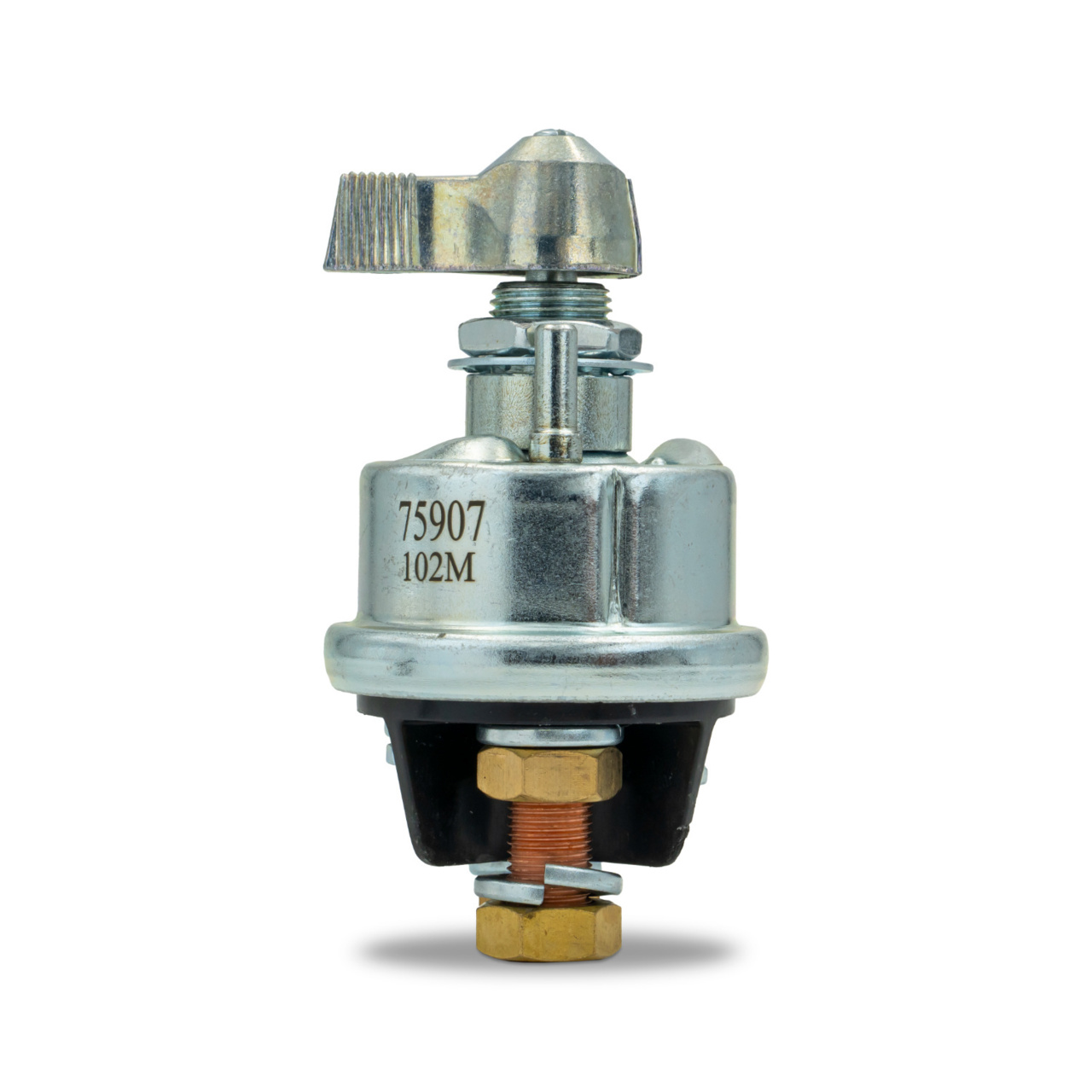

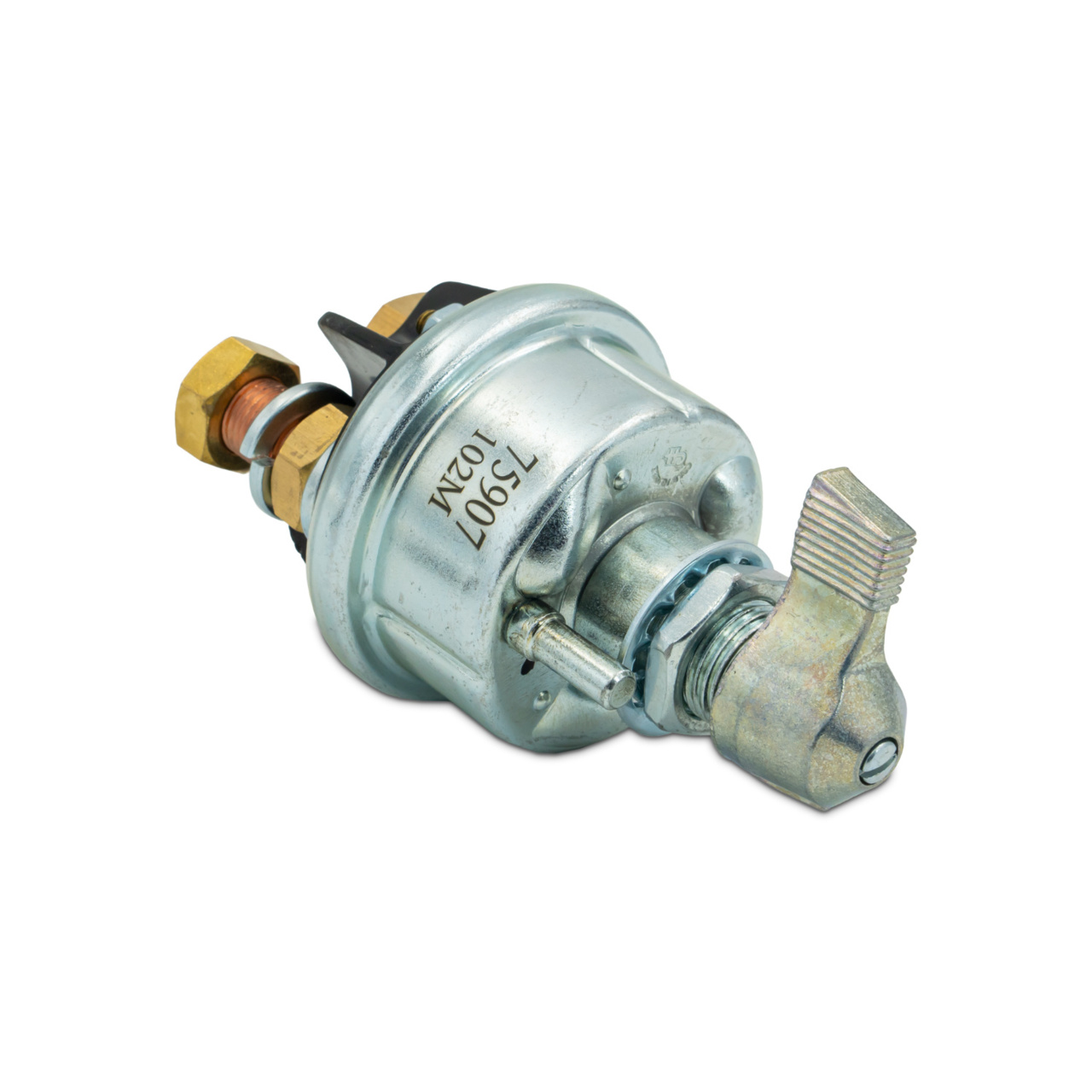

SW ROT 2POS LEVER | Series: 75900 Double PoleThe 75900 Double Pole Series 36 V High-Amp DPST Master Battery Disconnect Switch is designed to handle two loads. This allows you to control two systems, such as the battery and the alternator or generator field circuit.

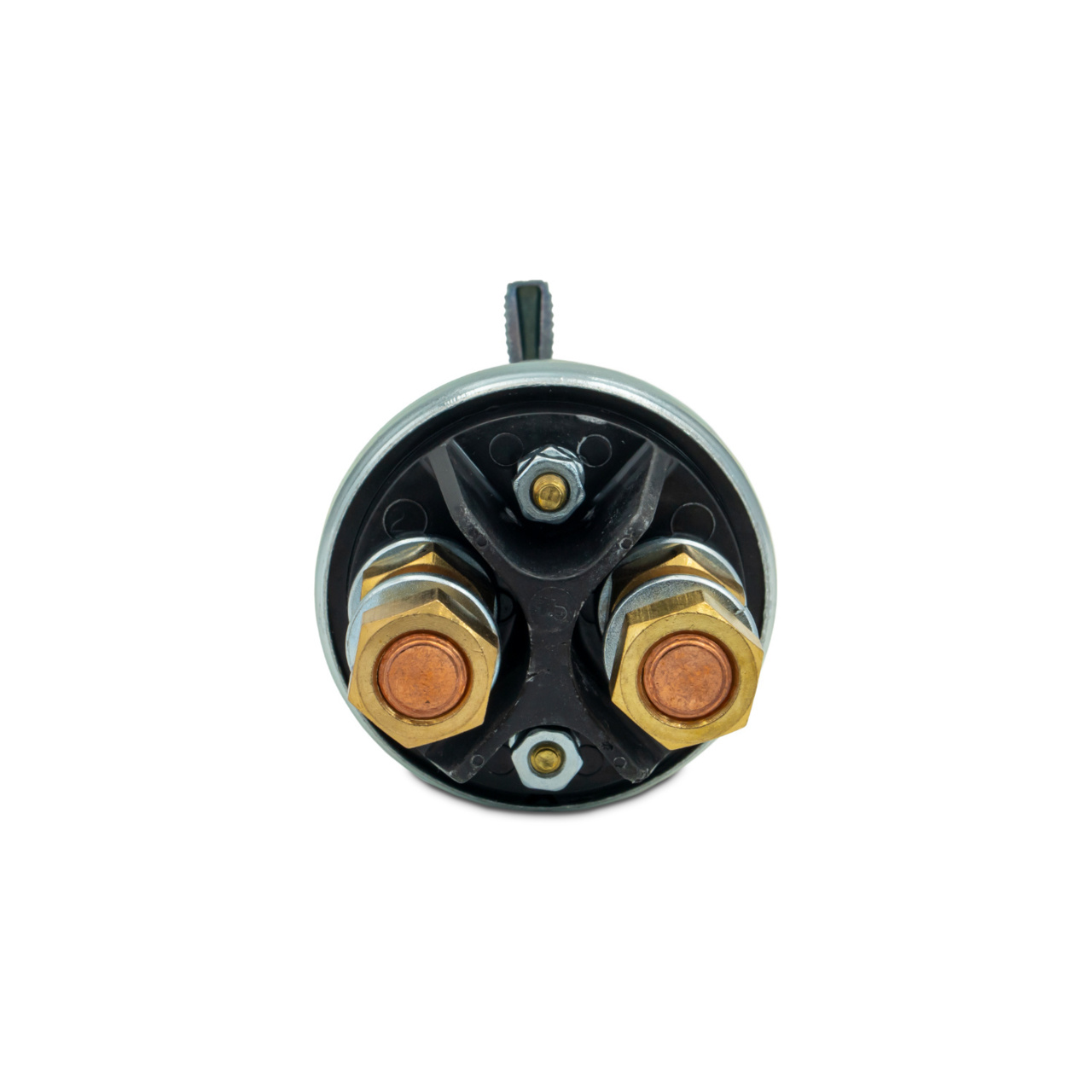

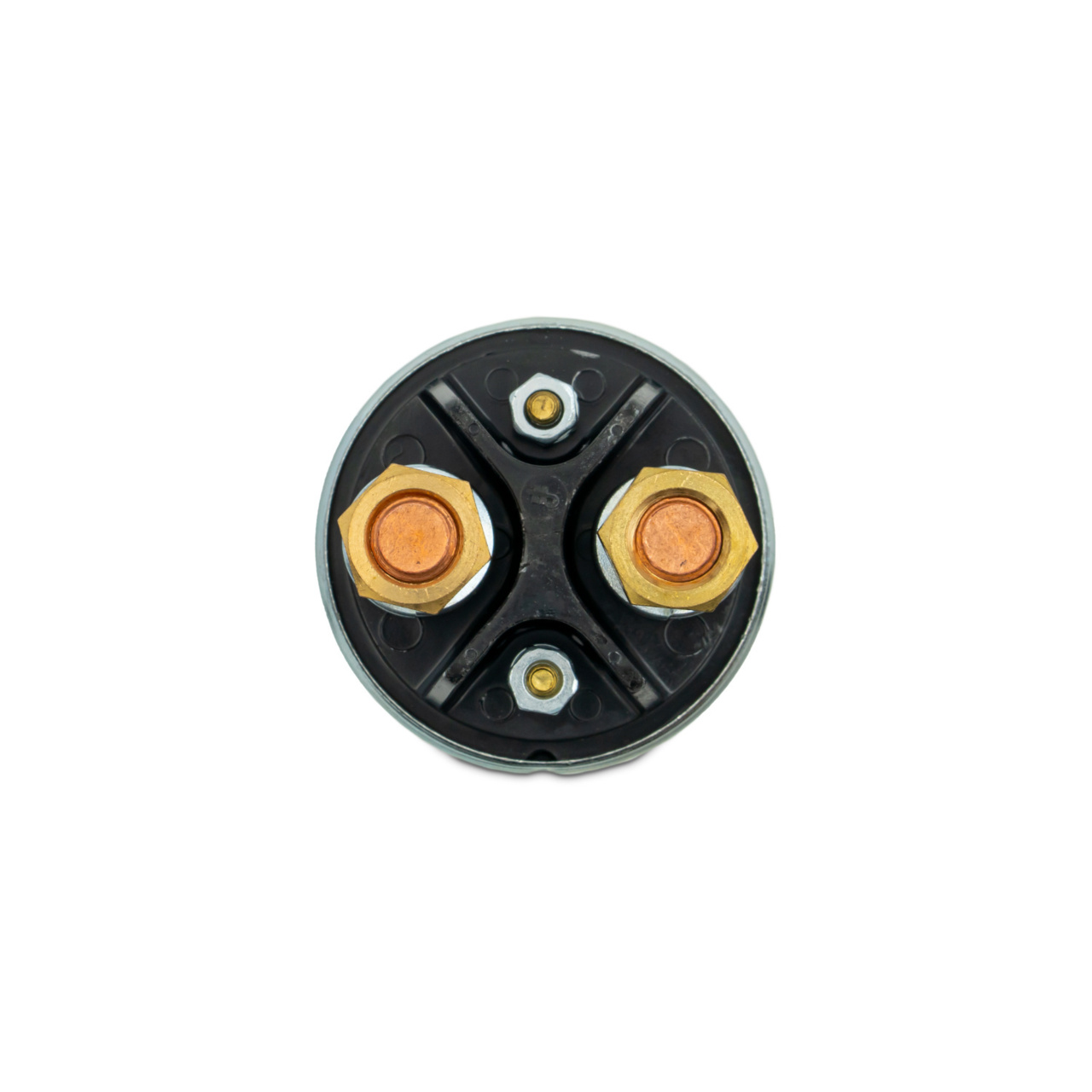

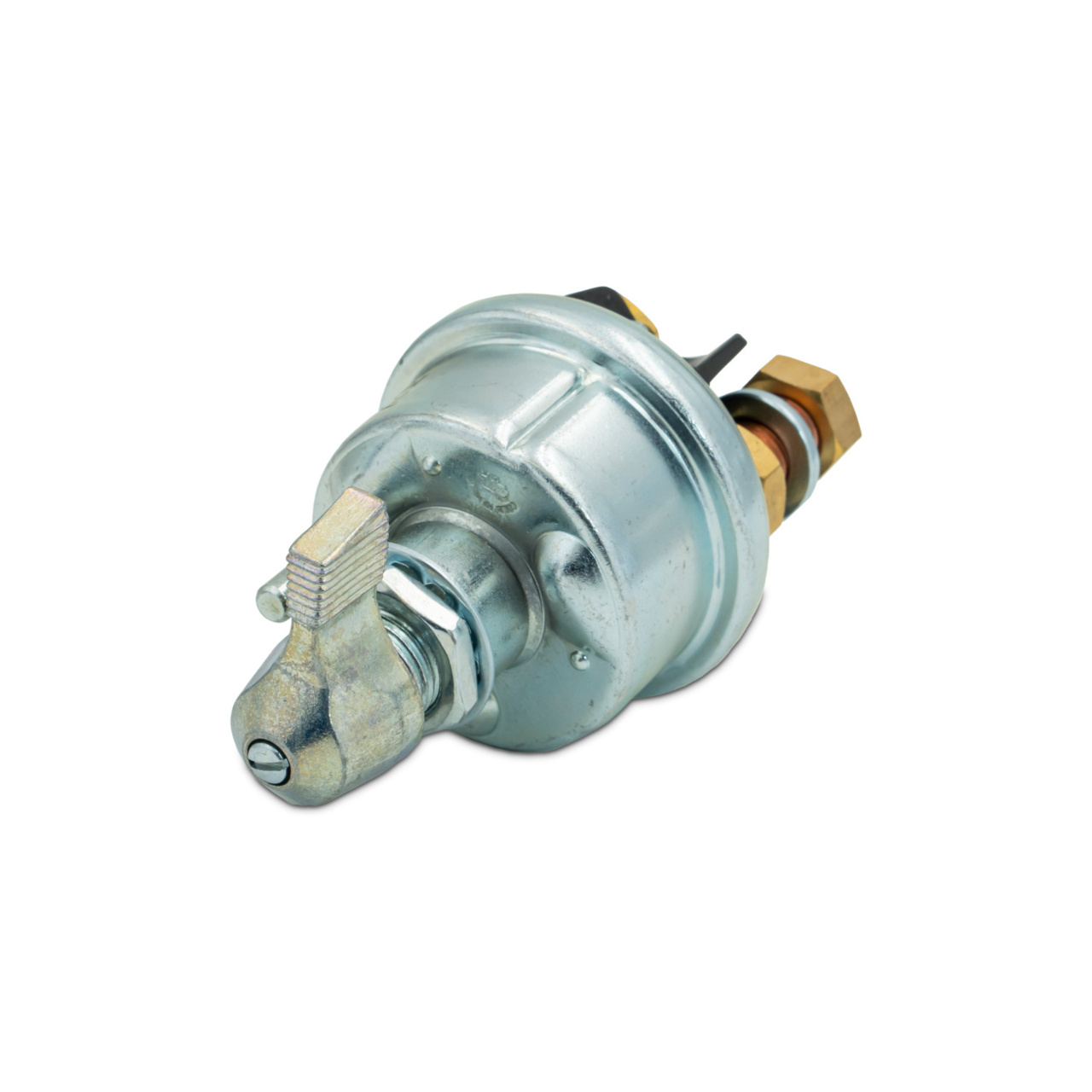

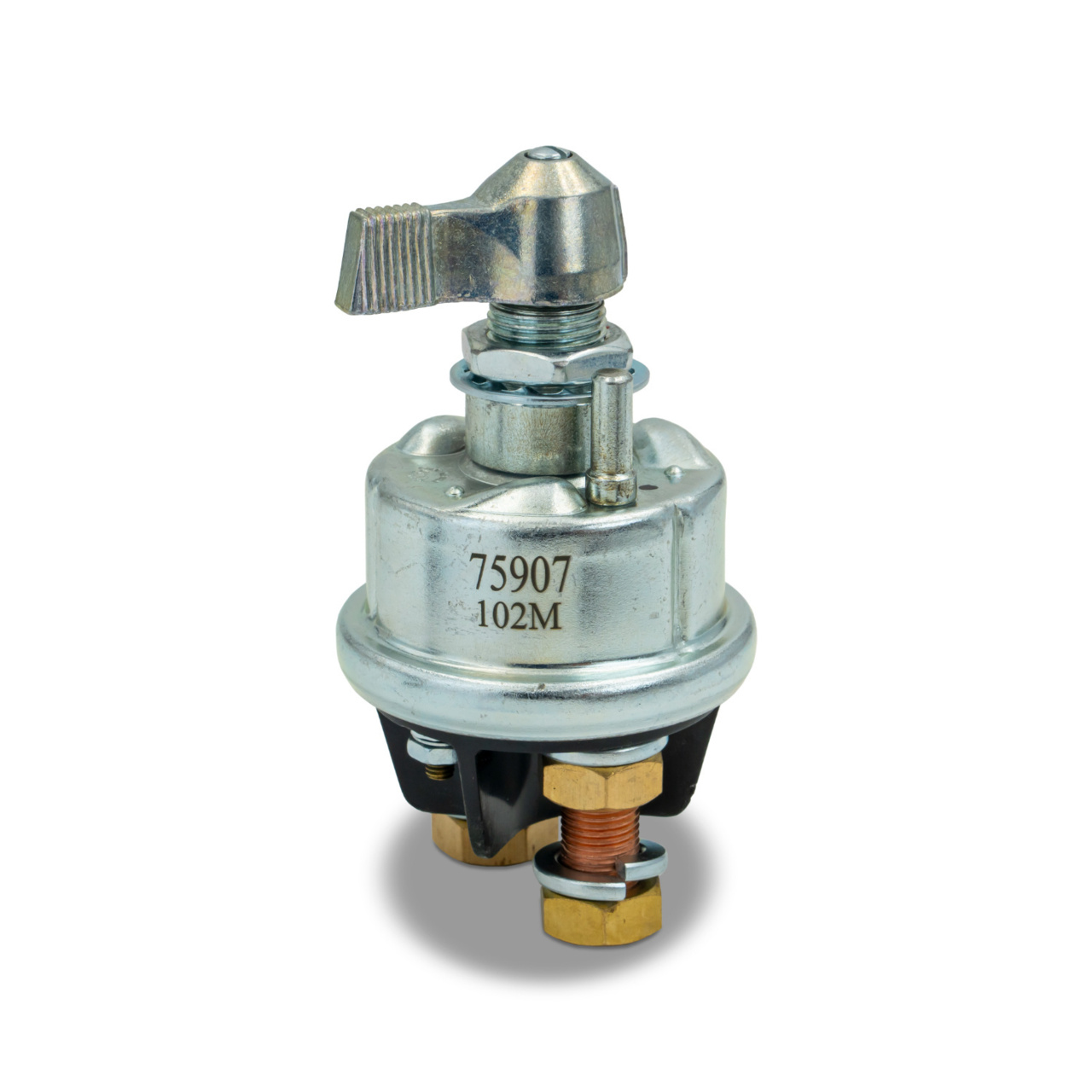

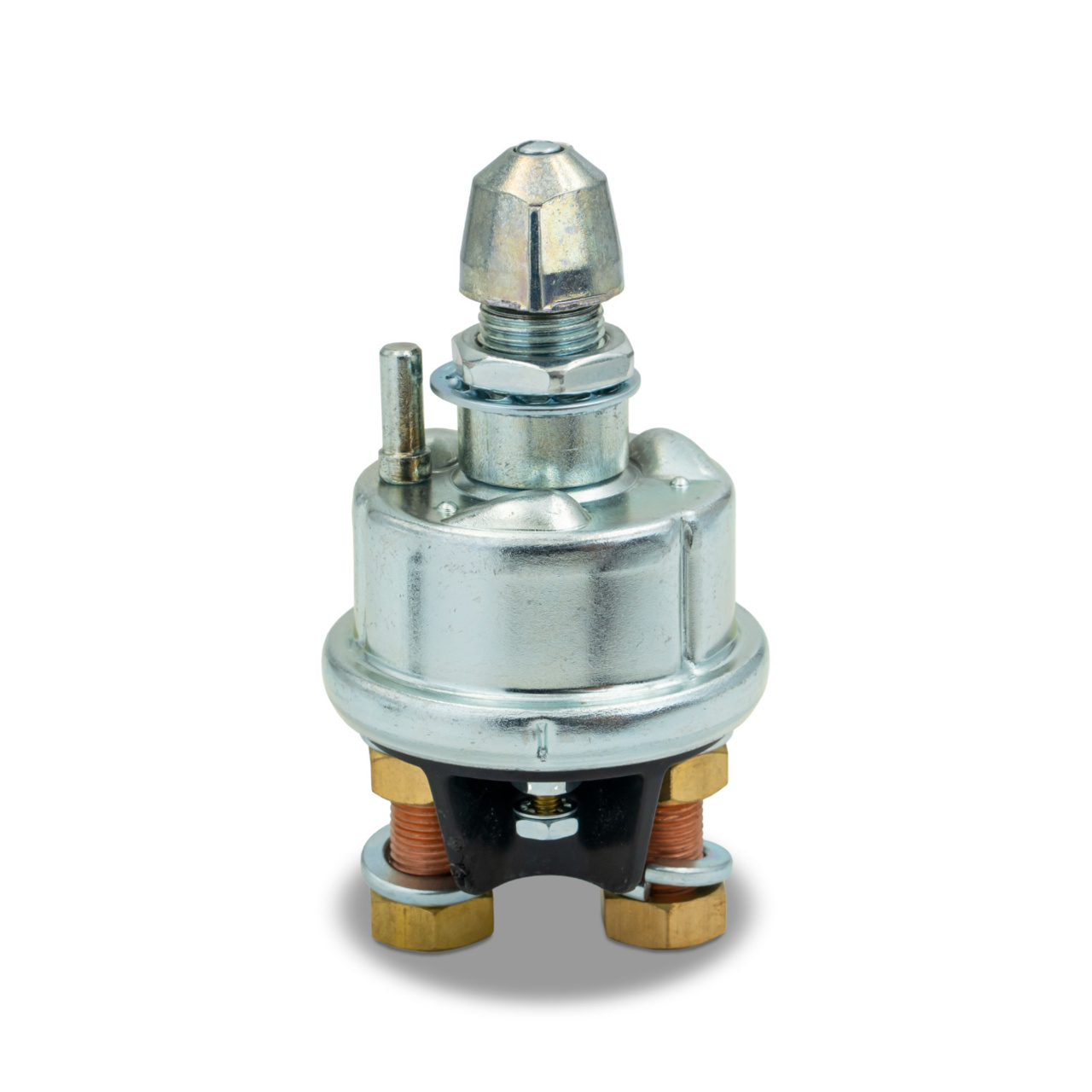

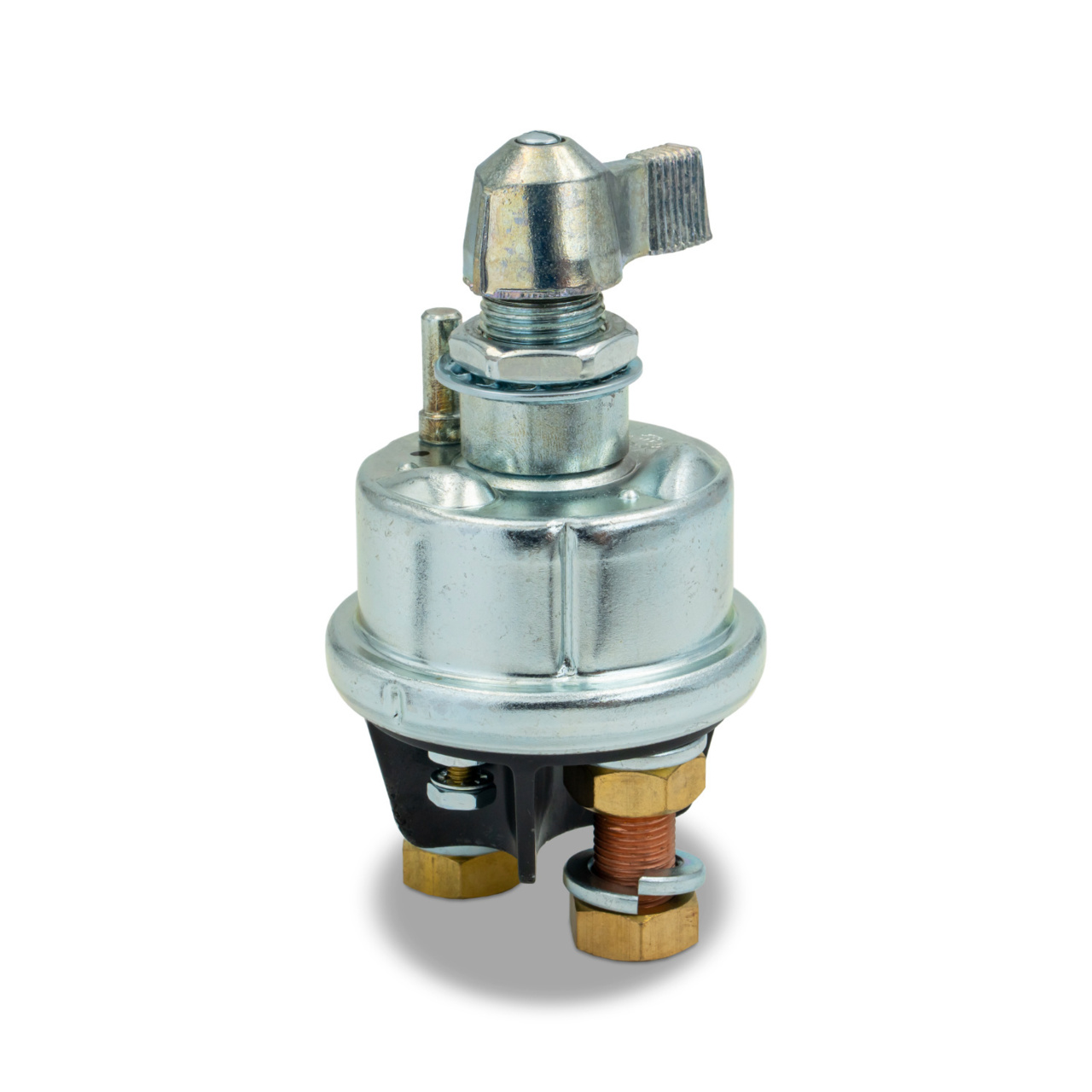

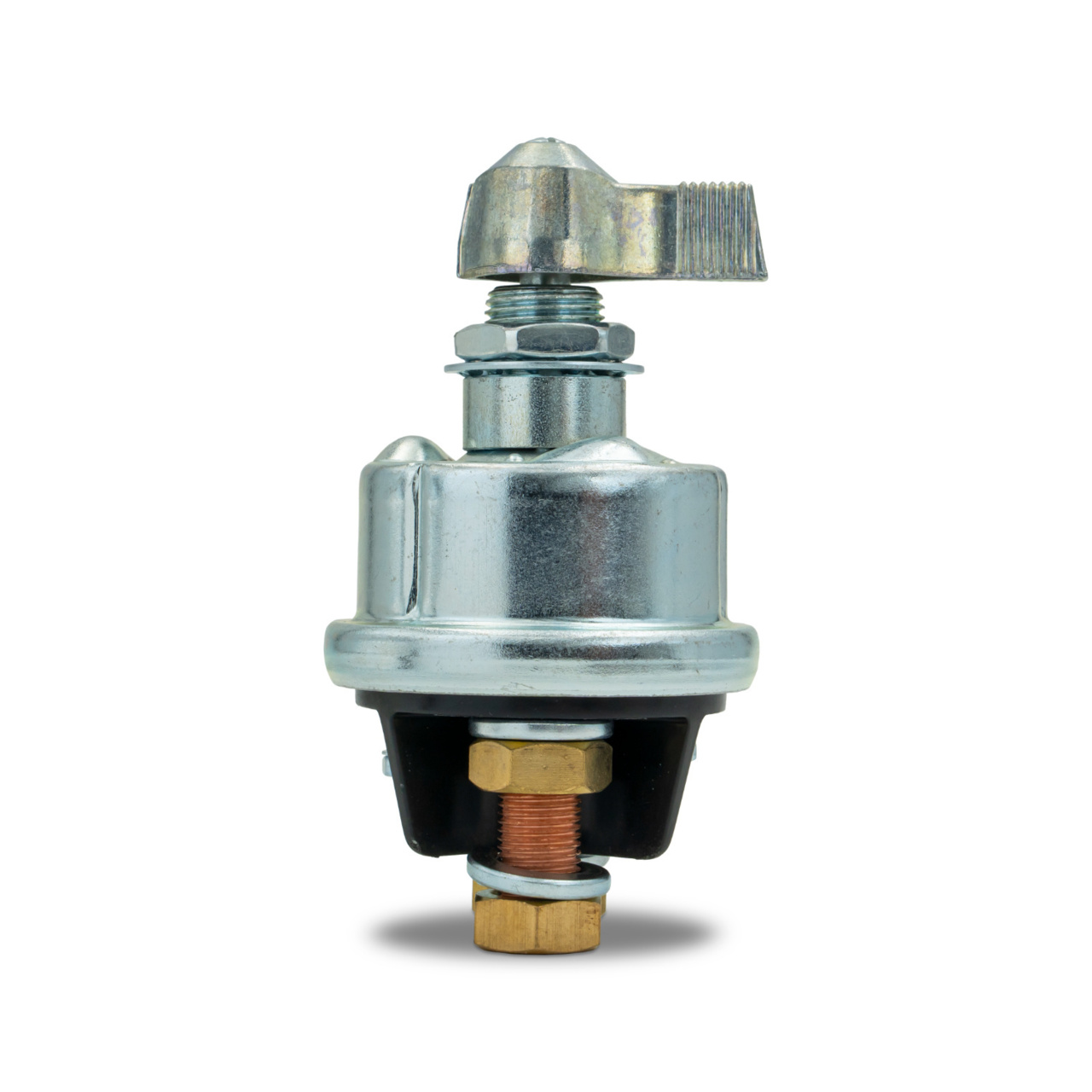

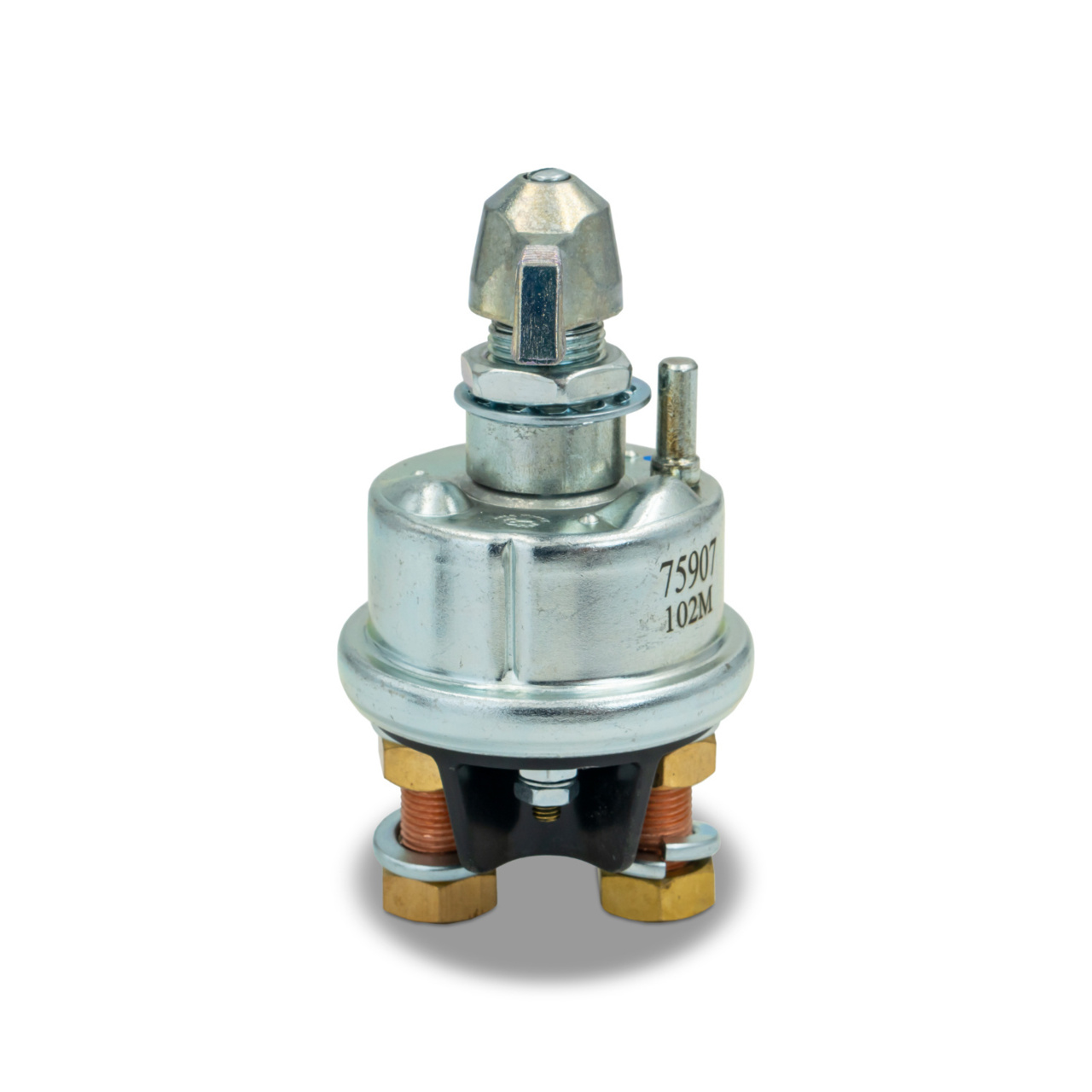

This master disconnect switch (75907) features a heavy-duty, plated-steel housing, a sealed design, and a lever-style actuator, which make it ideal for use in commercial vehicles. The two large 1/2"-20 studs are rated for a continuous current of 300 A and an intermittent current of 2000 A for 30 seconds ON and 3 minutes OFF. Two small #10-32 studs are rated for 20 A continuous current.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 300 |
Current Rating (inrush) in Amps | 2000 |
Voltage Rating (V) | 36 |
Circuitry | DPST |
Actuator | Lever |
Contacts | Copper |
Housing | Plated Steel |
Mounting Stem | 3/4 - 16 thread fits panel through 1/4 thick |
Temperature Maximum (°C) | 85 |
- 300 A continuous current rating on large 1/2"-20 studs and 20 A rating on small #10-32 studs
- Large studs are rated for an intermittent current of 2000 A at 30 seconds ON, 3 minutes OFF
- Sealed design offers IP66- and IP67-rated protection against dust and water
- Lever actuator
- Indexing and alignment pin
