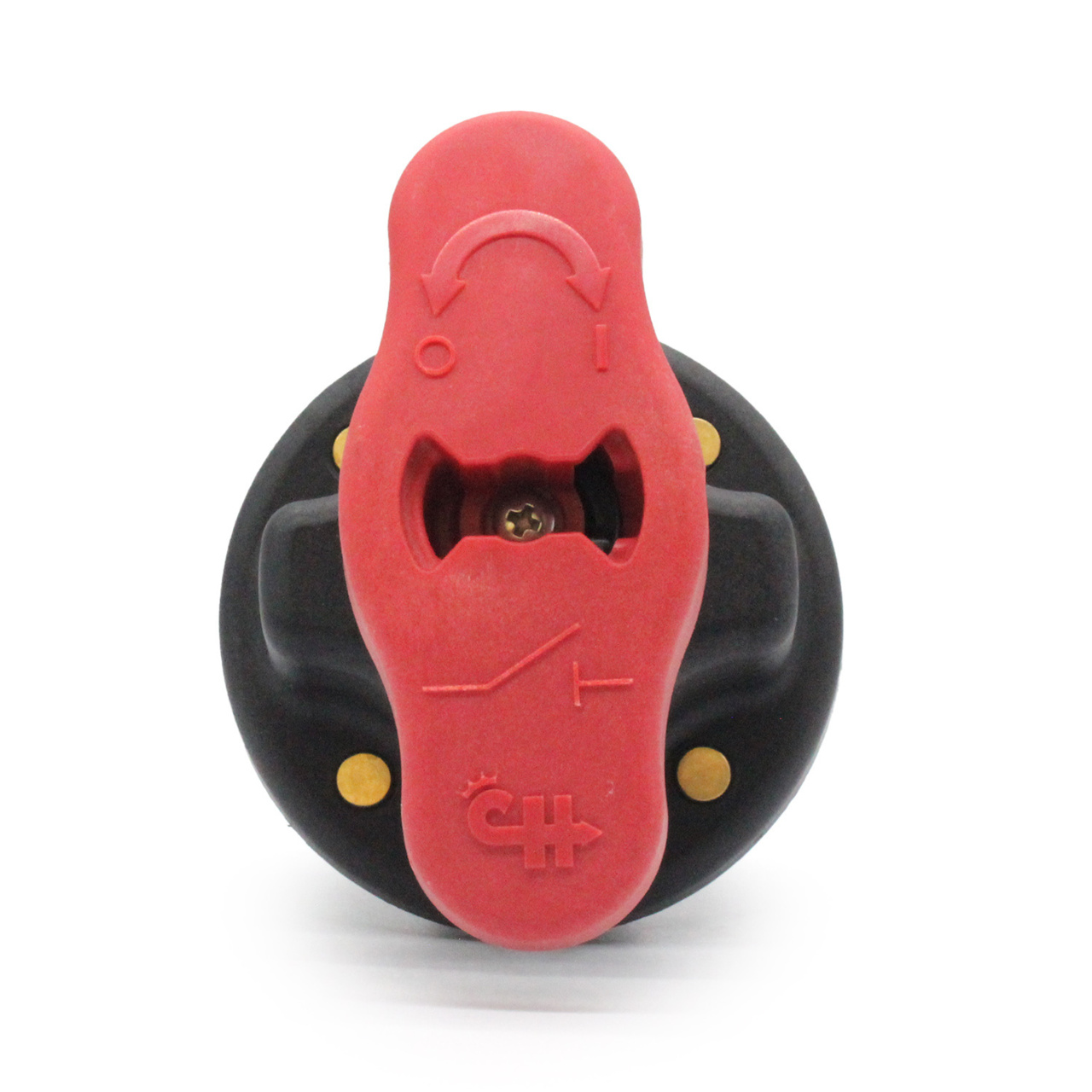

With a patented weld breaker safety feature and integrated lockout/tagout, the 75940-Series Battery Master Disconnect Switch is designed for safely cutting off battery power to all electrical systems aboard heavy-duty vehicles and equipment used in mining, agriculture, construction, and transportation. This Single-pole, single-throw (SPST) manual battery disconnect switch is constructed with a robust engineered polymer housing, offering a contemporary design that stands up to the harsh conditions typically found in commercial vehicle environments. Carrying an IP67/IPX9K rating, the switch is protected against dust, debris, and water.
- Continuous current rating of 200A with 90mm2 cables and 300A with 120 mm2 cables
- Inrush current rating of 500A per 60s at 23 °C and 1,000A per 15s at 23 °C
- Engineered polymer design is protected against dust, debris, and water to an IP67/IPX9K rating
- Removable handle available in red, yellow, or black with hole accepting up to 6mm\ lockout/tagout shackle
- Patented weld breaker safety feature
- Built-in lockout/tagout
75940 Parts
Link has been copied to clipboard
Filters
75940 Applications
- Mining
- Agricultural
- Construction
- Transportation
- Emergency Vehicle
Series: 75940 Resources
75930 and 75940 Battery Master Disconnect Switches Product Video
With a patented weld breaker safety feature and integrated lockout/tagout, the 75930 and 75940 Series Battery Master Disconnect Switches are designed for safely cutting off battery power to all electrical systems aboard heavy duty vehicles and equipment used in mining, agriculture, construction, and transportation.
