00554700

Name: Adapter 15P Plug / 24V.N-S Sockets
Brand: Littelfuse

Product Status| Not for New Designsi

Littelfuse-Vehicle-Connectors-Plugs-Sockets-00554700b

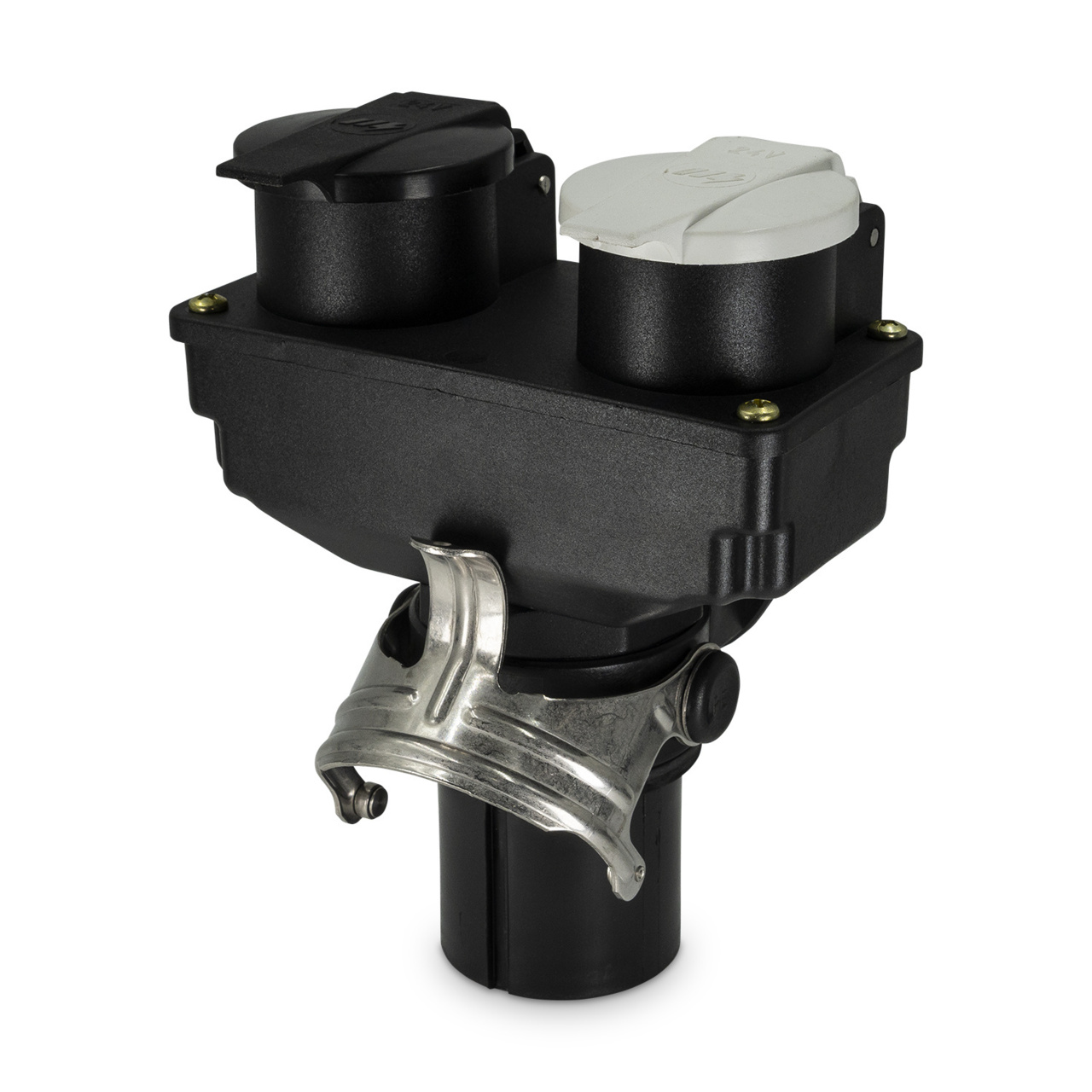

7-Pole - 15-Pole Adapters - 00554700 AR 1 JPG

7-Pole - 15-Pole Adapters - 00554700 AR 2 JPG

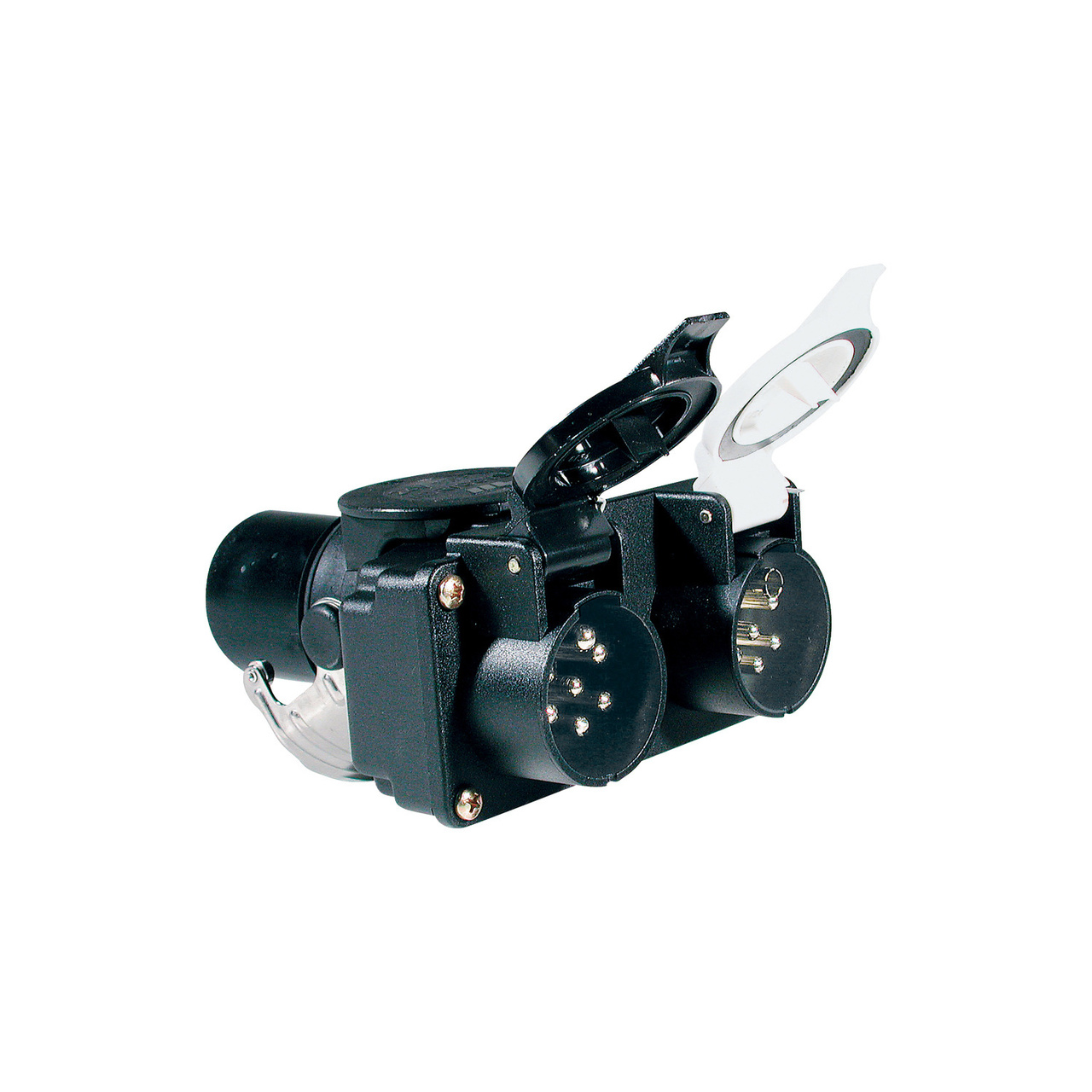

Littelfuse-Vehicle-Connectors-Plugs-Sockets-00554700a

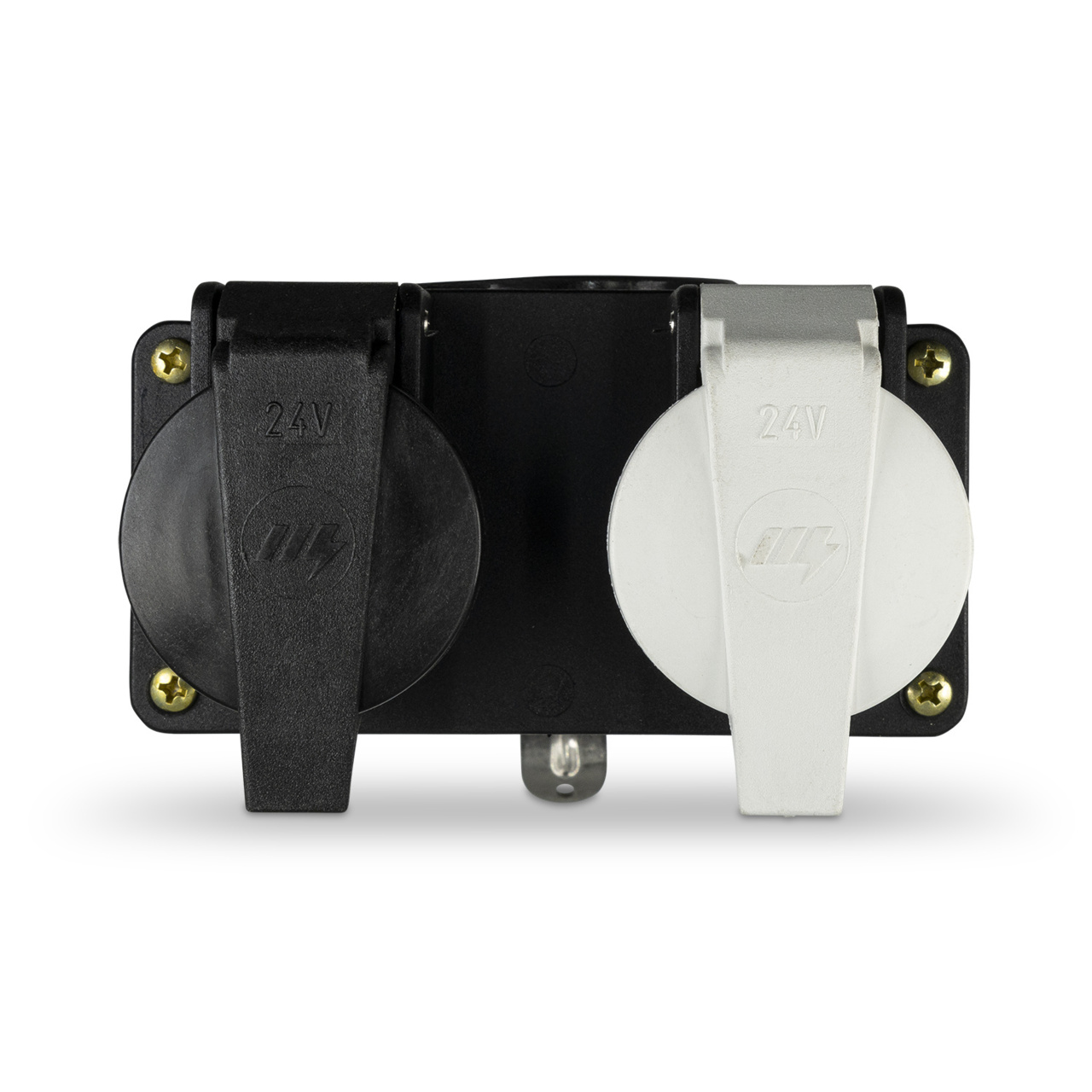

7-Pole - 15-Pole Adapters - 00554700 SO Front JPG

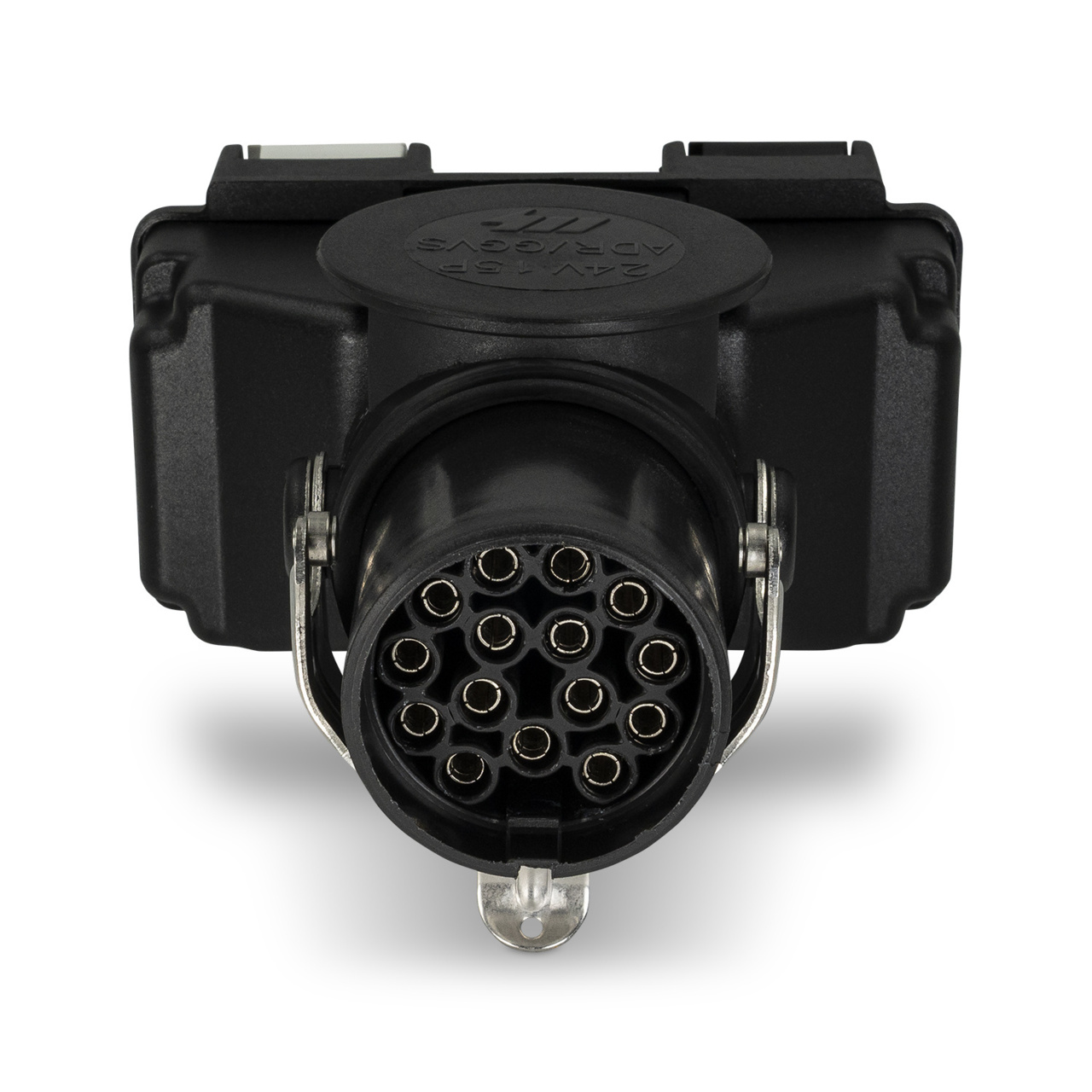

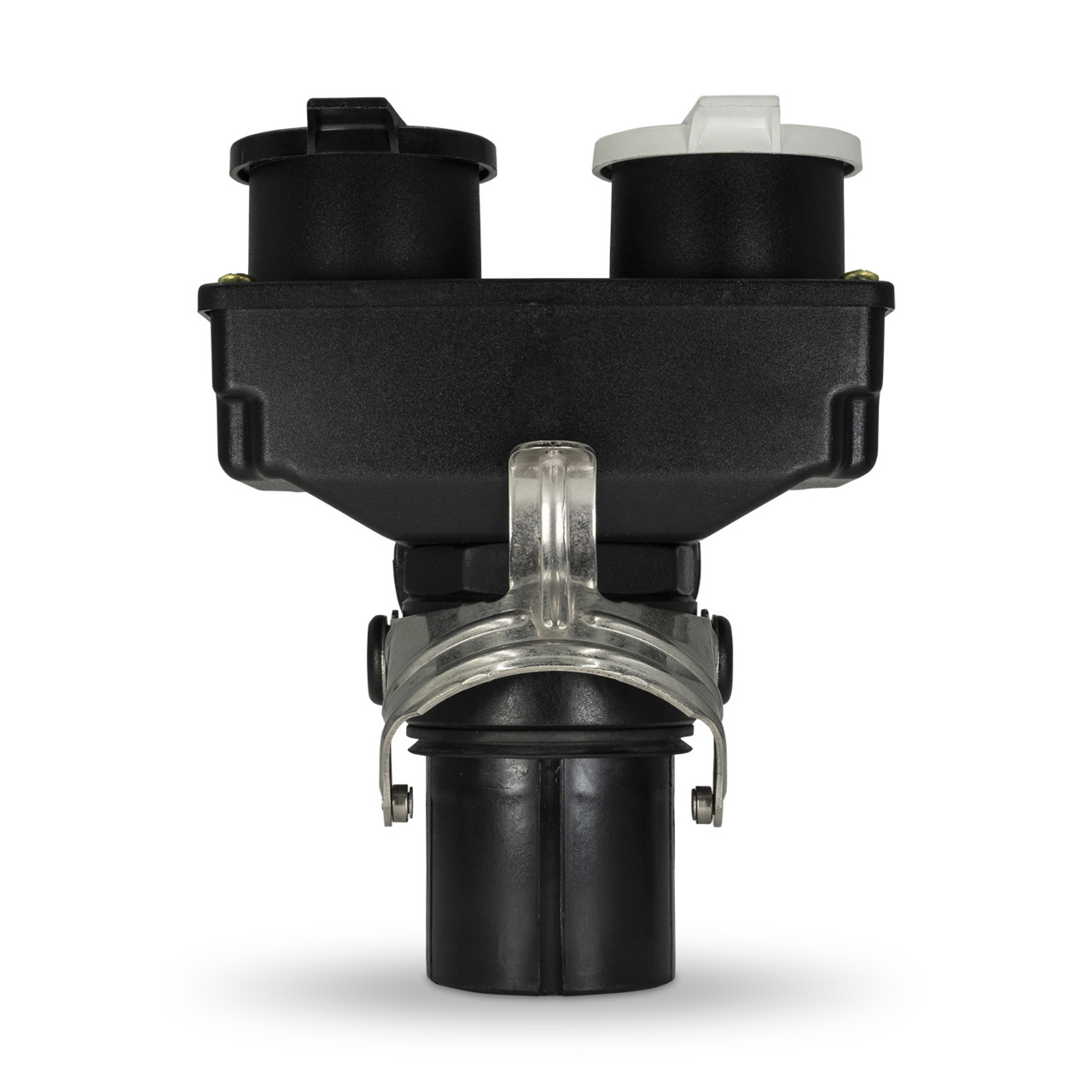

7-Pole - 15-Pole Adapters - 00554700 Back JPG

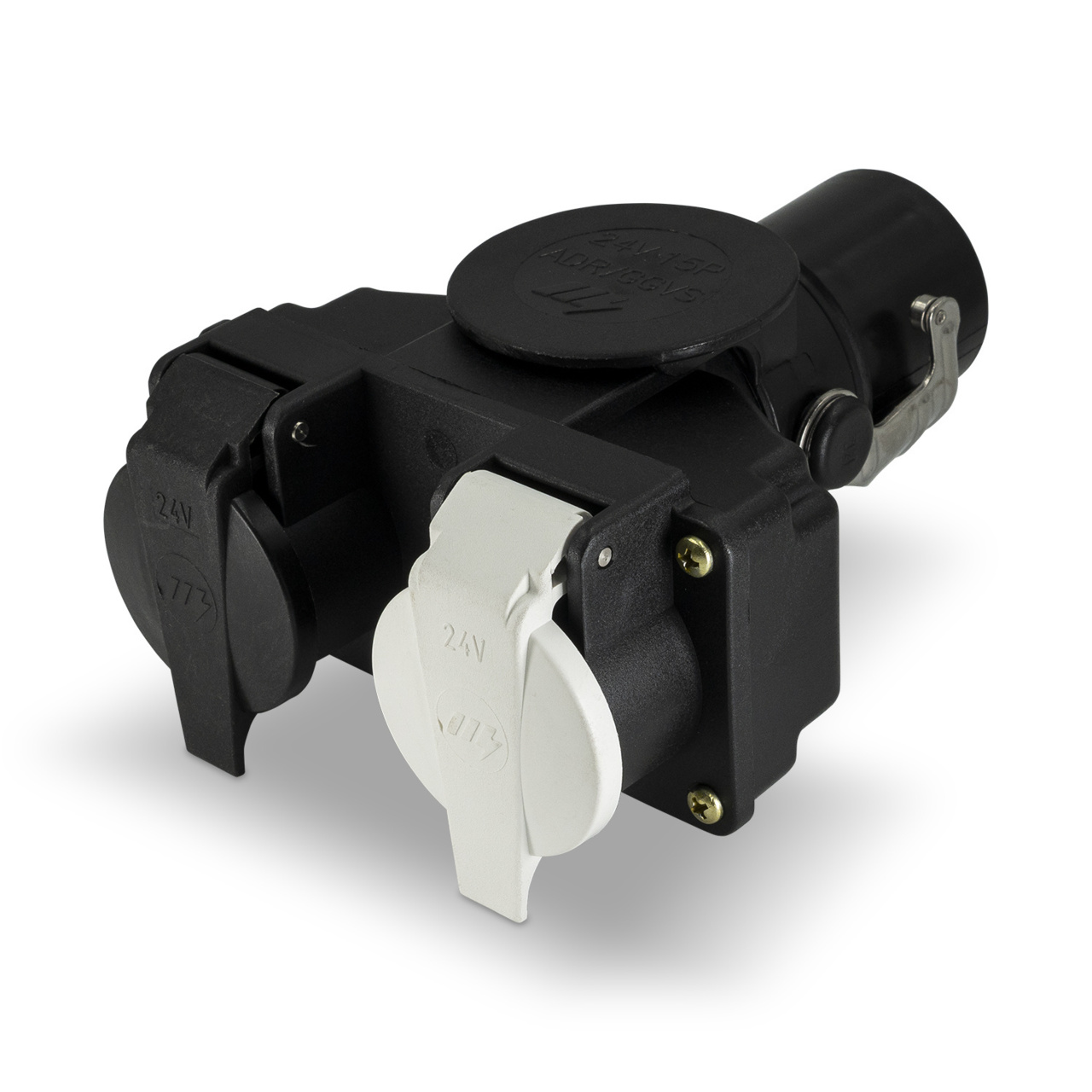

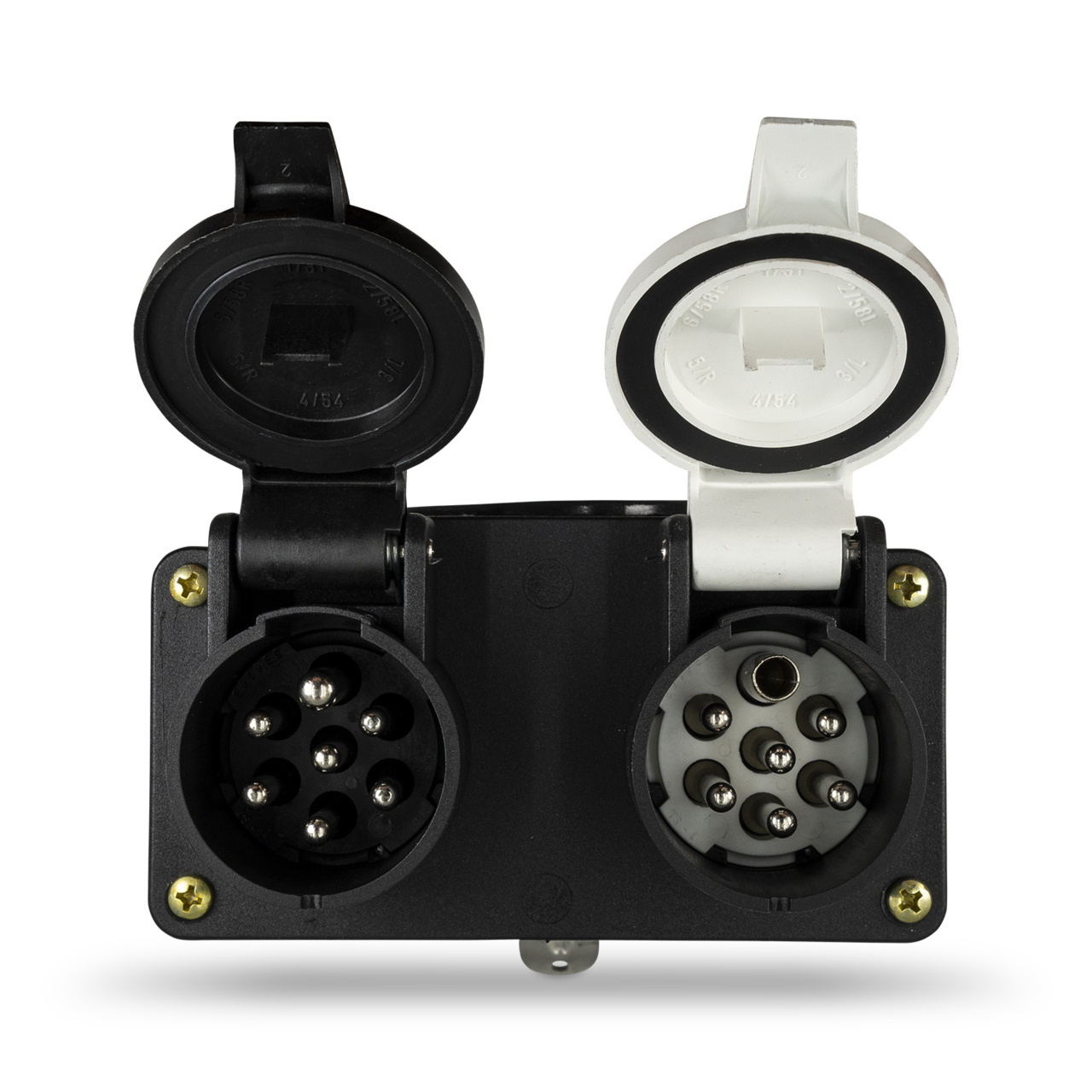

7-Pole - 15-Pole Adapters - 00554700 Open JPG

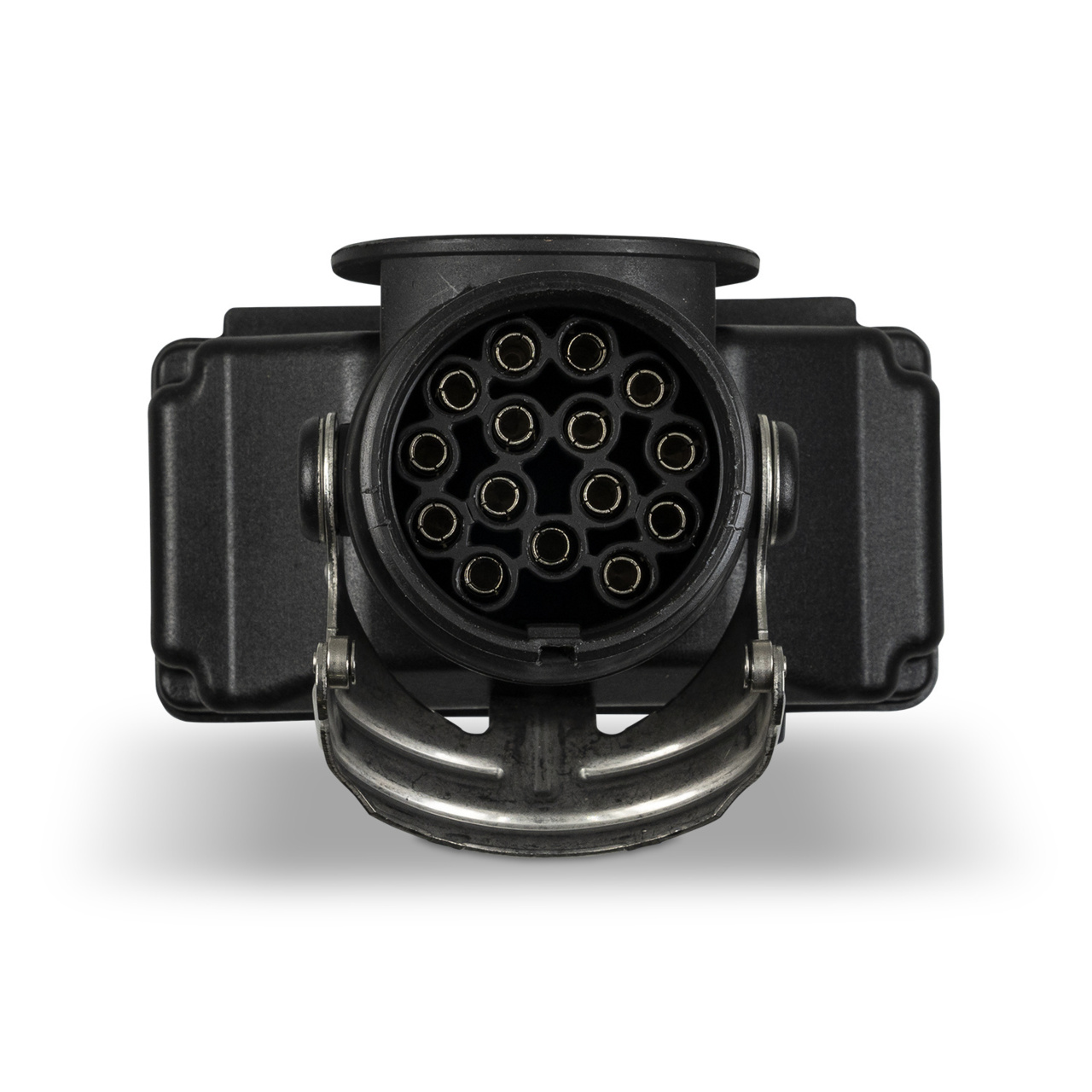

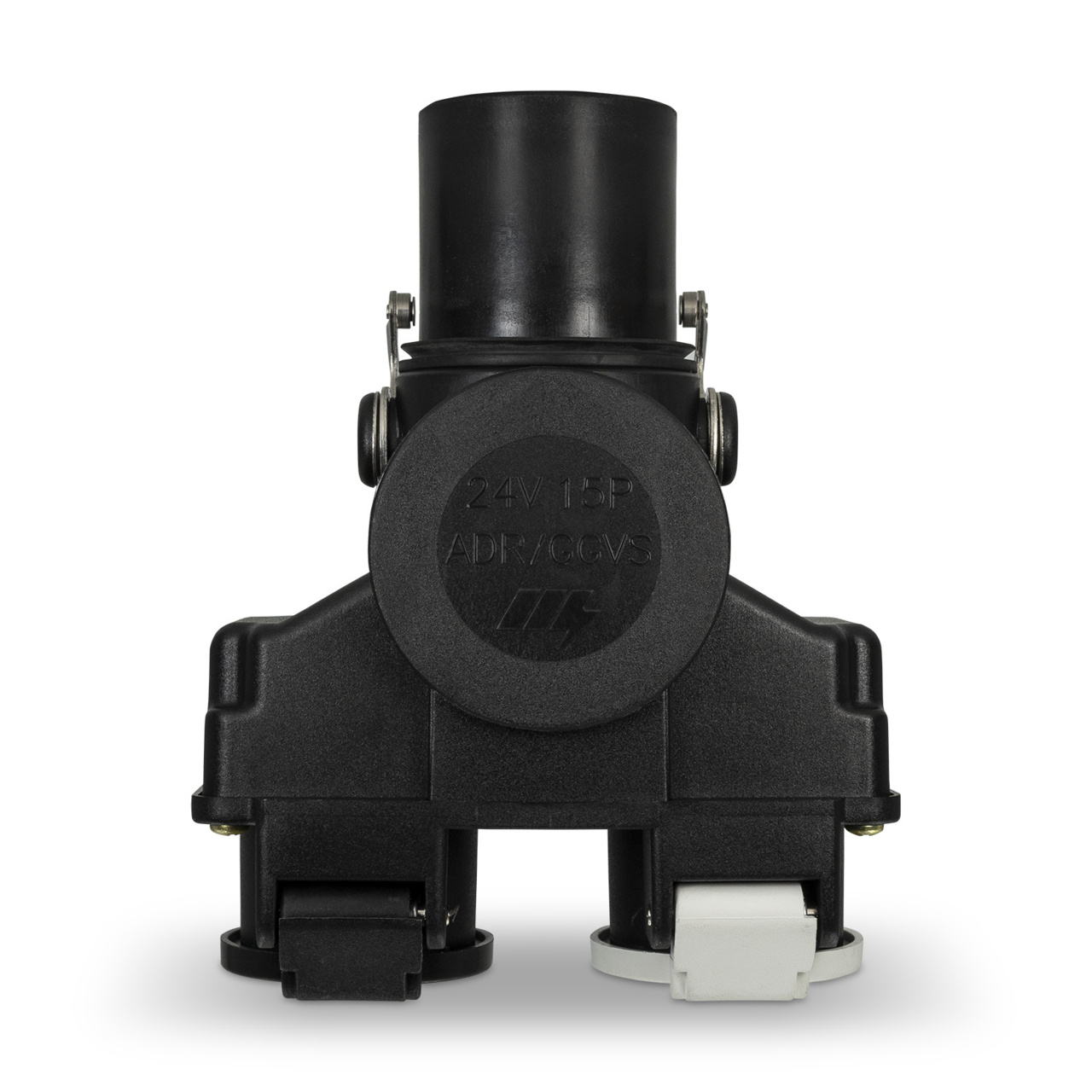

7-Pole - 15-Pole Adapters - 00554700 Bottom JPG

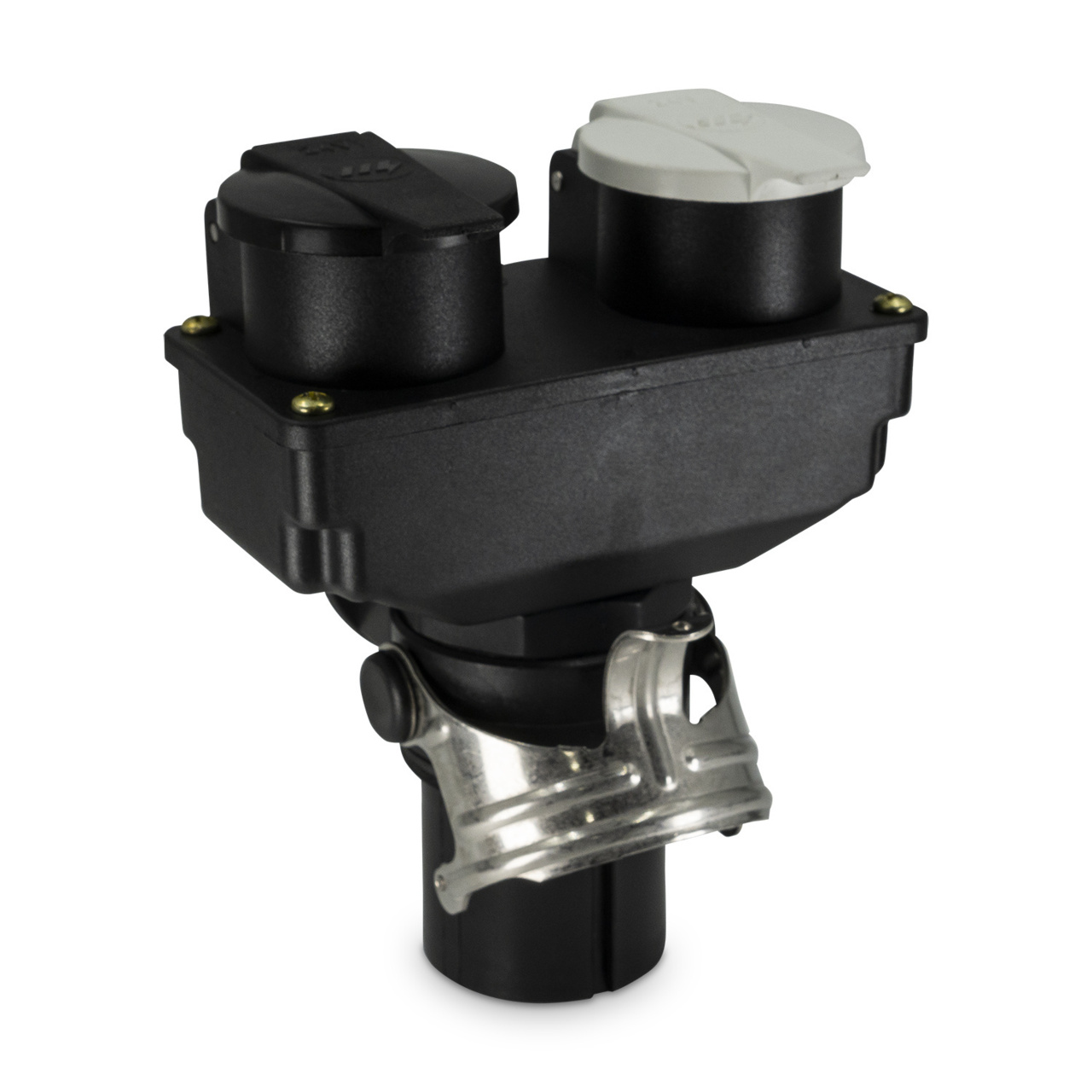

7-Pole - 15-Pole Adapters - 00554700 AL 1 JPG

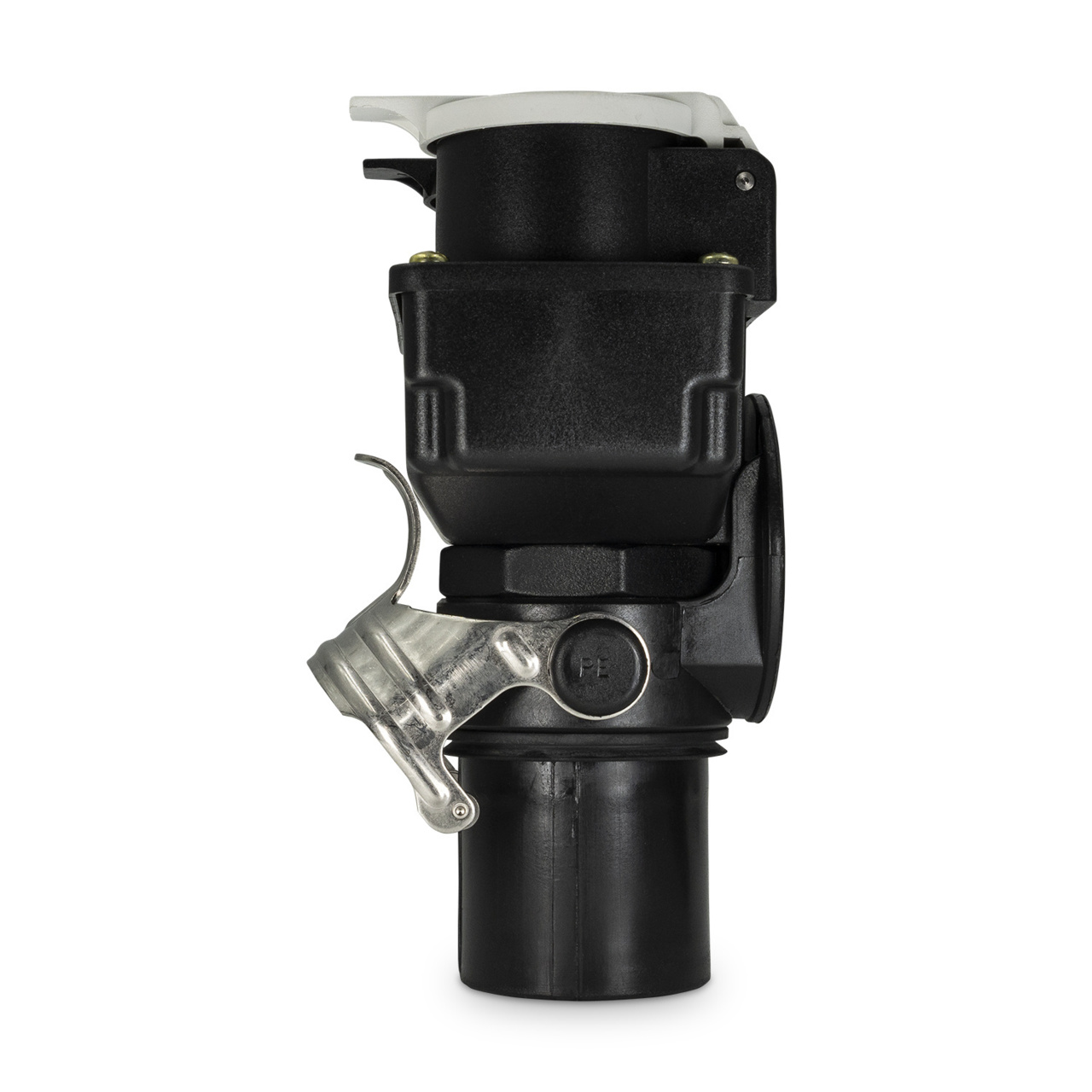

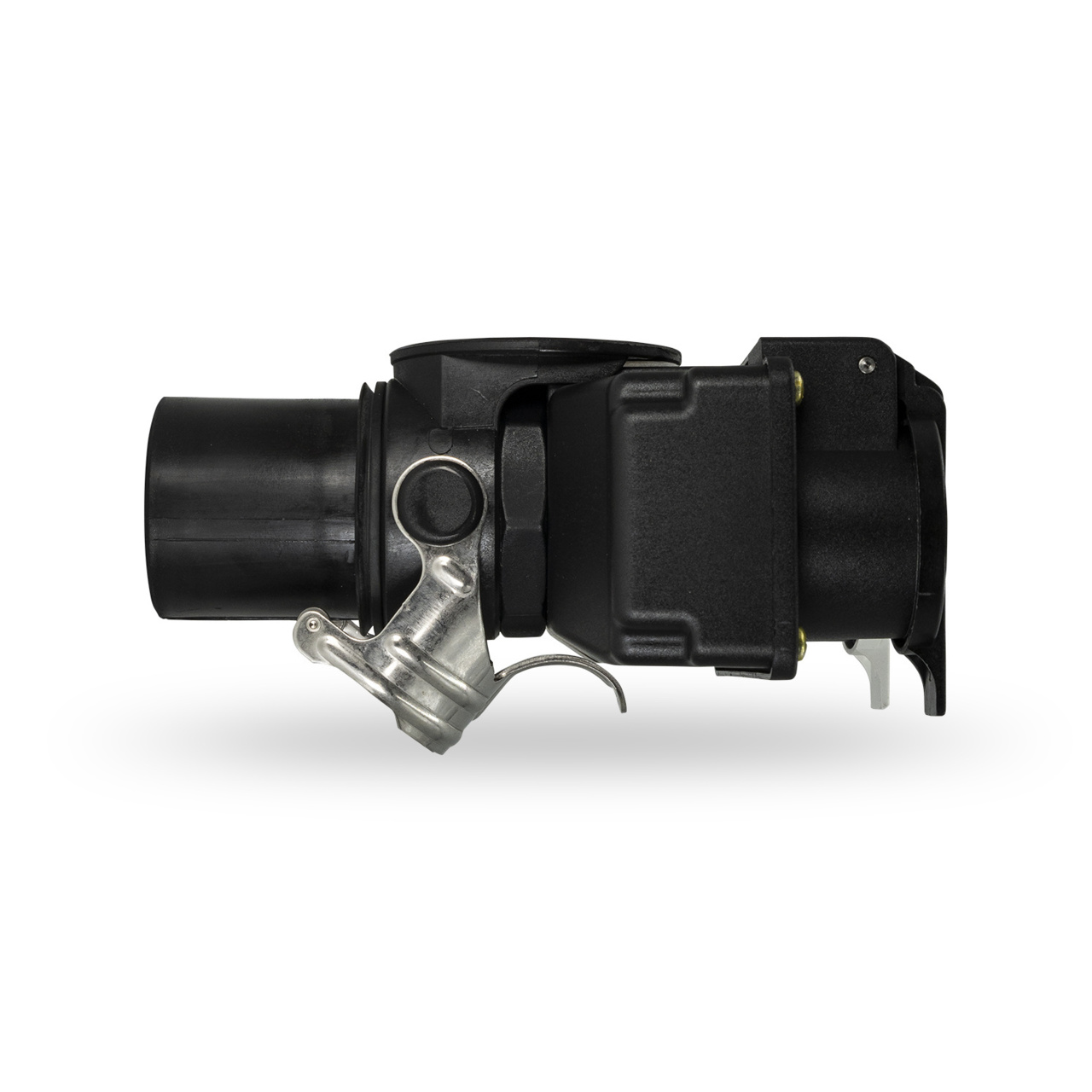

7-Pole - 15-Pole Adapters - 00554700 SO Side 2 JPG

7-Pole - 15-Pole Adapters - 00554700 AL 2 JPG

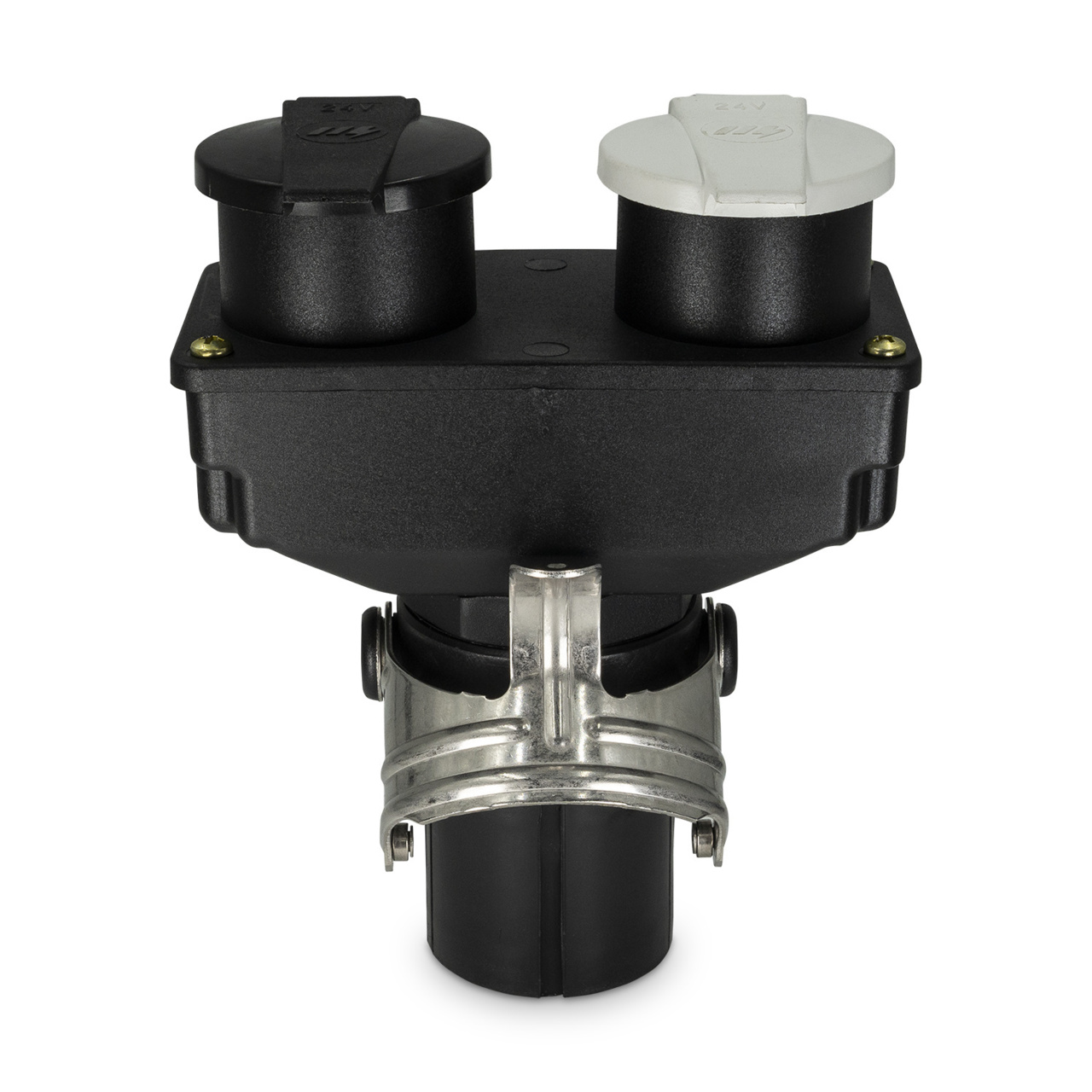

7-Pole - 15-Pole Adapters - 00554700 SO Back JPG

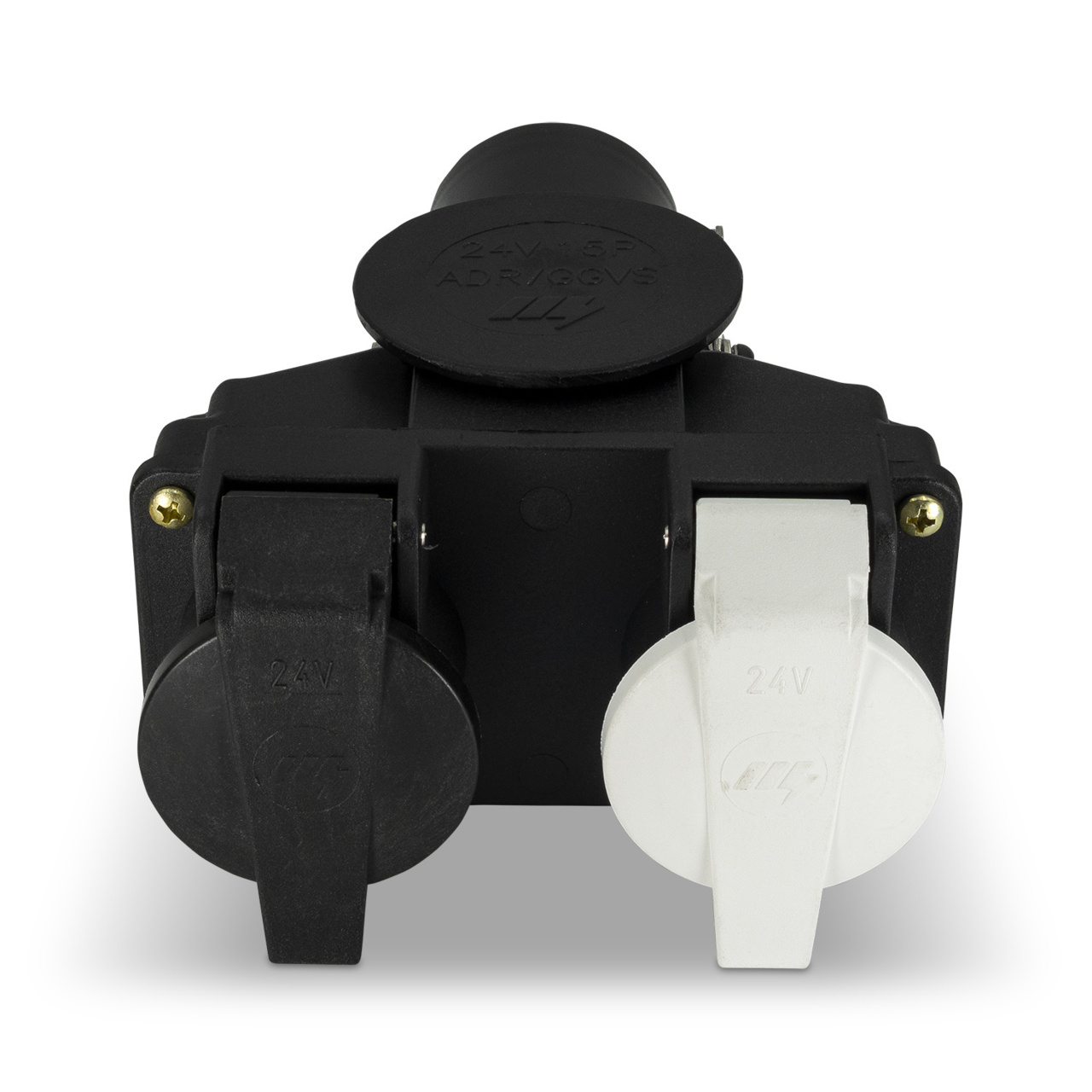

7-Pole - 15-Pole Adapters - 00554700 Front JPG

7-Pole - 15-Pole Adapters - 00554700 SO Top JPG

00554700

Adapter 15P Plug / 24V.N-S Sockets | Series: 7-Pole - 15-Pole Adapters

Various types of adaptors available to connect 7-pole Normal (ISO 1185) and Supplementary (ISO 3731) system to the newest 15-pole system (ISO 12098) and vice versa.

Compact style
15-pole plug to two sockets - 7-pole 24V Normal and Supplementary

Property	Value
Voltage Rating (V)	24
Housing	Plastic
Circuitry	15 – 7
Input Terminals	Nickel-Plated Brass

00554700 Resources

Link has been copied to clipboard

Showing 1 to 1 of 1 Total Results

Part Number	Part Description	RoHS	Pb-Free	RoHS (2015/863/EU) Certificate	REACH (SVHC's) Declaration	REACH (SVHC's)	Halogen Free	IPC-Material Declaration
00554700	Adapter 15P Plug / 24V.N-S Sockets								View More

If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
