00559470

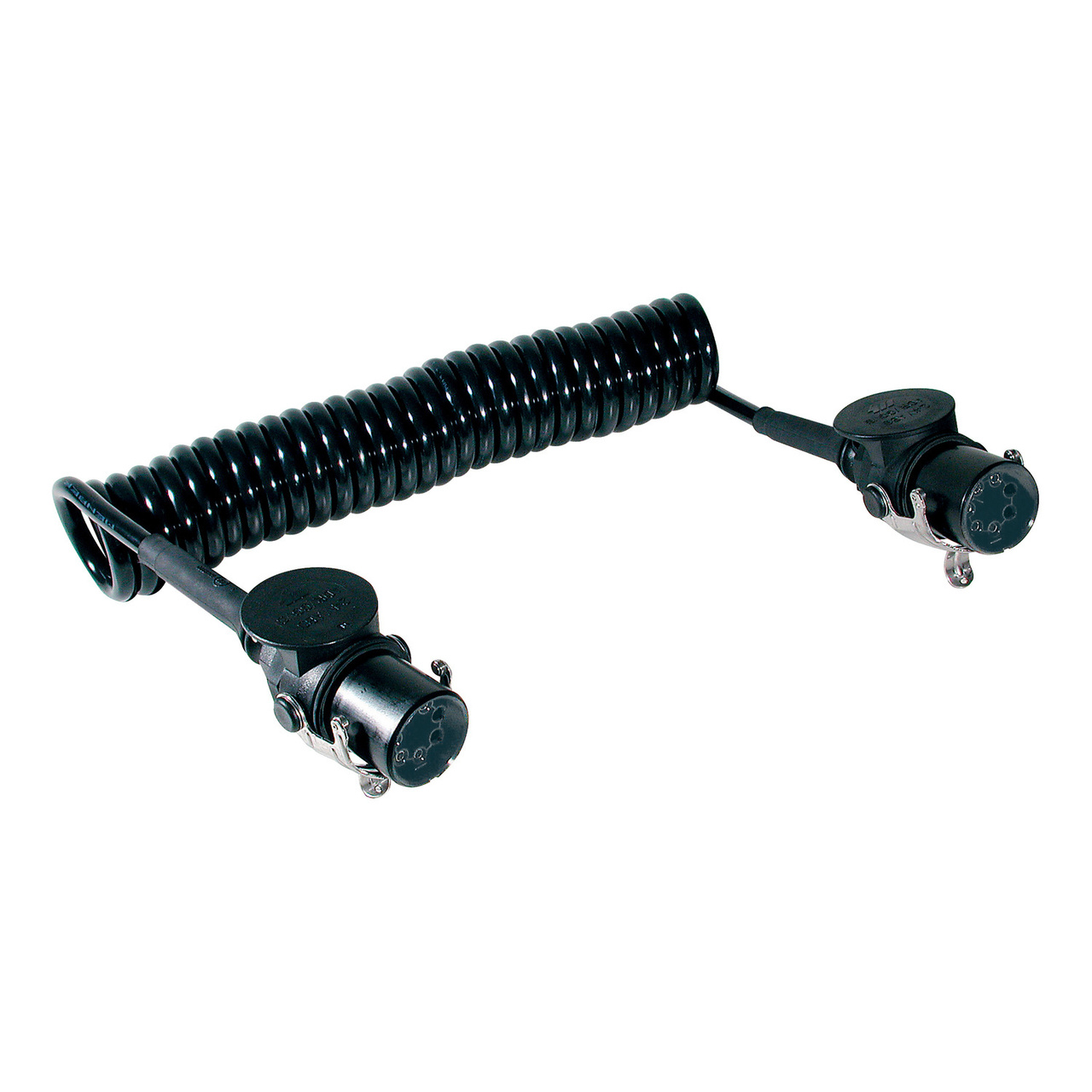

Complete Coil 24V-Abs 5P/40 Lu 4 | Series: ABS 24V - Medium
15-pole 24V electrical coils are used for the electrical connection between a truck tractor and a semitrailer in the commercial vehicles sector, conforming to ISO/DIS 12098. They are particularly suited for electrical connections on vehicles transporting hazardous goods, based on the technical specifications given by ADR/GGVS norms.
These products are supplied with a cable conforming to ISO 4141, and with external sheath made of HYTREL® (TEEE) and are available with medium size 40mm turn diameter.
- Standards: Conforms to ISO 12098 and ISO 4141 recommendations and standards.
- External sheath of HYTREL® (TEEE) has high resistance against mechanical abrasion and chemical agents.
- The coils are available with a rubber protection grommet.
| Property | Value |
|---|---|
Voltage Rating (V) | 24 |
Cable Material | HYTREL |
Cable Cores | 2x4+3x1.5 mmq |
Housing | Plastic |
Cable Diameter Mm | 12 |
