08097462

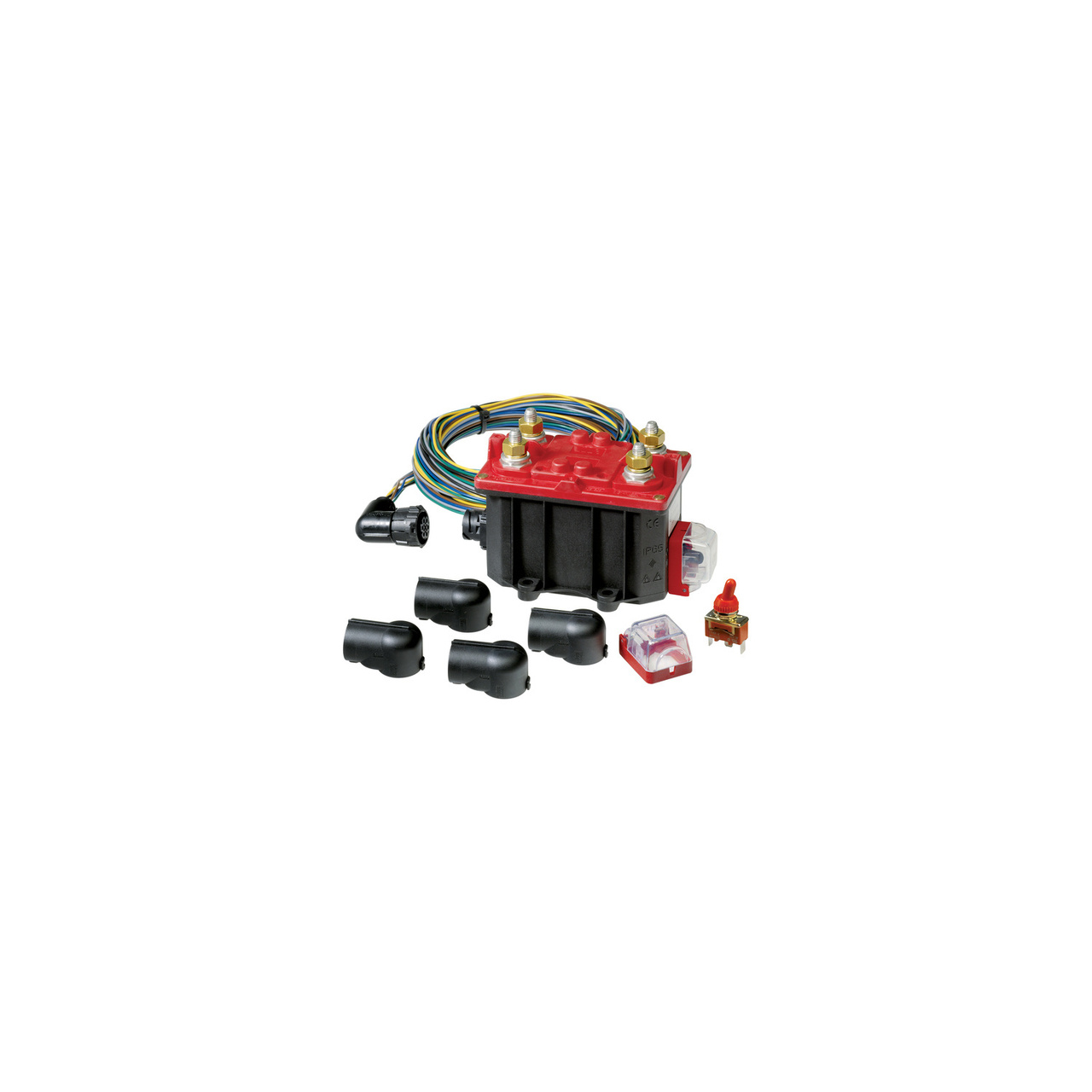

Bms Tgc/Rmcde 24V Sep.Feed. (+E-)2P | Series: 08097300
The dual pole remote control current isolating switches series are encased in a plastic housing, and are turned on or off with the ignition key or a remote control; with a minimum absorption of current.
In this series we also offerpart numbers where the coil is fed separately and disconnects either the negative or the positive pole.
- 250A continuous current rating
- Waterproof IP65
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 250 |
Current Rating (inrush) in Amps | 2500 |
Maximum DC Voltage (V) | 24 |
Hardware | 2500 |
Intermittent Time | IP65 |
Mounting Method | 24 |
