DDS007

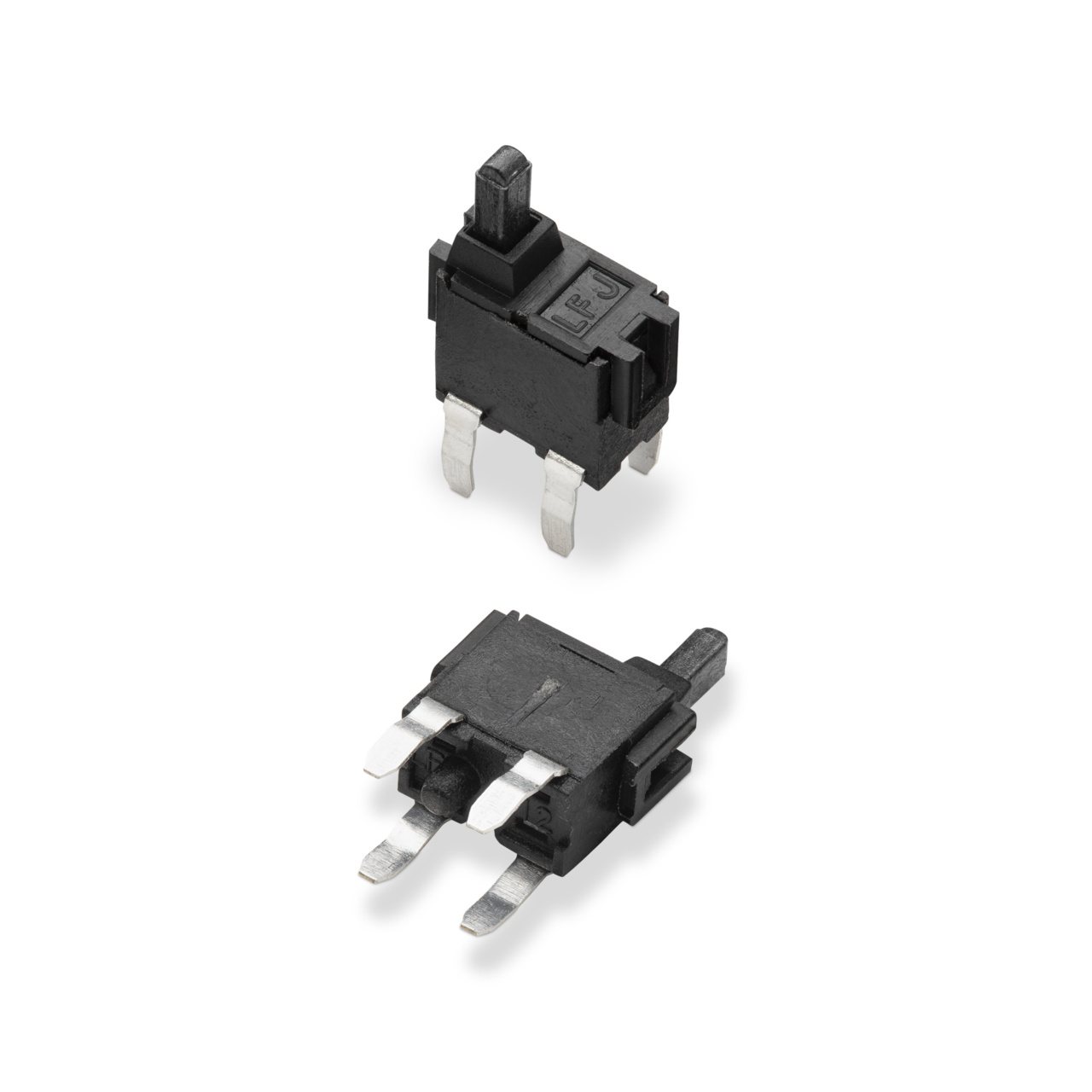

SWITCH DDS007 | Series: DDS
DDS series micro mini thru-hole detect switches feature a low actuation force (less than 40g), a choice of vertical or horizontal actuation and a 2mm overtravel feature, making them ideal for detecting the presence of a mechanical device. Typically used in the medical device and consumer electronics industries, DDS switches are known for being long-lasting and compact.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Maximum Current | 100 mA |
Contact Plating | Silver |
Electrical Life Cycles | 50000 |
Electrical Rating - Activated - Voltage DC | Max 30 Volt |
Seal | None |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Operating Force | Min 0.25 N / Nominal 0.4 N / Max 0.55 N |
Activation Orientation | Top actuated |
Washing Process - Compatibility | Not Compatible |
Illumination | Not applicable |
- Vertical or horizontal actuation
- 2mm overtravel—Ideal for detector applications
- Low actuations force (less than 40 grams)
- RoHS compliant and compatible
DDS007 Applications
- Detect the presence of a mechanical device
- Medical devices
- Consumer electronic devices
DDS007 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DDS007 | SWITCH DDS007 | View More |
