FDSE002R

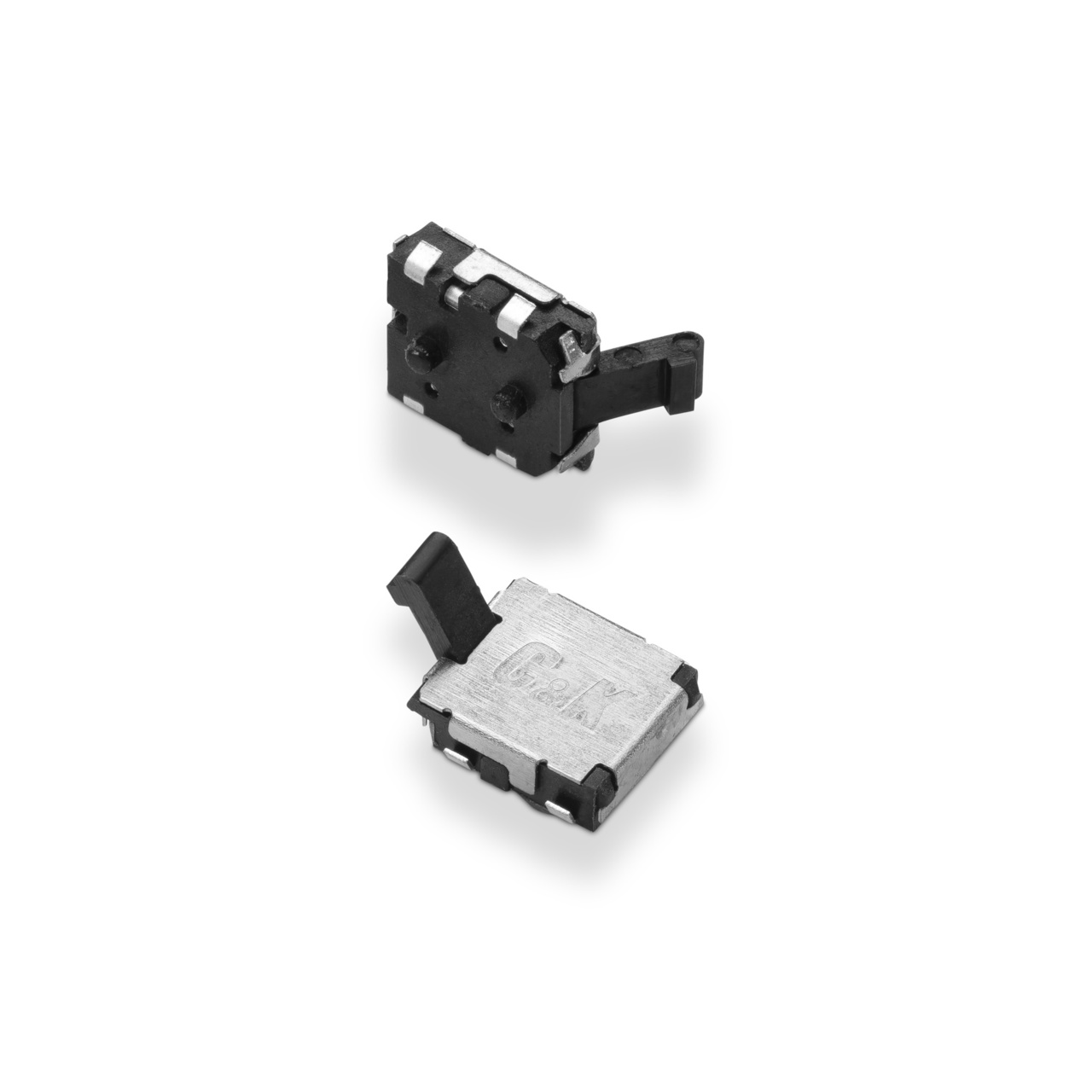

SWITCH FDSE002R | Series: FDSE
The FDSE series are really miniature in package size which is ideal for applications that require angled detection. It is mounted on PCB and typical applications are consumer electronics and medical devices.
| Property | Value |
|---|---|
Circuitry | SPST NC |
Activation Type | Momentary action |
Rating - Minimum Current | 0.1 mA |
Rating - Maximum Current | 1 mA |
Contact Plating | Silver |
Electrical Height | Min 1.5 mm |
Electrical Life Cycles | 50000 |
Electrical Rating - Activated - Voltage DC | Min 3 Volt / Max 5 Volt |
Seal | None |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Terminals Complementary Information | G |
Operating Force | Max 0.35 N Max 35 gf |
Activation Orientation | Top actuated |
Washing Process - Compatibility | Not Compatible |
Illumination | Not applicable |
- Extremely small package size
- Angled actuation
- Flat or bending terminations
- Long travel type
- RoHS compatible and compliant
FDSE002R Applications
- Consumer electronics
- Medical devices
- Safety control devices
