HDP001R

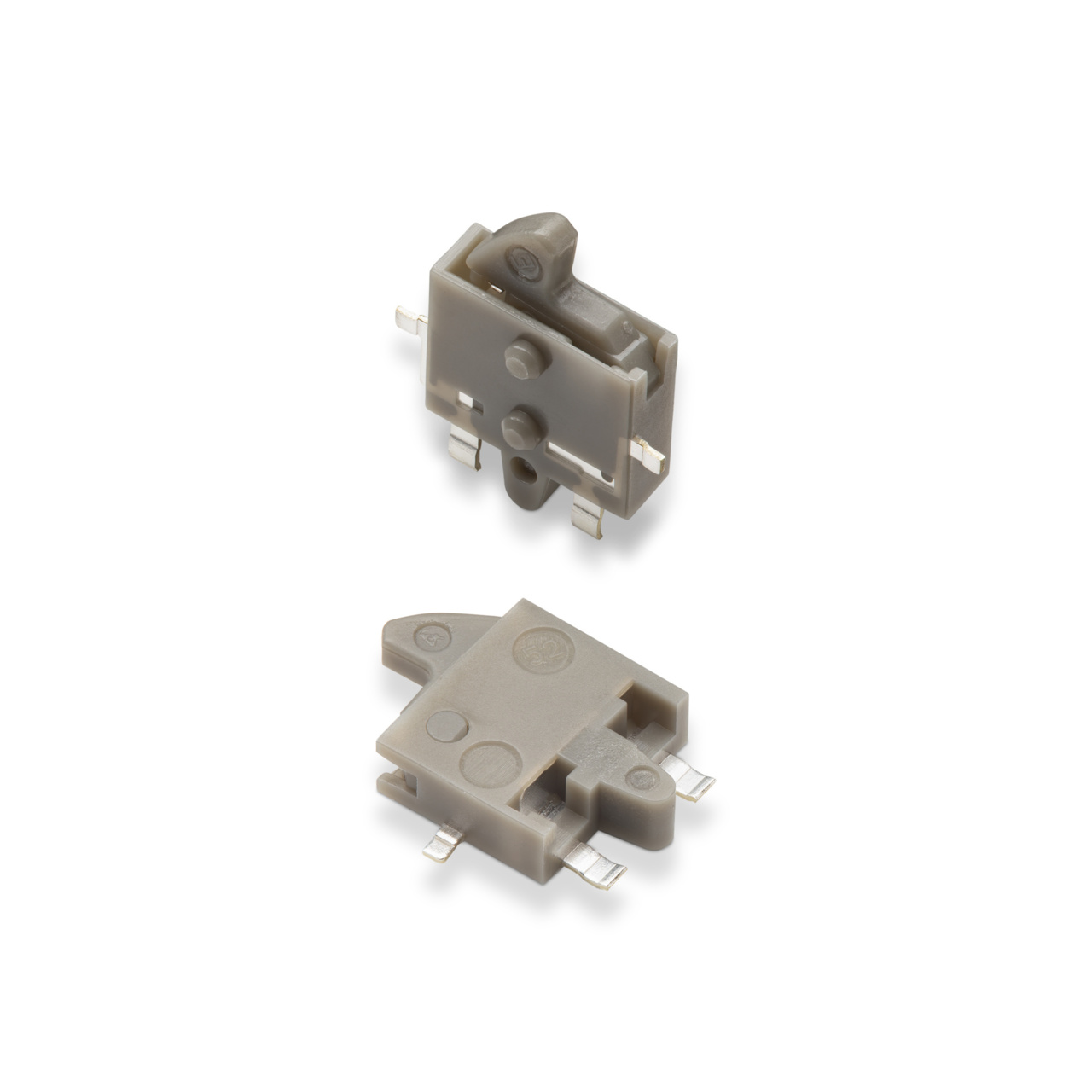

SWITCH HDP001R | Series: HDP
The HDP series of micro mini side actuated surface mount detect switches are engineered to give designers their option for a right or left side switch, while retaining a low profile. HDP switches are used most often in devices for the medical device or consumer electronics industries – and are recognized for giving designers a long lifecycle switch with a soft actuation force.
| Property | Value |
|---|---|
Circuitry | DPST NO |
Activation Type | Momentary action |
Rating - Minimum Current | 0.1 mA |
Rating - Maximum Current | 1 mA |
Contact Plating | Silver |
Electrical Travel | Min 0.15 mm |
Electrical Height | Min 2.71 mm / Nominal 2.96 mm / Max 3.21 mm |
Mechanical Life Cycles | 100000 |
Electrical Rating - Activated - Voltage DC | Max 5 Volt |
Seal | None |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Operating Force | Max 0.27 N Max 28 gf |
Activation Orientation | Side actuated |
Color & Finish | black |
Washing Process - Compatibility | Not Compatible |
Illumination | Not applicable |
- Low profile
- Side actuation
- Right and left options available
- Low actuation force
- Lead free and halogen free
HDP001R Applications
- Consumer electronics
- Computers
- Medical devices
- Mobile Communications
- ATCA and MicroTCA devices
