HDS001L

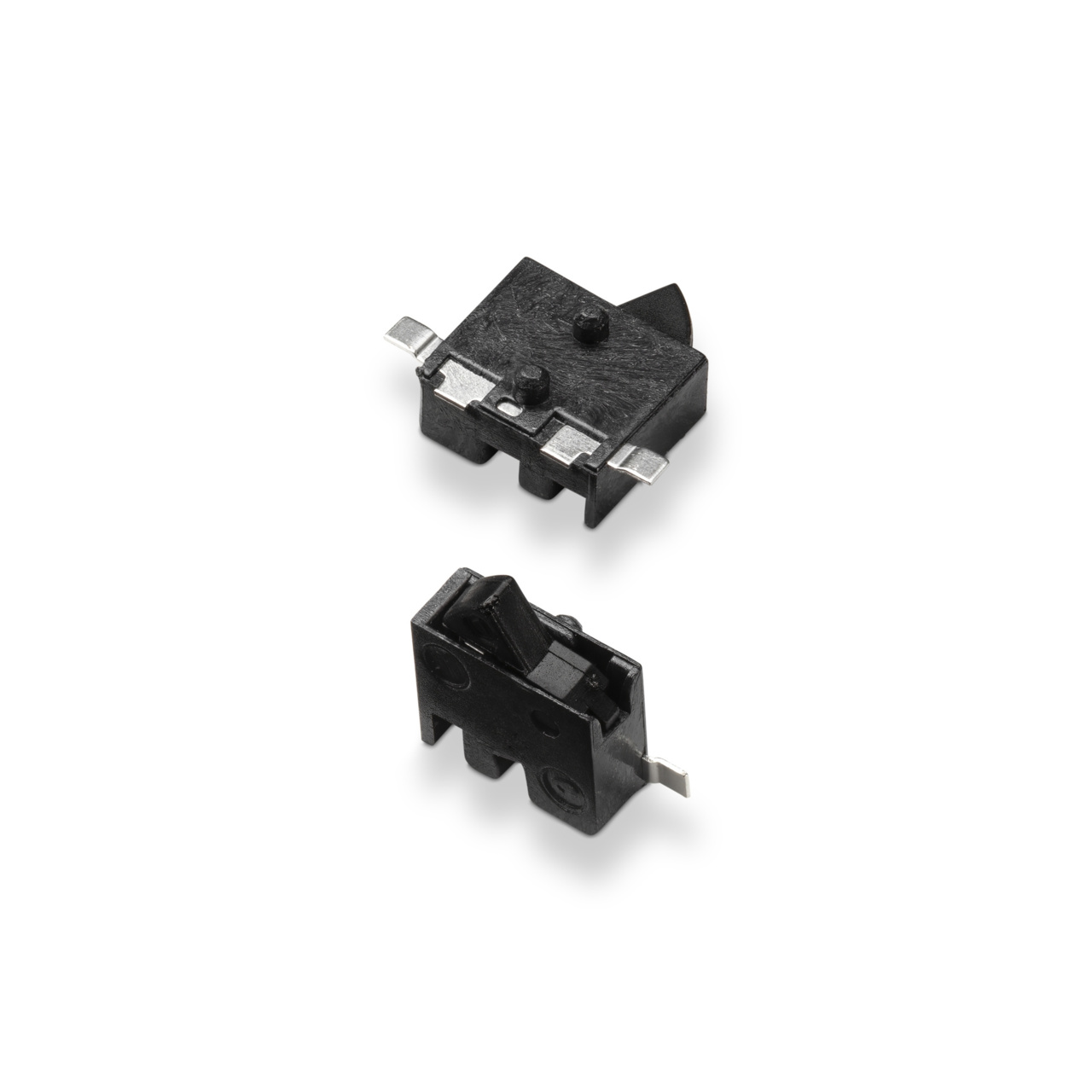

SWITCH HDS001L | Series: HDS
HDS series switches are micro mini side actuated surface mount detect switches, typically incorporated into leading product designs for consumer electronics, medical devices, and ATCA and MicroTCA devices. With a low profile – the package sits just 1.4mm off the PCB –the HDS switches come with optional top or side actuation and a choice of right or left options, meaning designers can use it no matter what their design specs are.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Maximum Current | 1 mA |
Contact Plating | Silver |
Electrical Life Cycles | 100000 |
Electrical Rating - Activated - Voltage DC | Max 5 Volt |
Seal | None |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Operating Force | Max 0.3 N |
Activation Orientation | Top and Side actuated |
Washing Process - Compatibility | Not Compatible |
Illumination | Not applicable |
- Low profile package sits just 1.4 mm off PCB
- Design allows top or side actuation
- Right and left options available
- Low actuation force, 30 grams max
- Pick and place compatible, available in tape & reel packaging
- RoHS compliant and compatible
HDS001L Applications
- Consumer electronics
- Computers
- Medical devices
- Mobile communications
- ATCA and MicroTCA devices
