HDT0301

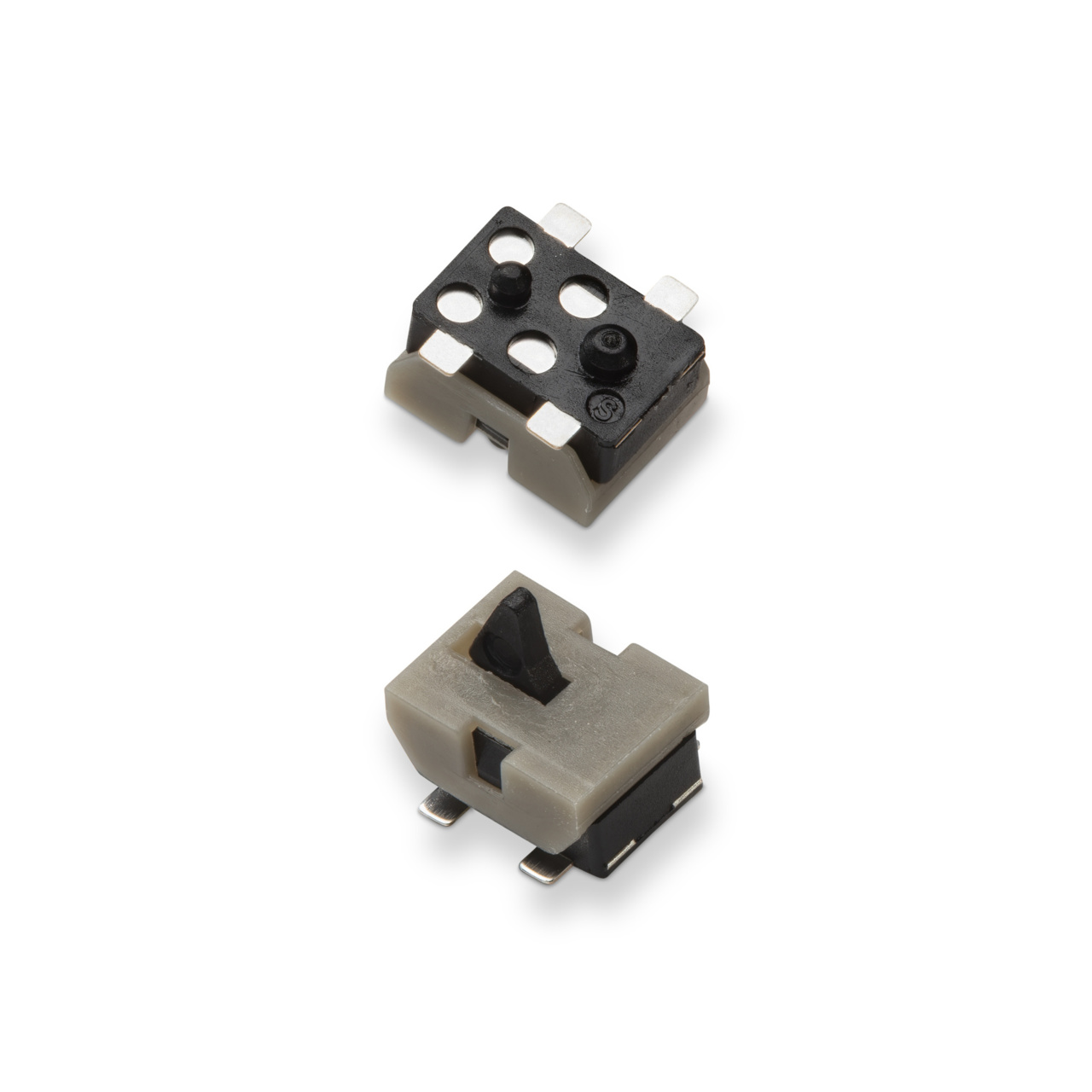

SWITCH HDT0301 | Series: HDT
Designers of compact devices with high functionality requirements – such as consumer devices and medical devices – need switches that have a low profile and low actuation force. That’s where the HDT Series of micro mini surface mount detect switches come in. They’re designed to be quality, long-lasting switches that only allow a maximum actuation force of 35g – and are available with either top or side actuation, making it easy to incorporate the switch into your device design.
| Property | Value |
|---|---|
Circuitry | DPST NO / NC |
Rating - Minimum Current | 0.05 mA |
Contact Plating | Silver |
Mechanical Life Cycles | 100000 |
Electrical Life Cycles | 100000 |
Electrical Rating - Activated - Voltage DC | Min 3 Volt / Max 5 Volt |
Seal | None |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Operating Force | Nominal 0.25 N Nominal 26 gf |
Activation Orientation | Top actuated |
Washing Process - Compatibility | Not Compatible |
Terminals Complementary Information | G |
Illumination | Not applicable |
- Low profile package
- Design allows top or side actuation
- Low actuation force, 35 grams max
- Pick and place compatible, available in tape & reel packaging
- RoHS compliant and compatible
- Halogen free
HDT0301 Applications
- Consumer electronics
- Computers
- Medical devices
- ATCA and MicroTCA devices
