HS-2206-A1

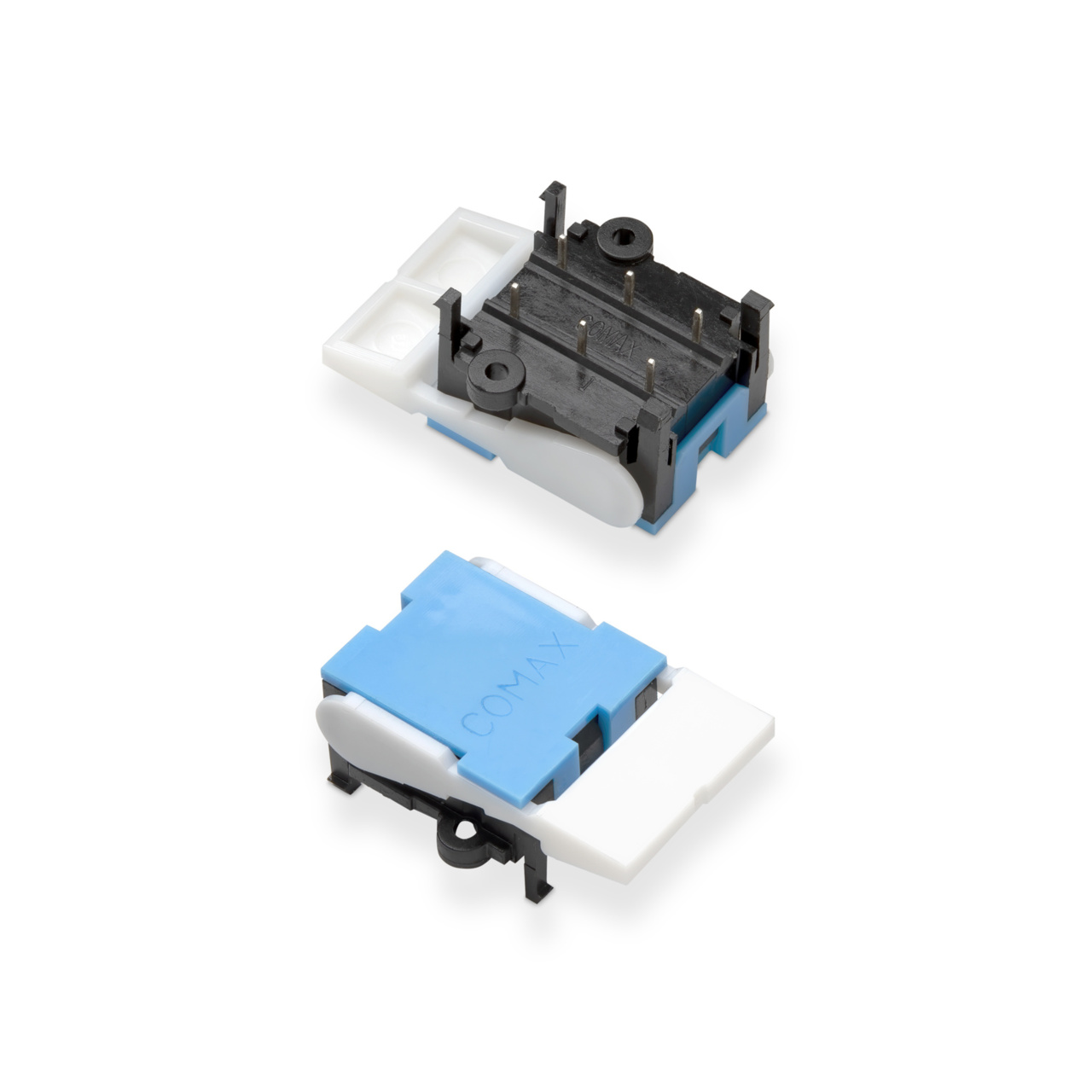

HS-2206-A1 NS | Series: HS
The HS series hook switch is perfect for those in the telecommunications or computer peripheral industries looking to incorporate a quality switch for connecting headsets and phones, or for answering/hanging up telephones. With a wide variety of level designs available to choose from, the HS switch will help your product perform successfully.
| Property | Value |
|---|---|
Circuitry | DPDT NO / NC |
Activation Type | Momentary action |
Contact Plating | Silver |
Electrical Life Cycles | 300000 |
Electrical Rating - Activated - Voltage DC | Max 30 Volt |
Mounting Type | Snap In |
Terminals Type | Thru Hole |
Terminals Plating | Lead free silver |
Terminals Complementary Information | THT |
Activation Orientation | Top actuated |
- Connect headsets and phones
- Answer and hang up for telephone
- Various lever designs
HS-2206-A1 Applications
- Telecommunication
- Computer peripherals
- Medical devices
HS-2206-A1 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| HAHS0002 | HS-2206-A1 NS | View More |
