K12BF1.52.5NOD1R

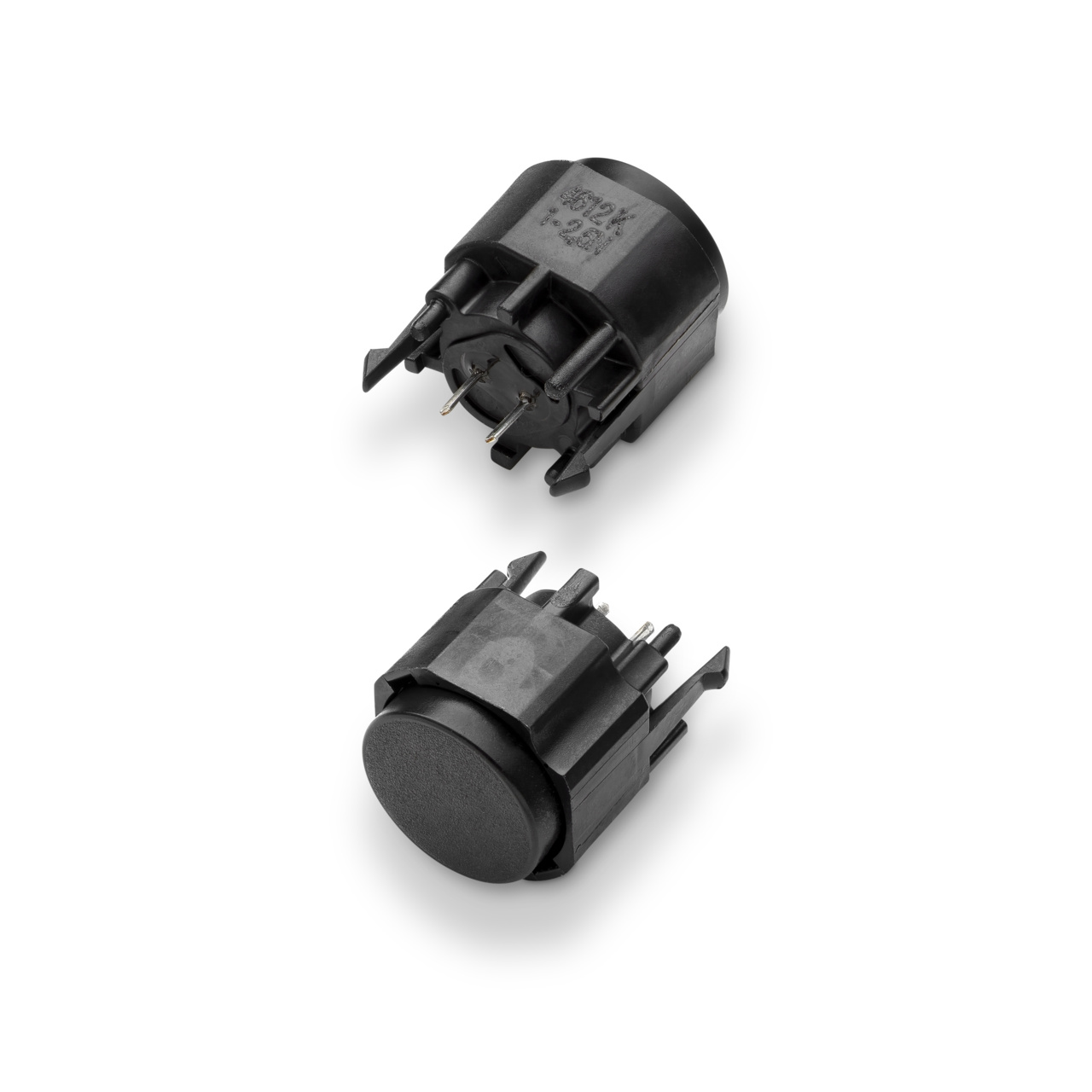

K12BF 1.5 2.5N OD 1R | Series: K12 D
K12 D high performance detect switch is perfect for off-road vehicles, joysticks, industrial electronics, and medical equipment. K12 D is designed for low-level switching and is made to last. It is compliant with the permanent actuation.
| Property | Value |
|---|---|
Circuitry | SPST NC |
Activation Type | Momentary action |
Rating - Minimum Current | 10 mA |
Contact Plating | Gold |
Electrical Height | Min 10.9 mm / Max 11.2 mm |
Mechanical Life Cycles | 1000000 |
Electrical Rating - Released - Voltage | Min 2 Volt / Max 30 Volt |
Ingress Protection | IP 40 |
Terminals Type | Thru Hole |
Terminals Plating | Lead free tin |
Operating Force | Min 1.75 N / Max 3.25 N |
Height | 11.65 |
Activation Orientation | Top actuated |
Washing Process - Compatibility | Not Compatible |
Illumination | Not applicable |
- Overtravel up to 1.4 mm
- Permanent actuation possible
- Designed for low-level switching
K12BF1.52.5NOD1R Applications
- Off-road transportation
- Industrial electronics
- Joysticks
- Medical equipment
