KSC4D3J50SH

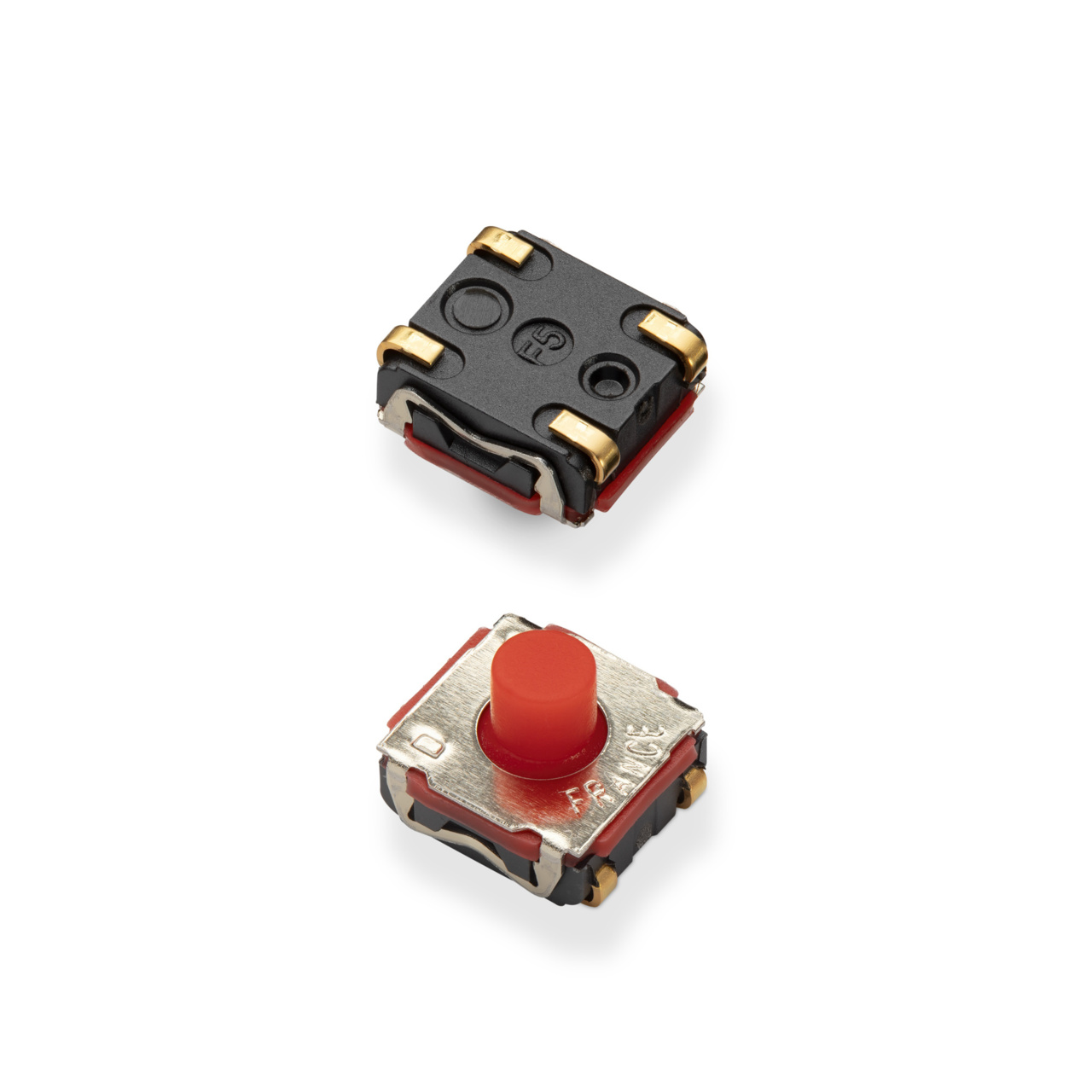

KSC4D3J 50 SH LFG | Series: KSC D
The KSC D series of sealed detect switches for SMT are used by designers in automotive, industrial electronics, computer infrastructure, mobile phone, and IT industries because of the combination of a low profile with a soft actuator in a long-lasting switch. KSC D switches are available with J or G terminations – and are IP67 rated and RoHS compliant.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Minimum Current | 0.1 mA |
Contact Plating | Gold |
Electrical Travel | Min 0.35 mm / Nominal 0.6 mm / Max 0.85 mm |
Mechanical Life Cycles | 500000 |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Ingress Protection | IP 67 |
Terminals Type | Surface mount |
Terminals Plating | Lead free gold |
Terminals Complementary Information | J |
Height | 5.2 |
Activation Orientation | Top actuated |
Washing Process - Compatibility | Yes |
Operating Force | Min 1 N / Nominal 2 N / Max 3 N |
Electrical Height | Min 4.2 mm / Nominal 4.6 mm / Max 5 mm |
Illumination | Not applicable |
- Soft actuator
- J or G terminations
- Tape & reel
- IP67
- RoHS compliant and compatible
KSC4D3J50SH Applications
- Automotive
- Cellular phones
- Industrial electronics
- Computer infrastructure and IT
