KSJ0MD1860SH
KSJ0MD18 60SH LFTR | Series: KSJ D

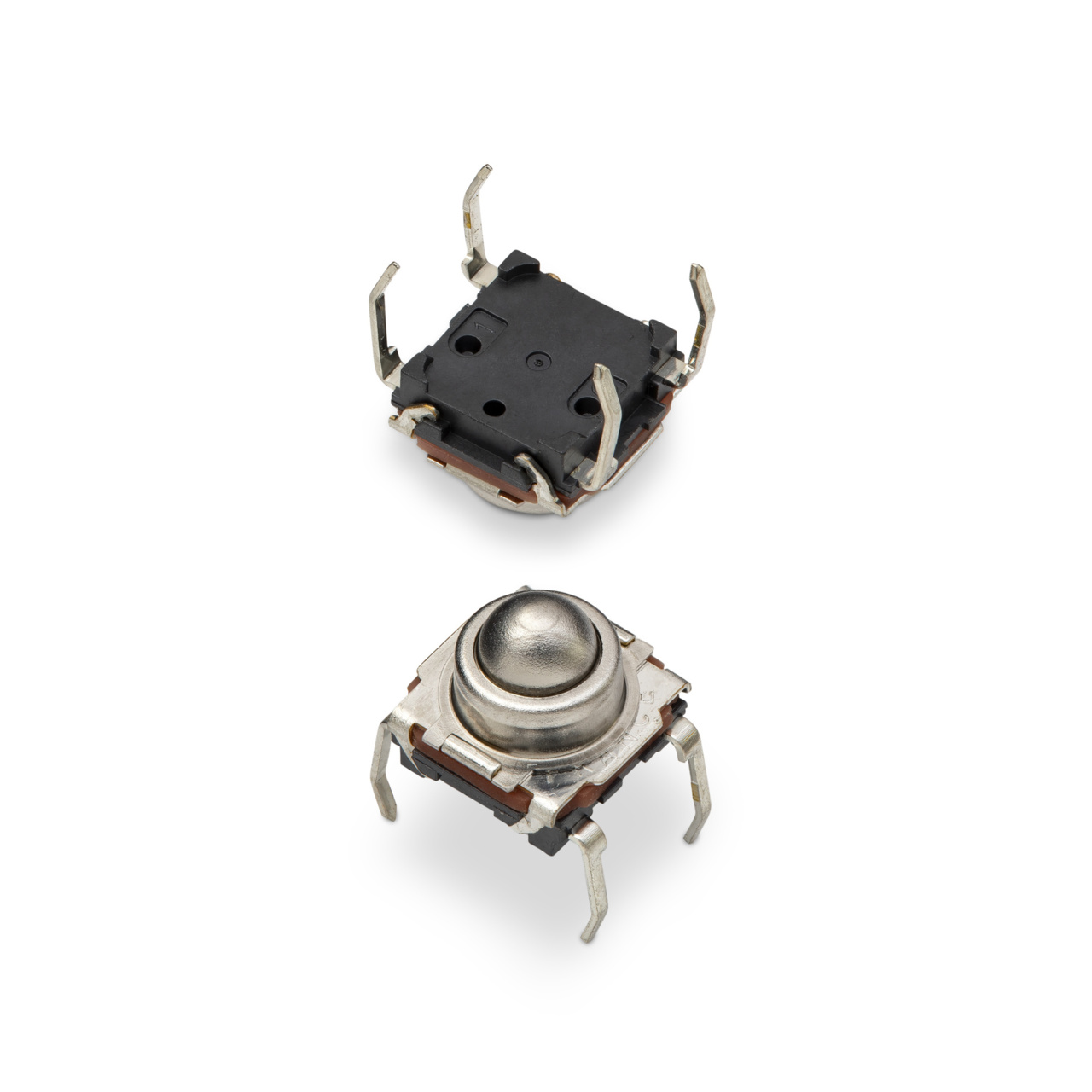

The KSJ D series spherical actuator detect switch is a sealed switch, compliant with the IP60 regulations. Used by designers in the automotive, industrial electronics and computer infrastructure/ IT industries, the spherical actuator of KSJ switches allows actuation of plus or minus 30 degrees. These switches are made for high travel – and are available with either a straight or vertical detect, or top or side actuation, helping them to fit any design.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Contact Plating | Silver |
Electrical Travel | Min 0.2 mm / Nominal 0.48 mm / Max 0.75 mm |
Mechanical Life Cycles | 200000 |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Ingress Protection | IP 60 |
Terminals Type | Thru Hole |
Terminals Plating | Lead free tin |
Terminals Complementary Information | M |
Height | 6.57 |
Activation Orientation | Top actuated |
Washing Process - Compatibility | Not Compatible |
Illumination | Not applicable |
- Straight or vertical detect
- Top or side actuation
- Spherical actuator allows actuation +/- 30˚
- Sealing IP60
- High travel
- Adapted for cam actuation
KSJ0MD1860SH Applications
- Automotive
- Industrial electronics
- Computer infrastructure and IT
