KSU211W

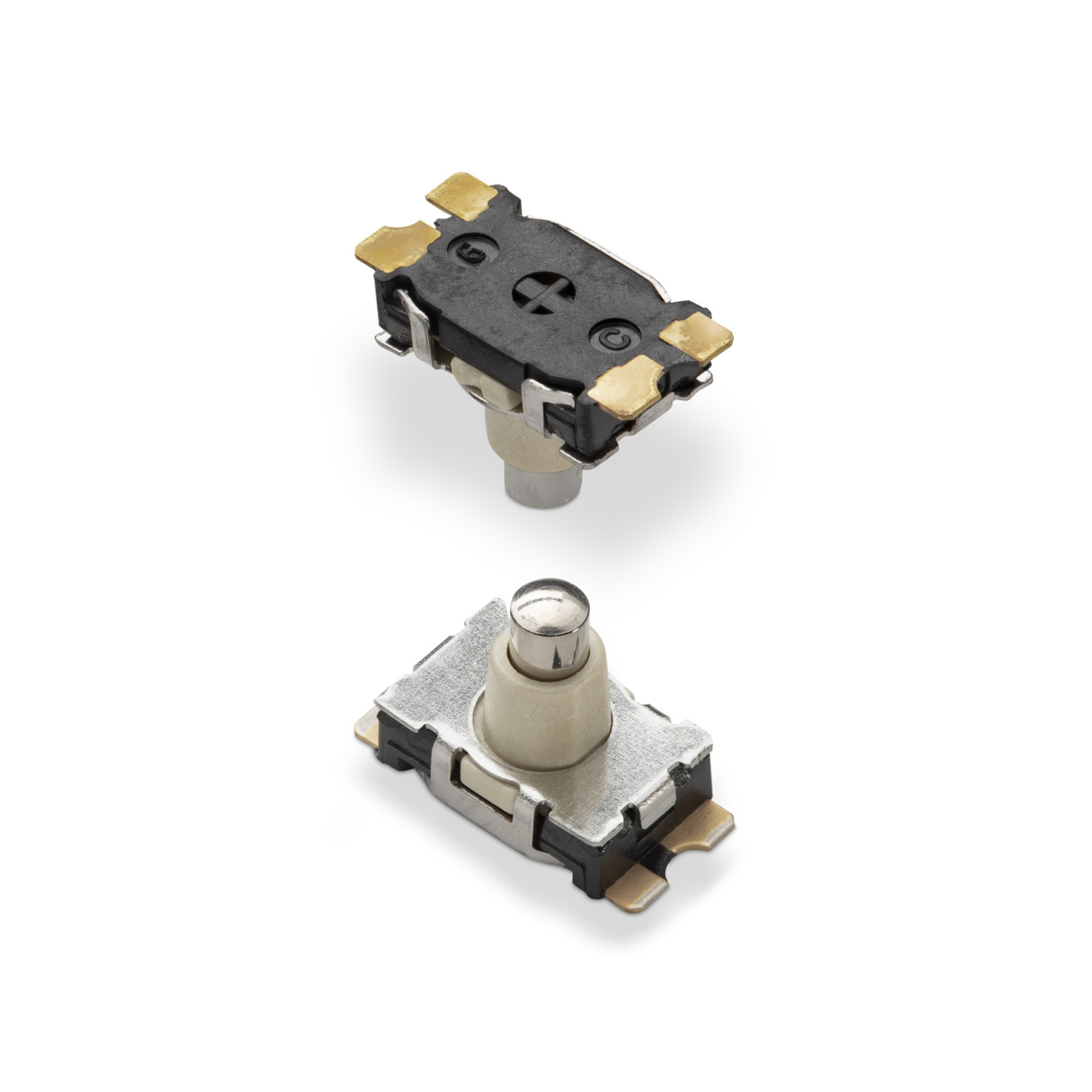

KSU211W LFS | Series: KSU
For engineers designing audio devices, alarms or medical devices, the KSU series micro mini surface mount detect switch is a perfect match. Featuring multi-contact construction, a metal actuator, and low actuating force, the KSU series is high-performance and long lasting – while being tough enough for today’s devices.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Contact Plating | Silver |
Electrical Travel | Min 0.2 mm / Nominal 0.55 mm / Max 0.9 mm |
Mechanical Life Cycles | 100000 |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Ingress Protection | IP 40 |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Operating Force | Min 0.2 N / Max 1.2 N |
Height | 5 |
Activation Orientation | Top actuated |
Washing Process - Compatibility | Not Compatible |
Illumination | Not applicable |
- New multi contact construction
- Metal actuator
- Low actuating force
- RoHS compliant and compatible
KSU211W Applications
- Mobile phones and other handheld devices
- Portable medical devices
- Audio devices
- Alarm devices
- Payment terminals
- Smart meters
KSU211W Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y49A21131FP | KSU211W LFS | View More |
