RB-220-07A R
RB-220-07A R | Series: RB

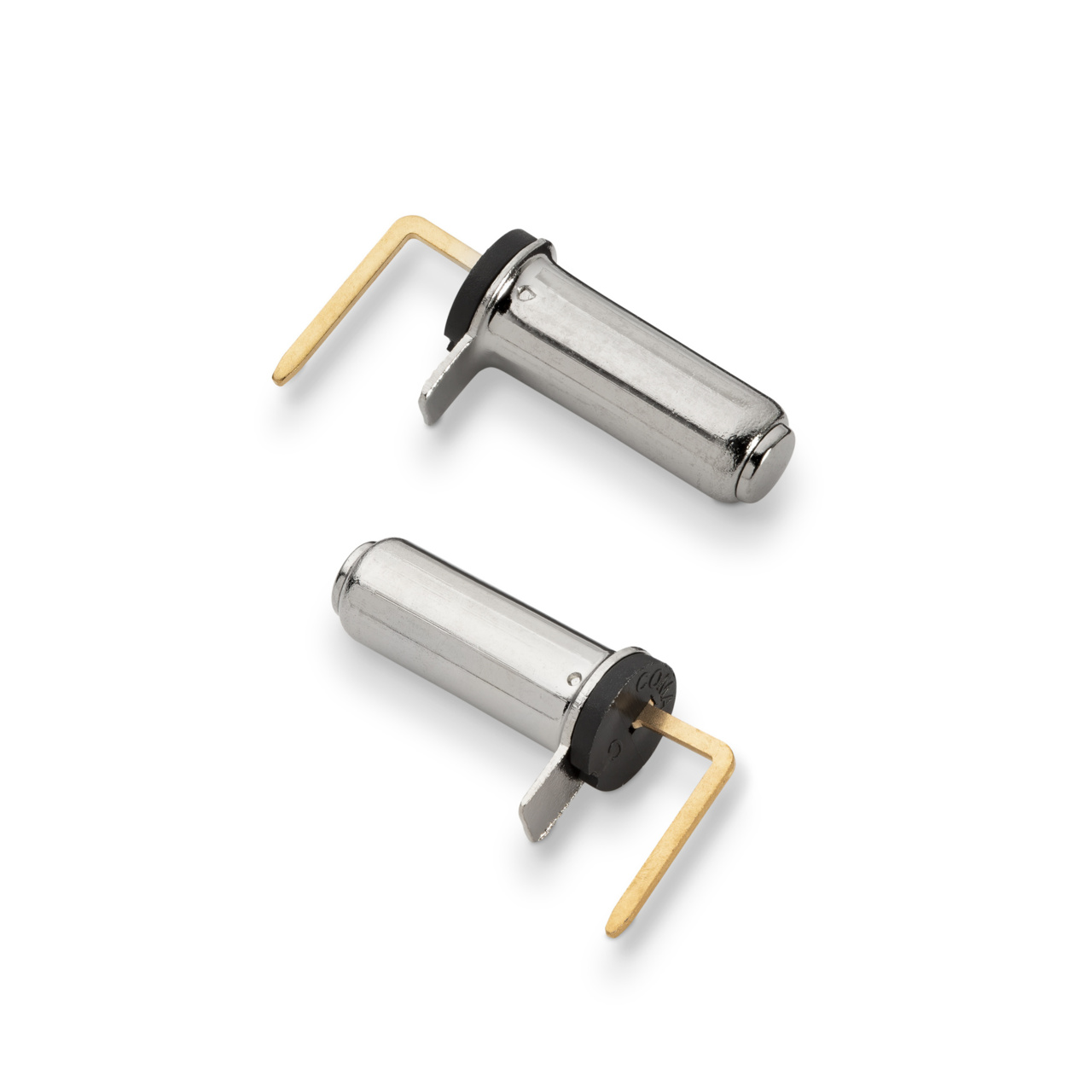

It is critical for household goods, electronic toys, consumer electronics and security controls to be built with long lasting, high quality parts that can be counted on to work every time. The RB series rolling ball sensor switches feature an ultraminiature design and are available with several different angle options to trigger, helping ensure they fit any product.
| Property | Value |
|---|---|
Circuitry | SPDT |
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Contact Plating | Gold |
Electrical Life Cycles | 100000 |
Electrical Rating - Activated - Voltage DC | Min 1 Volt / Max 5 Volt |
Terminals Type | Thru Hole |
Terminals Plating | Gold |
Terminals Complementary Information | THT |
- Different angle options to trigger
- Ultra miniature design
- Patent awarded
RB-220-07A R Applications
- Consumer electronics including irons, portable heaters, games, toys
- Safety and security controls
- Household goods
- Electronic toys
